300Ah lifepo4 battery for solar energy storage in market

According to statistics, the proportion of 280Ah large capacity square cells in the energy savings market has exceeded 80%. It is noteworthy that there are currently over 20types 300Ah energy storage battery cells available on the market.

More notably, in the competitive field of over 500Ah, EVE Lithium Energy has launched 560Ah energy storage cells, while VISION Group has developed 580Ah energy storage cells, demonstrating a strong competitive trend.

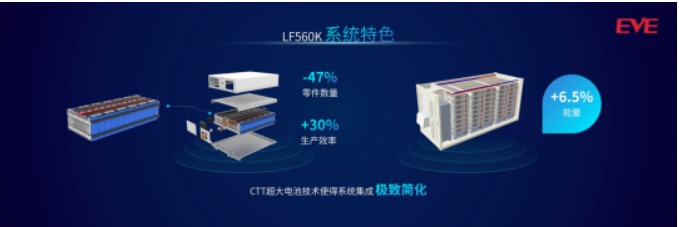

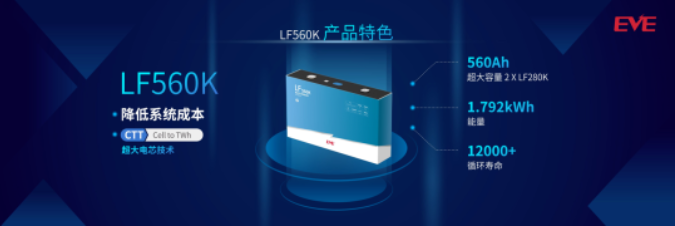

Last year, EVE Energy Storage released a 560Ah energy storage battery - LF560K, with a battery capacity of 560Ah and a single battery energy of 1.792kWh. LF560K is twice the common size of 280Ah square cells, equivalent to two 280Ah cells placed horizontally side by side, with a single cell weight of 10.95kg. Global delivery is expected to begin in Q2 2024.

2.2. VISION Shares 580Ah

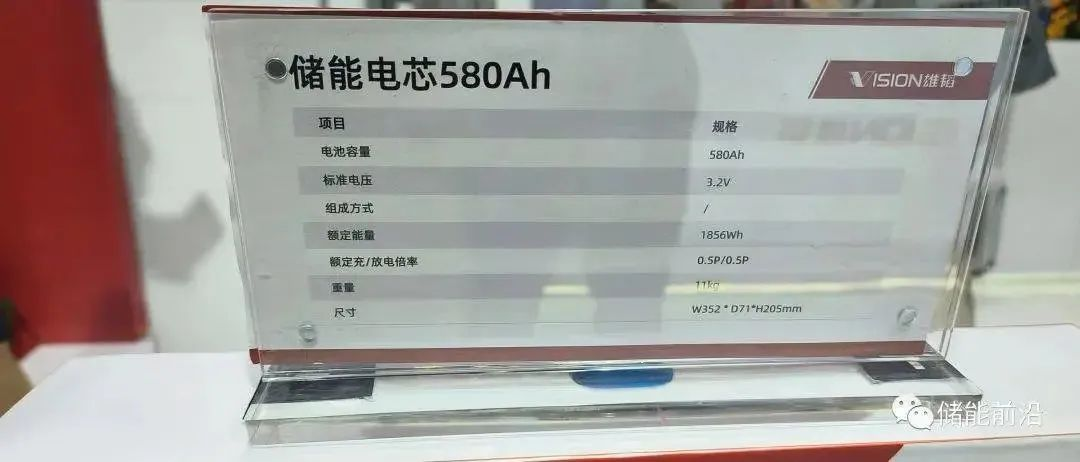

The 580Ah energy storage cell of VISION Group is currently the largest capacity energy storage cell, surpassing the 560Ah cell of EVE Lithium Energy. The single cell has a charged capacity of 1856Wh and a weight of 11Kg. Dimensions W352 * D71 * H205mm.

At present, VISION Group's lithium battery business is the main business direction, and its products are divided into three major sectors: lithium batteries, hydrogen fuel cells, and lead-acid batteries.

In May 2023, 320Ah and 340Ah top energy storage cells were released, both based on the current 72 * 174 size specifications of grid side energy storage cells. They are fully compatible with existing energy storage application scenarios and achieve breakthroughs in volume energy density, safety performance, cycle life, and other aspects. It will officially go on sale in Q2 2023.

It is worth noting that REPT  reached a cooperation agreement with leading American integrator POWIN in April 23, marking that REPT  will supply advanced energy storage battery products of 3GWh to POWIN in the next 12 months.

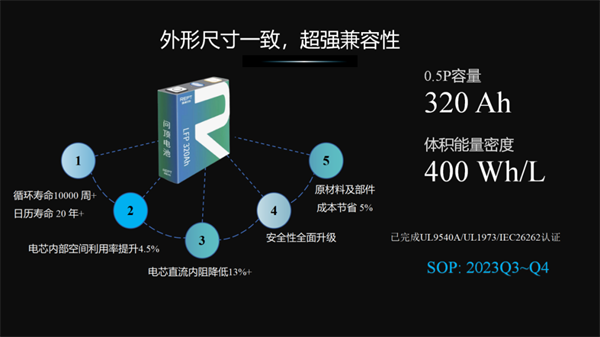

The volume energy density of the 320Ah Wending energy storage battery cell reaches 400Wh/L, with a cycle life of over 10000 times and a calendar life of over 20 years. It saves 5% on raw material and component costs.

The volume energy density of the 340Ah Wending energy storage cell has been upgraded to 430Wh/L, which is at the forefront of the industry in terms of cell capacity, safety performance, energy efficiency, cycle life, calendar life, and other aspects.

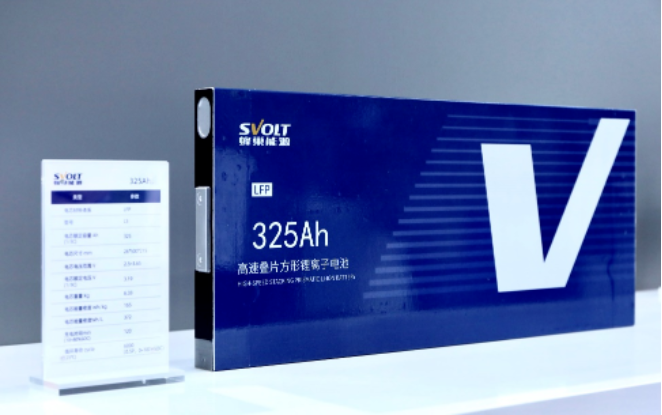

The SVOLT Energy 325Ah short blade stacked energy storage cell adopts flying stack technology, with a long and thin short blade design. The long cycle version has a cycle life of up to 12000 times, significantly improving the safety of the cell compared to traditional VDA energy storage cells. It has passed rigorous puncture and compression tests, does not explode or catch fire, and can achieve intrinsic safety of the cell. It will be mass-produced and delivered in the second half of the year.

The 325Ah stacked short knife energy storage large battery cell has a thickness of only 21mm, which is 2/3 thinner than the 280Ah energy storage battery cell.

The 325Ah stacked short blade L500 energy storage specialized battery cell is the next generation energy storage battery cell manufactured by SVOLT Energy based on the core demand of the energy storage market for safer, longer cycle life, more stable, and more cost-effective products. It relies on the leading battery cell manufacturing process - flying stack technology, and is based on the short blade battery cell structure. This battery cell will be mass-produced on a large scale at the SVOLT Energy Chengdu base in the second half of this year.

5. Great PowerEnergy 320Ah

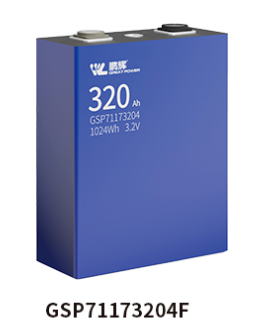

Compared to the previous generation of battery cells, Great Power Energy's 320Ah single cell capacity has increased by 14%. Among products with the same size of 280Ah battery cells (71173), the system energy has increased by 14%, with a cycle life of>8000 times and a service life of over 20 years. At the same time, it performs excellently in low temperature capacity and can meet the requirements of -40 ℃ storage and -30 ℃ discharge.

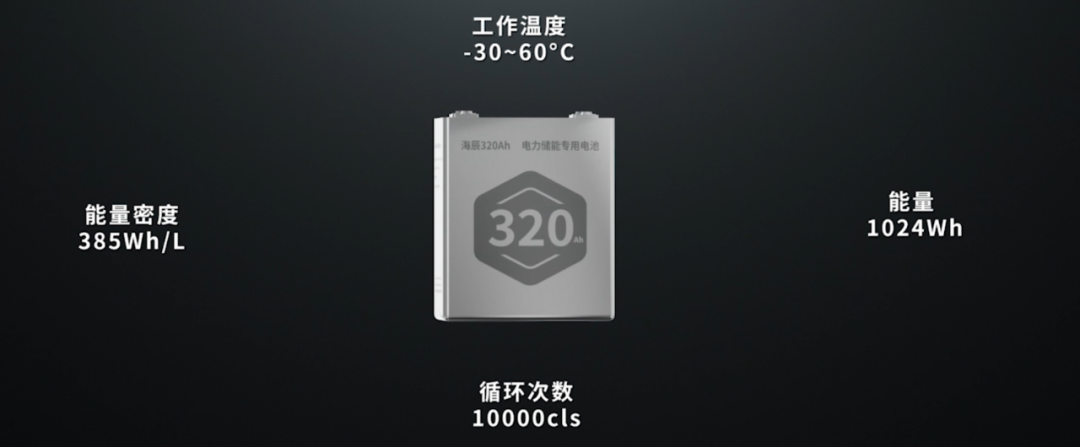

This new product has a volume energy density of 385Wh/L, 10000 cycles, and high compatibility (performance, size, and thermal management compatibility), which can significantly reduce the initial purchase cost and full lifecycle electricity cost of the system.

Through technological innovation, the new generation of 320Ah electric energy storage dedicated batteries are more suitable for the development model of the electric energy storage market in terms of cell cost, system cost, and full box standard configuration.

One of the star products of Hithium Energy Storage, the 300Ah electric energy storage dedicated battery has attracted attention for its excellent safety and reliability. Through unique technological innovation, this battery has maintained "zero" attenuation during the first 1000 charging cycles, with a cycle life of up to 12000 times. This ultra long lifespan not only reduces product costs throughout the entire lifecycle, but also brings significant benefits to customers.

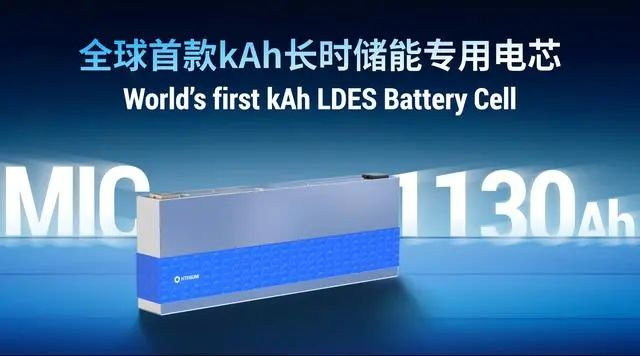

This is a thousand ampere hour ultra large capacity battery specially designed for the long-term energy storage market, aimed at the trend of large-scale development of electric energy storage by Hithium Energy Storage.

The volumetric energy density of MIC1130Ah reaches 400Wh/L, an increase of over 15%, which can help reduce the cost of energy storage DC side systems by 25% (compared to 280Ah products). Simultaneously meeting the needs of ultra large capacity, ultra long lifespan, ultra-high safety, and ultra-low cost for long-term energy storage.

Last year, with a focus on reducing the cost of energy consumption (LCOS), we successfully developed a Trina chip with a long cycle life of 300Ah. In April of this year, we launched a new generation of 306Ah energy storage cells, which, through the collaboration of multiple technologies, further increased the cycle life of the cells to 12000 times.

Relying on its own energy storage battery research and development platform, Trina discovered 97.5% of the password for battery life decay during the self-developed battery cell process. That is, 97.5% of the cyclic decay of the battery cell is irreversible loss, and 97.5% of these losses come from active lithium loss.

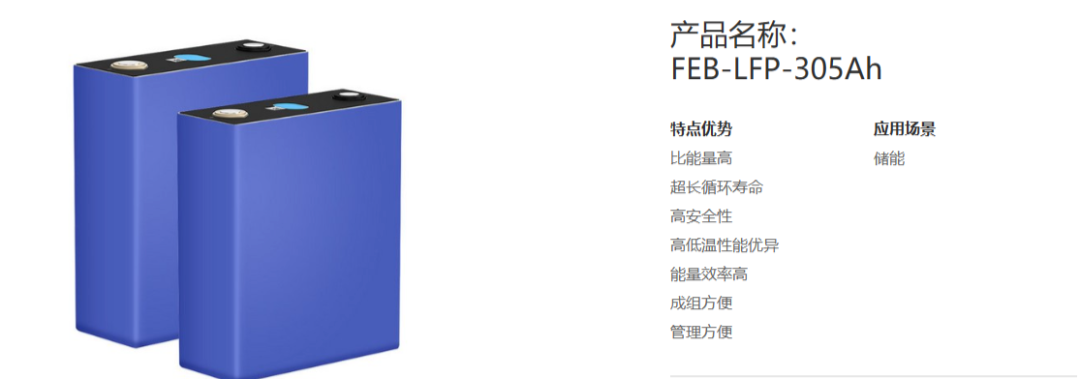

The Far East Battery 305Ah was mass-produced from August to September this year, with a planned production capacity of 5GWh and a main size of 71173. This product uses a composite conductive agent that combines dots, lines, and surfaces, as well as an exclusive self-developed electrolyte formula. With the advantages of long lifespan, low temperature resistance, and high cost-effectiveness, it has a rated capacity of 305Ah, a weight to energy ratio of ≥ 180Wh/kg, a volume to energy ratio of ≥ 383Wh/L, a normal temperature cycle life of 10000 times, and a high temperature cycle of 5000 times. At the same time, it can meet -10 ℃ charging, fully reducing energy consumption for battery heating or environmental temperature control.

As an upgraded version of 280Ah energy storage cells, the 314Ah cells launched by Battero TECH New Energy are expected to be mass-produced by the end of September 2023, using a winding process. The actual capacity can reach about 330Ah, with a size of 71173.

It is revealed that the 314Ah battery cells of Battero TECH New Energy have passed multiple certifications. Battero TECH New Energy plans to build a new 45GWh battery production line and lithium-ion battery cell modules, with an expected annual output value of over 40 billion yuan after reaching production capacity.

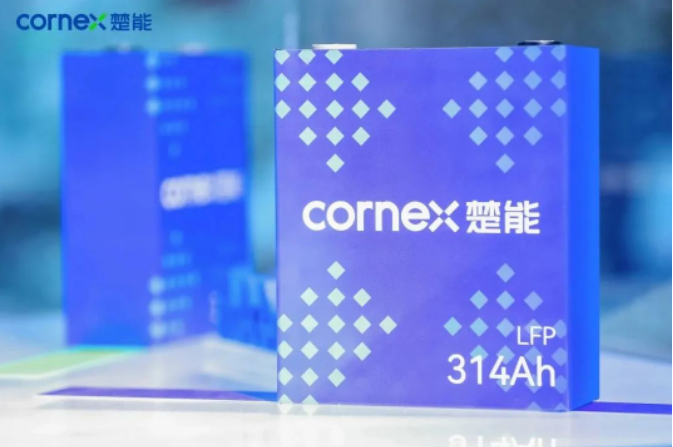

These three energy storage cells are mainly wound and have the same size as 280Ah energy storage cells. CORNEX New Energy has established three major bases in Jiangxia, Yichang, and Xiaogan, Wuhan, and has started construction and production in stages. The total investment in the next few years will exceed 100 billion yuan, of which the fixed assets investment will exceed 50 billion yuan, and the planned total capacity will exceed 400GWh.

Gotion High tech has exhibited 300Ah energy storage battery cells, and currently, the order volume of Gotion High tech's 300Ah battery cells is relatively saturated. The size of Gotion High tech 300Ah energy storage battery cells is the 81 size series, which is different from the 71 size series that is currently popular in the energy storage market. The considerations mainly stem from the insistence on one's own technology, as well as its ability to co wire with 340Ah power cells.

Gotion High Tech stated that the current energy storage market is large enough and it is unlikely that one size can be unified. Gotion High tech will adhere to the 81 size series in the future, and the next generation of energy storage cells will reach at least 330Ah.

The upgraded version of 305Ah has a thickness that is half thinner than the first generation of 305Ah battery cells, and its length has doubled, forming a "long and thin" short knife shape. As of now, the annual production capacity has reached 12GWh, and 4GWh of energy storage projects have been put into operation worldwide.

SUNWADA's 314Ah energy storage battery cells have the same size as the existing 280Ah battery cells 71173 in the energy storage market, with a cycle count of 12000 times. SUNWADA Electric Energy Storage includes air-cooled energy storage systems, liquid cooled energy storage systems, and outdoor cabinets, which are applied in various stages of power generation, transmission, and distribution in the form of containers or outdoor cabinets. The installed capacity of a single system ranges from 170kWh to 6MWh, which can meet different scale scenarios.

Shuangdeng Group's 315Ah energy storage battery cell has achieved over 8000 cycles, and its size is the same as the commonly used 280Ah in the market. Since its establishment in 1990, Shuangdeng Group has been deeply involved in the electrochemical energy storage market for 32 years. Based on lead-acid batteries and lithium-ion batteries, we focus on the development and application of energy storage products and systems.

AESC Power has achieved large-scale production and delivery of 305Ah energy storage cells in the past two years, and recently released 315Ah energy storage cells. On the basis of maintaining the same size, the energy density of the YUANYUAN Power 315Ah product has increased by 11% compared to the previous generation, achieving a "single cell charge" and a cycle life of up to 12000 times, meeting the safe and reliable operation requirements of charging and discharging once a day for 25 years.

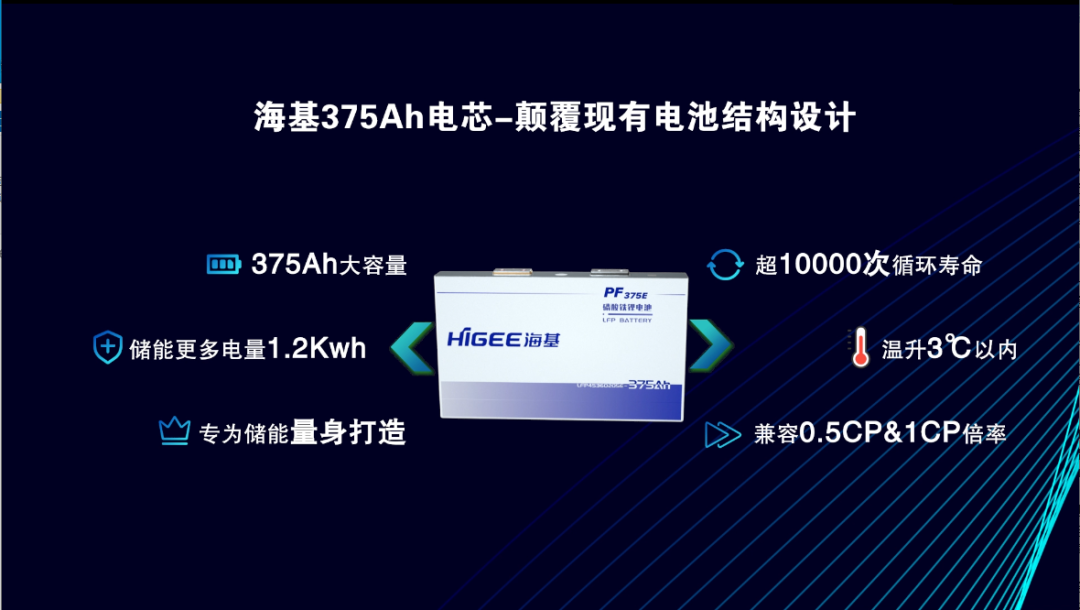

The 375Ah high-capacity energy storage cell launched by HIGEE New Energy, with a large capacity of 1.2kWh and over 10000 long cycles, is compatible with 0.5Cp and 1Cp working rates, effectively reducing total costs.

HIGEE New Energy's new generation 375Ah high-capacity energy storage cell abandons traditional battery structure design and adopts a unique stacked winding process to enhance the battery's flow and thermal conductivity; By utilizing intelligent lithium replenishment technology, the battery cycle life can be effectively extended; Solve the problem of absolute capacity consistency through weighing pairing technology.

*Compared to 280Ah products, 375Ah products:

• The heat dissipation area has been increased by 106%, without the need for liquid cooling design. Traditional forced air cooling can meet the usage needs;
• The number of system components has decreased by 30%;
• Production efficiency has increased by 25%;
• The volume utilization rate has increased by 16.5%, and a 40 foot container can accommodate up to 7MWh

The overall cost is expected to decrease by 9%.

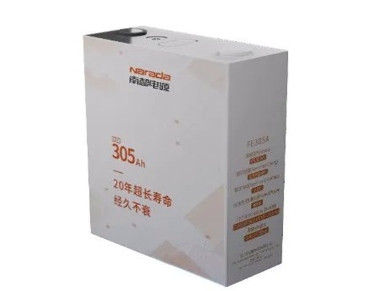

In April, Naradapower launched a 305Ah energy storage dedicated battery. This product has a super long lifespan of 20 years, a volumetric energy density of over 380Wh/L, a cycle life of up to 12000 times, and an energy efficiency of over 95%.

This product has the same size as the existing 280Ah energy storage battery and adopts a unique four roll core stacked design. It will be put into mass production in 2023.

Since 2023, Ganfeng Lithium has implemented four battery projects with a total investment of 35 billion yuan. Its energy storage battery production capacity is planned to reach 23GWh, and 314Ah is expected to be mass-produced in Q4, with dimensions similar to 280Ah energy storage cells.

We plan to invest a total investment of 5 billion yuan in the construction of a new 10GWh lithium battery and energy storage headquarters project in Dongguan City. The project construction includes research and development bases and production lines for lithium iron phosphate, semi-solid battery cells, lightweight power batteries, outdoor portable energy storage power supplies, industrial and commercial energy storage systems, and household energy storage.

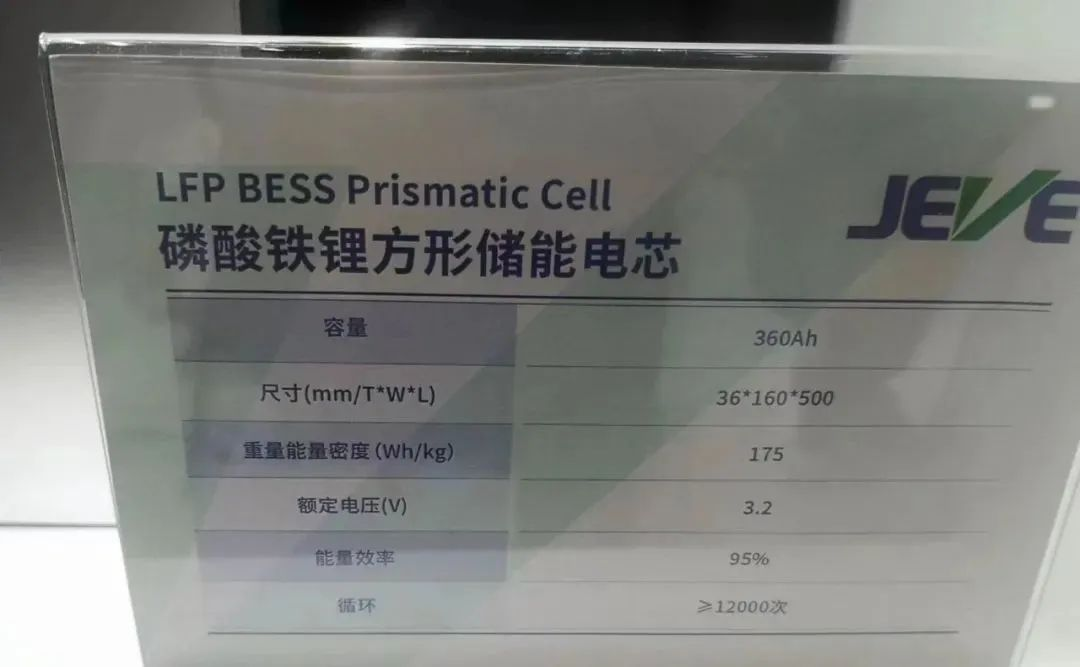

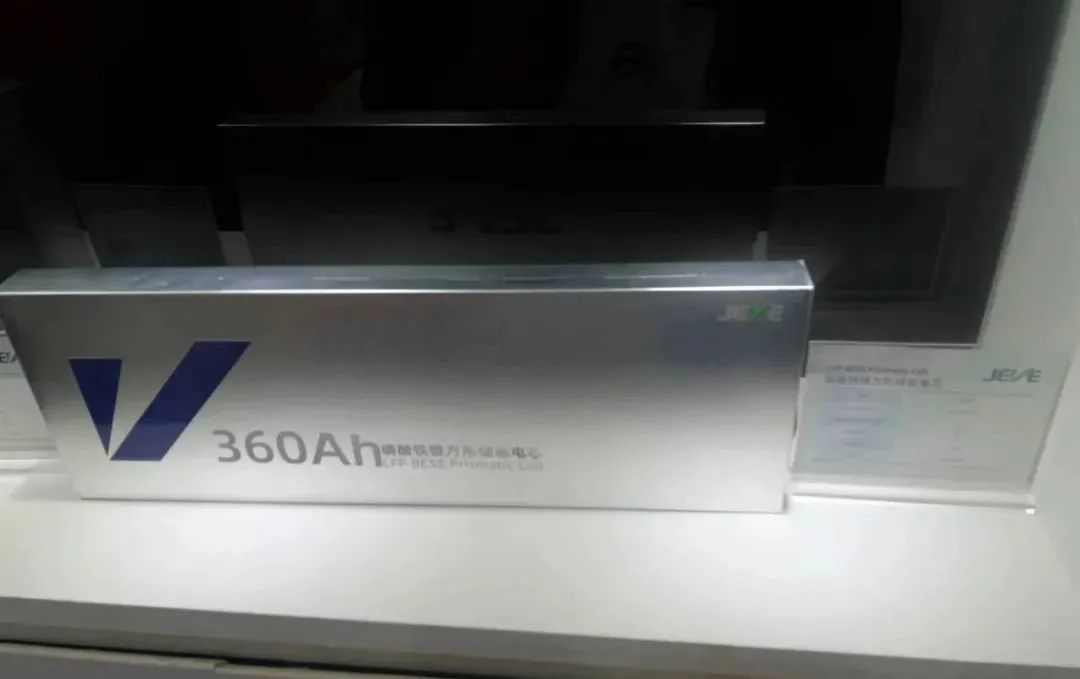

360Ah lithium iron phosphate square energy storage cell with an energy density of 175Wh/kg.
