For over half a century, cylindrical batteries have been the silent workhorse of modern life, powering everything from early transistor radios to today’s electric vehicles (EVs) and renewable energy grids. What began as a simple, compact energy solution has undergone a remarkable technical transformation, driven by demands for higher capacity, faster charging, and greater safety. This evolution is not just about scaling size; it’s a story of material breakthroughs, design innovations, and manufacturing precision that have redefined the limits of cylindrical batteries.
The roots of cylindrical batteries trace back to the 1950s, when alkaline AA and AAA cells dominated consumer electronics. Early designs relied on basic chemistry—zinc-carbon or alkaline—and prioritized portability over performance. A typical 1980s alkaline AA battery, for example, offered just 2-3 Wh of energy and a lifespan of a few months in low-drain devices like remote controls. Safety was minimal; crude casings and simple separators made leakage a common issue. Back then, cylindrical batteries were seen as “disposable conveniences,” not long-term energy solutions.
The first seismic shift came in the 1990s with the rise of lithium-ion (Li-ion) technology. Sony’s 18650 cell—named for its 18mm diameter and 65mm length—revolutionized the industry. Unlike alkaline cells, Li-ion cylindrical batteries used lithium cobalt oxide (LCO) cathodes and graphite anodes, delivering 8-10 Wh of energy (3-4x more than an alkaline AA) and, crucially, rechargeability. This made them ideal for laptops and early smartphones, where compact size and repeated use were critical. The 18650 also introduced key safety features: a steel casing to prevent rupture and a pressure relief valve to release gas during overheating. For the first time, cylindrical batteries evolved from “disposable” to “durable,” becoming central to portable tech.

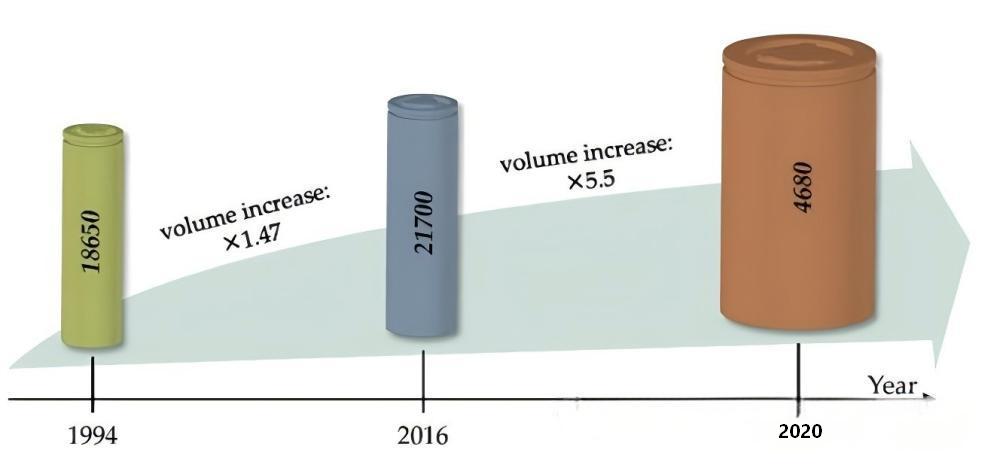

By the 2010s, the demand for EVs and grid storage pushed cylindrical battery technology even further, spurring the next big leap: form factor and chemistry upgrades. The 21700 cell (21mm diameter, 70mm length) emerged as a successor to the 18650, offering 15-20 Wh of energy—nearly double the 18650’s capacity—while maintaining compatibility with automated manufacturing lines. Tesla’s adoption of the 21700 in its Model 3 marked a turning point: cylindrical batteries were no longer just for small devices but for power-hungry applications that required thousands of cells working in tandem.
Chemistry also evolved beyond LCO. Manufacturers adopted nickel-cobalt-aluminum (NCA) and nickel-cobalt-manganese (NCM) cathodes, which boosted energy density by 20-30% compared to early LCO. Anodes saw innovations too—silicon-graphite blends began to replace pure graphite, allowing cells to store more lithium ions without expanding excessively. These changes turned the 21700 into a workhorse for EVs: a single Tesla Model 3 uses over 2,900 21700 cells to deliver a 358-mile range, a feat unimaginable with 1990s Li-ion tech.
Today, the latest frontier in cylindrical battery tech is safety, fast charging, and sustainability. Newer cells (like the 4680 format, 46mm diameter, 80mm length) integrate “tabless” designs, which eliminate the small metal tabs that connect electrodes to the cell’s top. This reduces internal resistance, enabling faster charging—0-80% in 15-20 minutes for EVs—and lower heat generation. Safety has also improved: advanced separators (made from ceramic-coated polymers) prevent short circuits, while sophisticated thermal management systems in battery packs keep cells cool during high-demand use.
Sustainability is another key focus. Manufacturers are increasingly using recycled cobalt and nickel in cathodes, cutting reliance on virgin materials. The standardized steel casings of cylindrical batteries are also easier to recycle than those of pouch or prismatic designs, as they can be efficiently disassembled to recover valuable metals. Some companies even offer “second-life” programs, repurposing used EV cylindrical cells for stationary storage (like powering homes with solar energy), extending their lifespan beyond a vehicle’s typical service.
From alkaline AA cells to 4680 EV powerhouses, cylindrical batteries have come a long way—driven by a relentless pursuit of more power, safety, and sustainability. As the world shifts to renewable energy and EVs, their role will only grow: they are no longer just a component, but a cornerstone of the clean energy future. The next decade promises even more innovations—solid-state electrolytes, higher-silicon anodes—and with them, cylindrical batteries will continue to evolve, proving that sometimes the most enduring technologies are the ones that keep changing.
