The demand for robust, scalable energy storage solutions has never been greater, particularly in the residential and light commercial sectors. Among the various configurations available, the 16S1P 668Ah 34kWh battery pack, built with LiFePO4 (LFP) chemistry, is emerging as a standout option for its combination of high capacity, safety, and modularity. This article provides a comprehensive technical overview of this battery configuration, its key specifications, and its primary applications.
Technical Architecture and Core Specifications
The "16S1P" designation describes the internal electrical configuration of the battery pack. It signifies a series-parallel arrangement where16 cells are connected in series (16S) and 1 cell is connected in parallel (1P). For a LiFePO4 battery, each cell has a nominal voltage of 3.2V. Connecting 16 of these cells in series sums their voltages, yielding anominal pack voltage of 51.2V(16 cells × 3.2V = 51.2V). This nominal voltage makes it a perfect fit for "48V" systems that are common in solar inverters and off-grid power setups.
The "668Ah" rating refers to the cell's capacity in ampere-hours. When configured as 1P (a single parallel string), the pack's total capacity remains 668Ah. The total stored energy is calculated by multiplying the nominal voltage by the capacity:
51.2V × 668Ah = 34,201.6Wh, or approximately 34kWh.This substantial energy reserve is enough to power an average home for a full day or more, depending on consumption patterns.
Key Features and Design Advantages
1. High Energy Capacity and Scalability
The primary advantage of this battery pack is its large single-unit capacity of 34kWh. This is achieved by using large-format, high-capacity prismatic LFP cells, specifically the 668Ah variant. Furthermore, the system is designed for excellent scalability. It supports connecting up to 15 units in parallel, allowing for a massive total energy storage capacity of up to512kWh. This makes it suitable for everything from a single-family home to a small commercial building or a remote off-grid station requiring significant backup power.
2. Uncompromising Safety and Longevity (LiFePO4)
The use of LiFePO4 chemistry provides a cornerstone of safety and durability. LFP batteries are renowned for their excellent thermal and chemical stability, significantly reducing the risk of thermal runaway compared to other lithium-ion chemistries. This pack is advertised to use Grade A, brand-new prismatic LFP cells, which undergo rigorous testing for capacity, internal resistance, and voltage to ensure cell matching and long-term performance. The expected cycle life is impressive, typically exceeding 4000 cycles at 80% Depth of Discharge (DOD), which translates to many years of reliable service.
3. Intelligent Battery Management System (BMS)
A sophisticated BMS is integral to the safety and efficiency of this battery pack. It typically features a300A continuous current rating and includes a 300A circuit breakerfor protection. The BMS provides comprehensive protection against over-charge, over-discharge, over-current, short circuits, and temperature extremes. Modern packs in this class often integrateWiFi and Bluetooth connectivity, allowing users to monitor real-time system status, configure parameters, and receive alerts directly from their smartphones. The BMS also facilitates communication with a wide range of popular hybrid inverters from brands likeGrowatt, DEYE, and Victronvia standard protocols such as CAN bus and RS485.

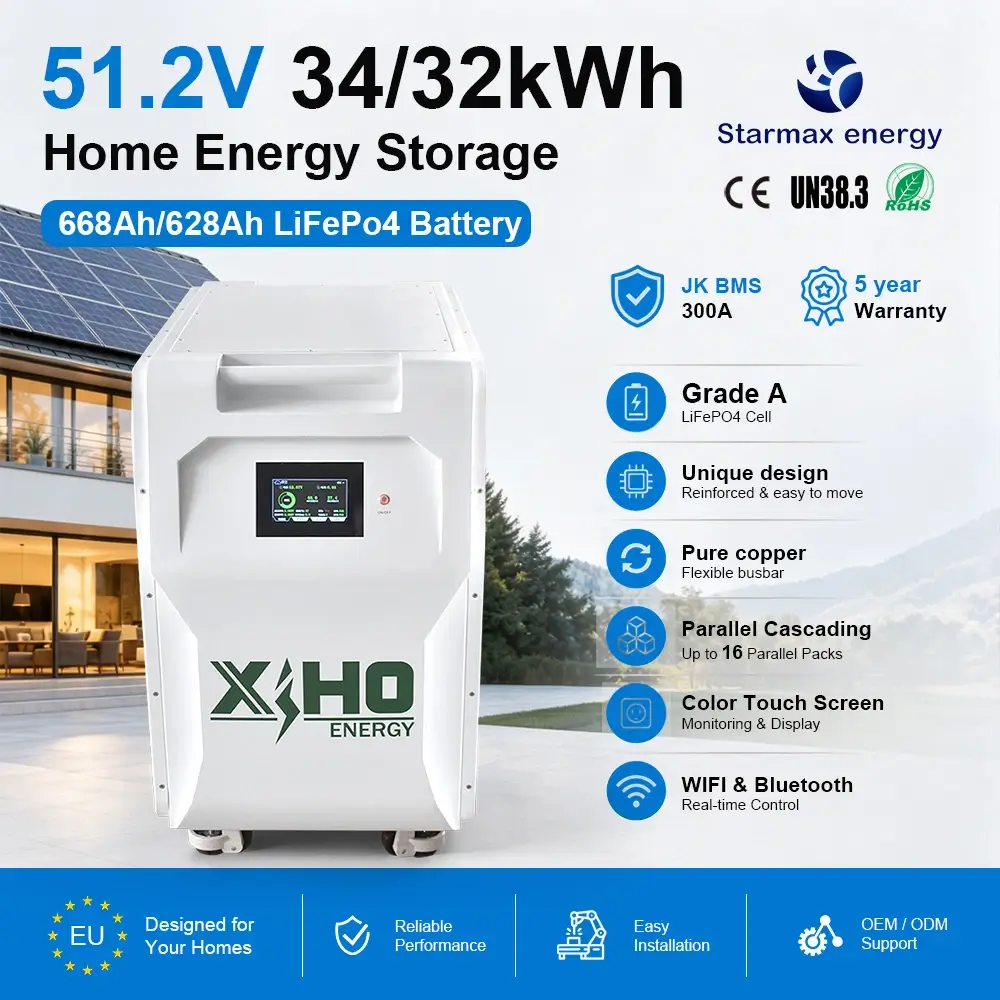

4. Robust and Compact Form Factor
Despite its large capacity, the battery pack is designed with acompact, vertical, and floor-standing form factorto optimize space. A typical unit measures approximately795mm in height, 450mm in width, and 757mm in depth, with a shipping weight of around 254kg. This plug-and-play design simplifies installation, making it accessible for both professional integrators and experienced DIY enthusiasts.
Key Specifications Summary
|
Specification
|
Value
|
|
Configuration
|
16S1P
|
|
Cell Chemistry
|
LiFePO4 (LFP), Grade A, 668Ah Cells
|
|
Nominal Voltage
|
51.2V
|
|
Nominal Capacity
|
668Ah
|
|
Total Energy
|
~34kWh
|
|
Max. Discharge Current
|
300A (Continuous)
|
|
Max. Charge Current
|
150A (Continuous)
|
|
Cycle Life
|
>4000 cycles @ 80% DOD
|
|
Communication
|
CAN, RS485, RS232, WiFi/Bluetooth
|
|
IP Rating
|
IP65 (Weather Resistant)
|

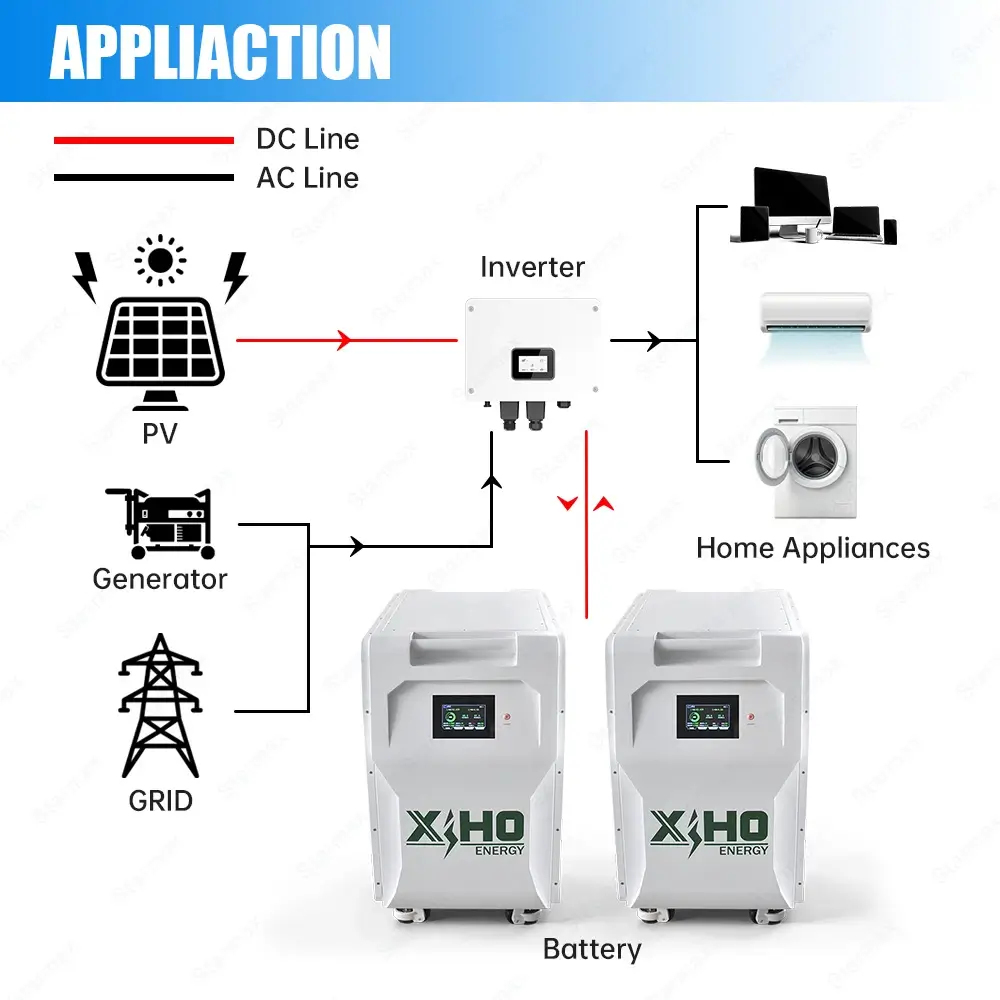

Primary Applications
The 16S1P 668Ah 34kWh battery pack is designed for applications where high energy capacity, scalability, and safety are paramount.
Residential Solar Energy Storage:This is the most prominent application. The battery allows homeowners to store excess solar energy generated during the day for use during peak rate hours or at night, maximizing energy independence and savings.
Off-Grid Power Systems:Its 34kWh capacity makes it an excellent foundation for off-grid cabins, farms, and remote telecommunications stations. Its expandability (up to 512kWh) ensures the system can grow with the user's needs.
Small Business and Workshop Backup Power:For small businesses susceptible to power interruptions, this battery pack acts as a robust Uninterruptible Power Supply (UPS), ensuring business continuity and protecting critical equipment.
Conclusion
The 16S1P 668Ah 34kWh LiFePO4 battery pack represents a significant advancement in accessible energy storage. By combining a high-energy-capacity 51.2V system with the intrinsic safety and longevity of LFP chemistry, it offers a reliable, scalable, and intelligent solution for modern energy needs. Its integration with leading hybrid inverters and user-friendly monitoring capabilities positions it as a leading choice for those seeking to harness and store renewable energy efficiently and safely.
