63.9Kwh CATL 4S1P 180AH NMC Battery Module Lithium Ion Electric Car Ev Battery Module

Desciption

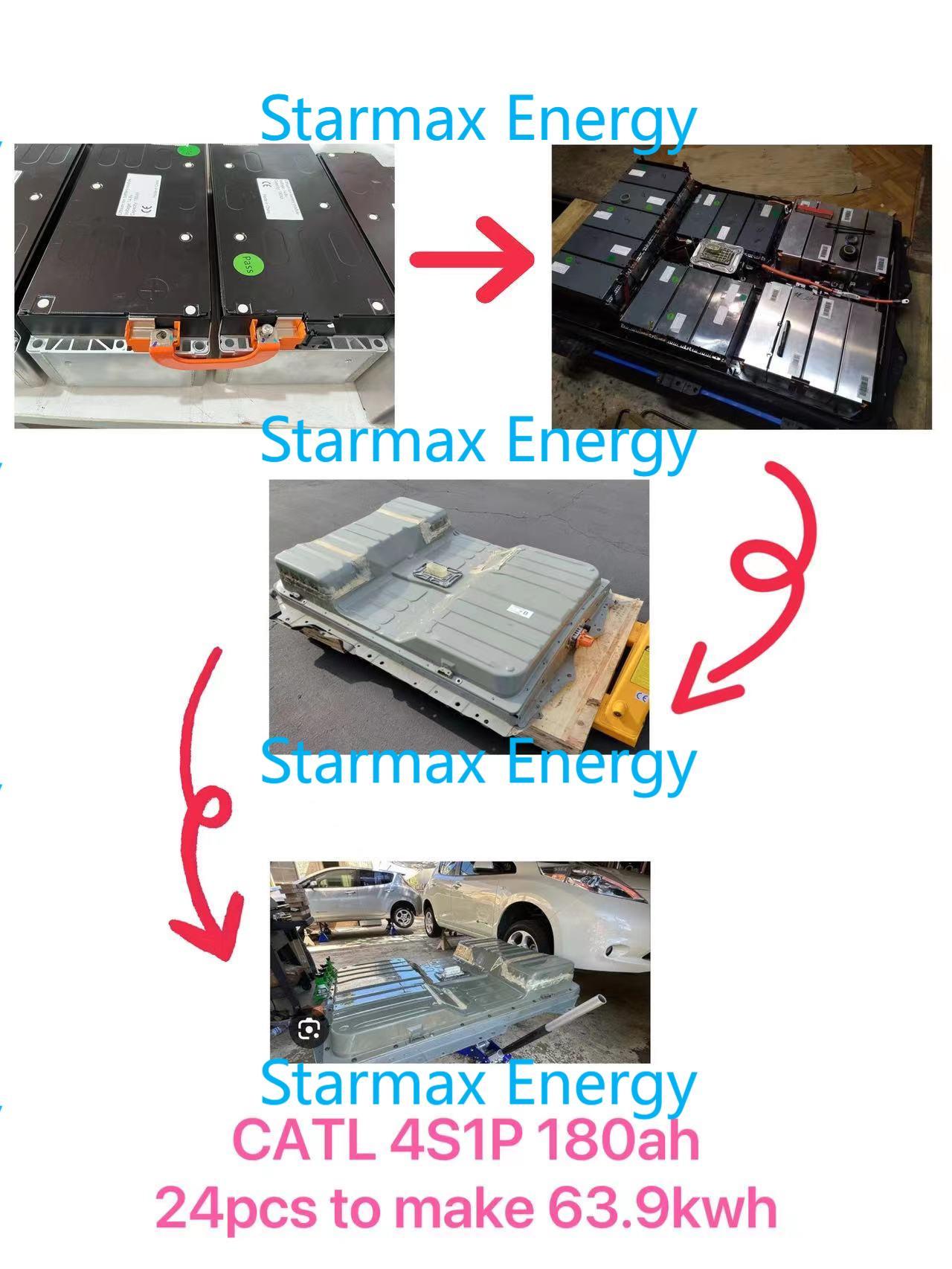

CATL 4S1P 14.8V 180Ah NMC Module, 24pcs to make 355V 64kW electric car batteries pack
Brand New Grade A lithium ion battery module
Factory directly sell with high quality

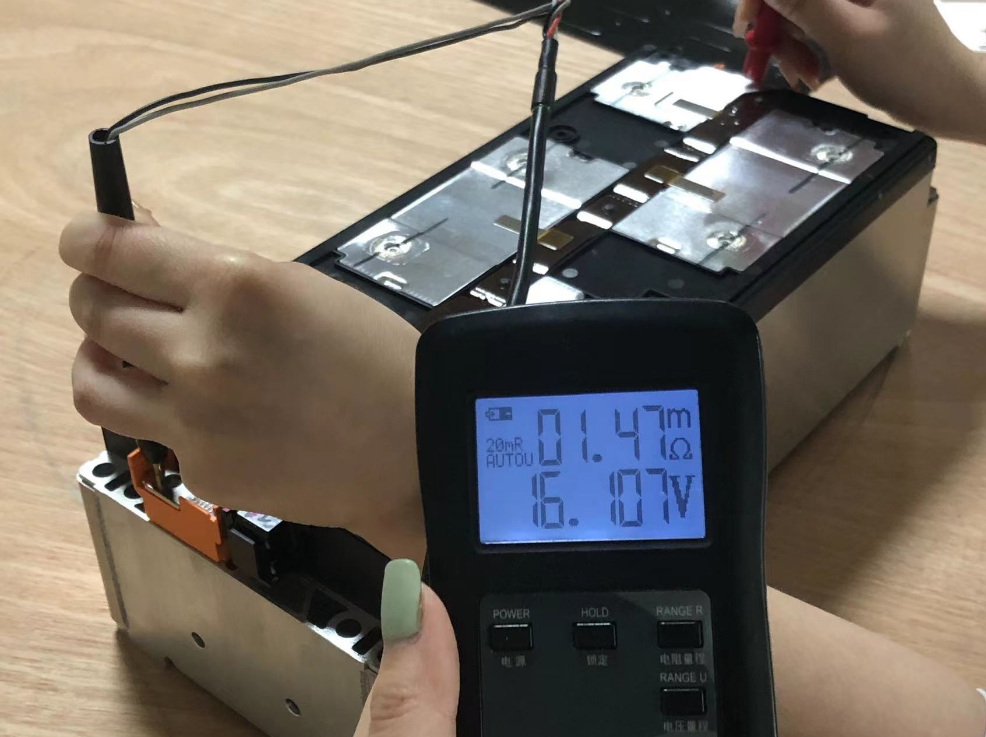

100% testing with voltage, internal resistance, isolation testing and capacity testing

Product Type:

Product Name: Lithium ion battery module

Technical Parameters:

Battery Type	NMC Lithium ion rechargeable battery
Nominal Voltage	14.8V
Nominal Capacity	180Ah
Cell Inside	CATL 3.7V 180Ah NMC cell
Configuration	4S1P
Charge Voltage	16.8V
Discharge Cut-off Voltage	11V
Max Charge Current	1C
Max Discharge Current	3C
Charge Temperature	0-45℃
Discharge Temperature	-20~55℃
Storage Temperature	-20~35℃
Cycle Life	≥1500 Times (80% of initial capacity at 0.2C rate, IEC Standard)

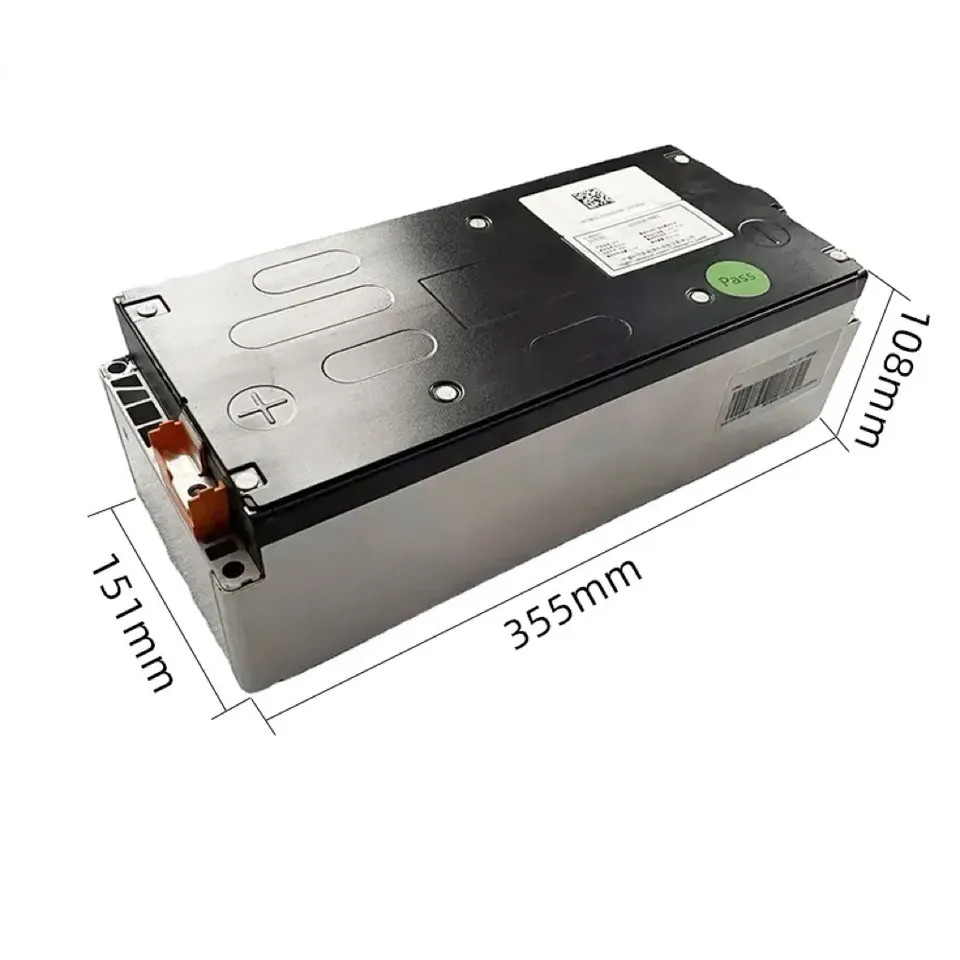

Battery Size	352150108mm
Battery Weight	11.8kg

Cautions of Battery Operation:
1.Please read the instructions carefully and pay attention to the marks on the surface of battery before use.
2.During operation, please keep the cell away from heat source, fire source. Never beat, drop or shock the cell.
3.Do not directly solder the cell or pierce it with a nail or other sharp object.
4.Do not turn over battery. Keep it from strike, throw, tread or bending.
5.Do not make battery short-circuited, in order to avoid from danger incurring or battery damage.
6.Discarded battery should be well disposed. Do not throw it into the fire or water.

FAQ:

Q1.Do you have any MOQ limit for lithium battery?
A: No MOQ.
Q2. Are the batteries come with bus bars+bolts?
A: Yes, it comes with. We can Laser weld screw stud or nut stud per your needs. Normally, one battery will come with 1pc busbar and 2pcs bolts.
Q3.Do you have the used batteries?
A: Sorry, no, our batteries are all brand new.
Q4. How to proceed an order for lithium ion battery?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5. Can we sign a secrecy agreement if we wanna build a long-term business relationship?
A: Sure, we respect clients requirements, will bring more benefit to you.
Q6:Which shipping method you usually take?
A: Train/Sea DDP, Express, We can also ship with your own shipping agent.
Q7: How do I know whether you've shipped my order or not?
A: Tracking No.will be offered as soon as your order be shipped out. Before that, our sales will be there to check the packing status, photo of the order and let you know the detail shipment information.
