If you've just upgraded to a 100Ah LiFePO4 battery, you probably know the benefits: they are lighter, last longer, and are more efficient than lead-acid. But one question comes up constantly: "How long will it take to charge?" The short answer? It depends entirely on your charger's amperage.
In general, charging a 100Ah LiFePO4 battery takes between 2 to 5 hours using a standard lithium charger.
Fast Charge (50A): Approx. 2 hours
Standard Charge (20A): Approx. 5 hours
Slow Charge (10A): Approx. 10 hours
However, "theoretical math" rarely matches reality. In this guide, we'll break down the exact formula, provide a cheat sheet for common charger sizes, and explain why the last 1% takes longer than you think.
To get a rough estimate, you can use the basic charging formula. This is perfect for "napkin math" when you are planning your solar system or RV setup.
For a 100Ah battery, here is how the numbers look:
10 Amp Charger: 100Ah / 10A = 10 Hours
20 Amp Charger: 100Ah / 20A = 5 Hours
50 Amp Charger: 100Ah / 50A = 2 Hours
The "Real-World" Factor: Efficiency
In reality, no system is 100% efficient. While LiFePO4 batteries are incredibly efficient (about 95-98%), there is still some energy loss. To get a more accurate number, we divide by an efficiency factor of roughly 0.95.
Real Time ≈ (Battery Capacity / Charger Output) / 0.95
20A Charger (Real World): 5 hours / 0.95 ≈ 5.26 Hours
Cheat Sheet: Charging Time by Charger Size
Don't want to do the math? Here is a quick reference table for a 100Ah LiFePO4 battery (assuming 0% to 100% charge):
Charger Size (Amps) | Charging Speed | Estimated Time (0-100%) | Best For... |
|---|---|---|---|
5 Amps | Very Slow | 20+ Hours | Maintainer / Trickle Charge |
10 Amps | Slow | 10-11 Hours | Small Solar Setups / Backup |
20 Amps | Ideal (Sweet Spot) | 5-5.5 Hours | Overnight Charging / Frequent Use |
30 Amps | Fast | 3.5-4 Hours | Trolling Motors / Day Trips |
50 Amps | Very Fast | 2-2.5 Hours | Rapid Turnaround |

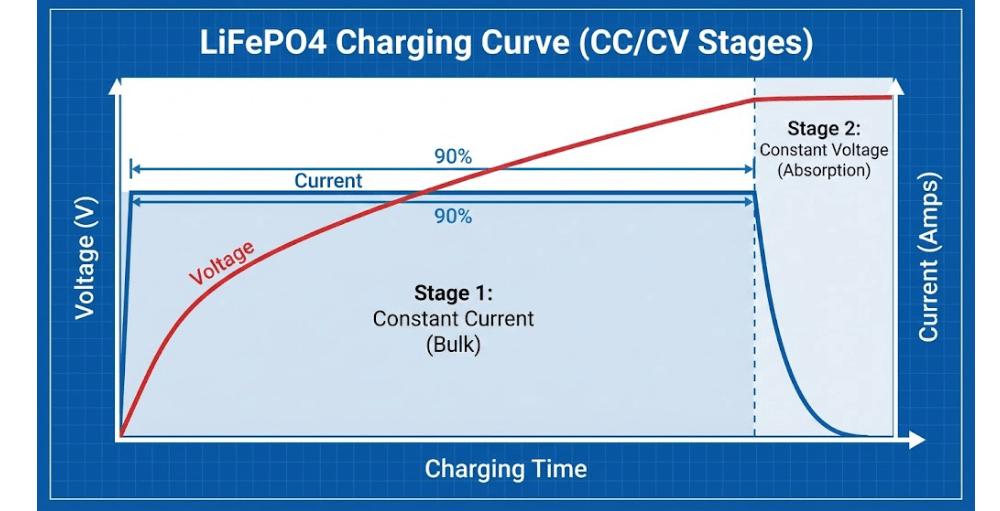

You might notice that your battery charges quickly to 90% or 95% and then seems to stall. This is normal and is due to the LiFePO4 Charging Curve. Unlike a light switch, charging happens in two distinct stages:
What happens: The charger pours current (Amps) into the battery at the maximum rated speed. Voltage rises steadily.
Time: This accounts for about 90-95% of the total charging time.
Speed: Fast.
What happens: Once the battery reaches roughly 14.4V (for a 12V battery), the charger switches modes. It holds the voltage steady but slowly reduces the current (Amps) to top off the cells without overcharging.
Time: This is the final 15-30 minutes.
Speed: Slows down drastically as it reaches 100%.
This is why a 50A charger doesn't charge exactly 5x faster than a 10A charger—everyone has to slow down for the final "parking" stage.
Even with a powerful charger, these external factors can add time to the clock:
Temperature
LiFePO4 batteries love room temperature.
①Cold (<32°F / 0°C): Most high-quality BMS (Battery Management Systems) will cut off charging completely to prevent permanent damage. You cannot charge a frozen lithium battery unless it has a self-heating function.
②Heat (>113°F / 45°C): The BMS may throttle the charging speed to prevent overheating.
The BMS Limit
Just because you have a 100A charger doesn't mean your battery can take it. Check your battery's BMS datasheet for the Maximum Continuous Charge Current (often 50A or 100A).
①Warning: Pushing 100A into a battery with a 50A BMS will cause the battery to shut down immediately for protection.
Wire Gauge
Using thin wires for high-current charging creates resistance (voltage drop). This tricks the charger into thinking the battery is full sooner than it actually is, causing it to switch to the slow "Absorption" phase too early, which extends total charging time.
Q: Can I charge a 100Ah LiFePO4 battery in 1 hour?
A: Theoretically, yes, if the battery BMS supports a 1C (100 Amp) charge rate and you have a 100A charger. However, we strictly advise against this for daily use. Regular 1C charging generates excessive heat and can shorten the lifespan of your battery cells.
Q: Can I use my old lead-acid charger?
A: In a pinch, maybe, but not recommended. Lead-acid chargers often have a "desulfation" or "equalization" mode that pulses high voltage (15V+), which can permanently damage LiFePO4 cells. Always use a dedicated Lithium (LiFePO4) charger or a charger with a "Lithium Mode."
Q: What size solar panel do I need to charge 100Ah?
A: To charge a 100Ah battery in one sunny day (5 peak sun hours), you typically need 200W to 300W of solar panels.
Calculation: 200W Panels x 5 Hours = 1000Wh (approx. 80Ah).
For most users, planning for a 5-hour charge time (using a 20A charger) is the best practice. It's fast enough to be convenient but gentle enough to ensure your 100Ah LiFePO4 battery lasts for its rated 4000+ cycles.
