In-Depth Analysis of Sodium-Ion Battery Technology

By HY-Nate December 5th, 2025 525 views

Amidst the grand transition of the global energy system towards a renewable energy-led paradigm, battery energy storage is evolving from a supplementary "regulator" for the grid to the core "ballast" ensuring system stability and flexibility. According to predictions by the International Renewable Energy Agency (IRENA), to meet the 1.5°C temperature control target, global installed battery storage capacity must surge from 17 GW in 2020 to 4,100 GW by 2050, indicating a vast market potential.

In this process, Sodium-Ion Batteries (SIBs) are transforming from an "alternative option" to Lithium-Ion Batteries (LIBs) into a "complementary mainstay" in critical scenarios, leveraging their unique advantages. However, investment comes with risks. Key challenges include potential mismatches in hard carbon anode production capacity, a lack of complete technical standardization, and uncertainties in future market demand.

This analysis provides deep insights for power industry investors, aiming to reveal the strategic position and commercial value of SIBs in the energy transition. The core thesis is that SIBs are not a comprehensive replacement for LIBs, but rather a "cost and safety stabilizer" possessing structural advantages in specific market segments.

PART 01

Energy Transition and Energy Storage Demand Background

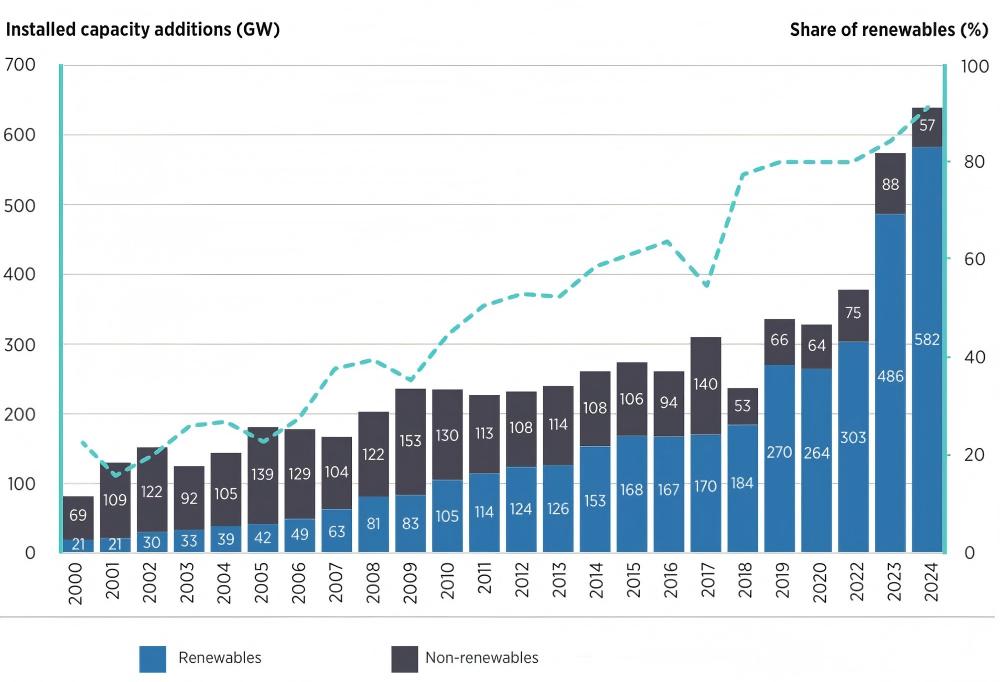

The global energy transition is driving fundamental changes in power systems. The rapid penetration of renewable energy sources like wind and solar introduces significant intermittency and volatility, posing immense challenges to real-time grid balance. Battery energy storage, characterized by rapid response, flexible deployment, and short construction cycles, has become a key technology for enhancing grid flexibility and integrating variable renewables.

Under IRENA's 1.5°C scenario, global electricity system demand for energy storage will grow exponentially. This growth is not only in scale but also in the diversification of application scenarios, including grid-side services like peak shaving, frequency regulation, and reserve capacity, as well as user-side applications like time-of-use arbitrage, demand-side response, and integrated solar-plus-storage-plus-charging solutions.

PART 02

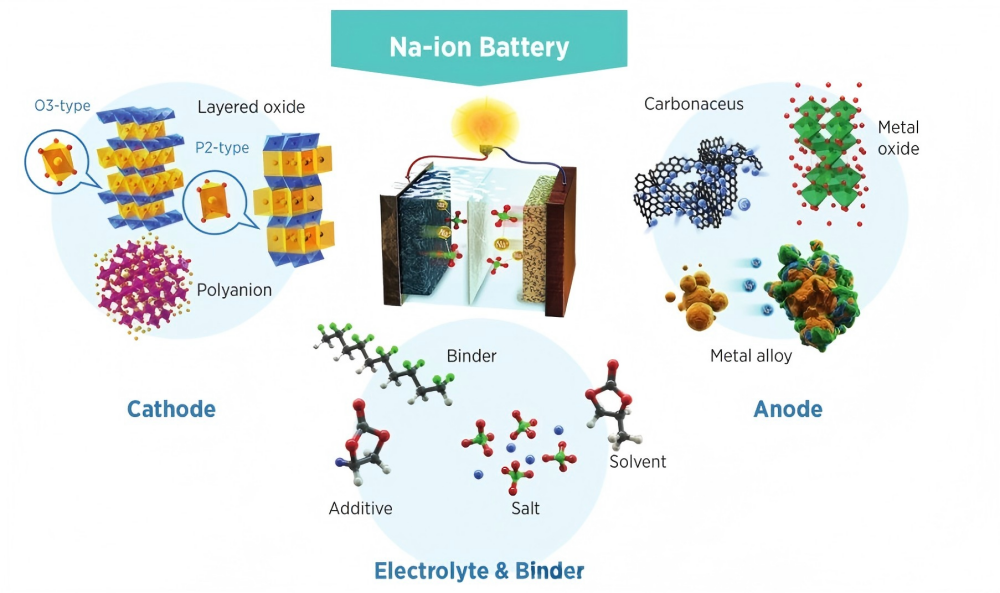

Working Principle of Sodium-Ion Batteries

The working principle of Sodium-Ion Batteries is highly similar to that of Lithium-Ion Batteries, both based on the 'rocking chair' electrochemical mechanism. During charging, sodium ions (Na⁺) de-intercalate from the cathode material, migrate through the separator and electrolyte, and intercalate into the anode material. The process is reversed during discharging.

Its basic components include:

• Cathode: The key material storing sodium ions, which is core to determining battery energy density, voltage, and cost.

• Anode: The material receiving sodium ions, affecting initial efficiency, cycle life, and rate capability.

• Electrolyte: The medium conducting sodium ions, typically a sodium salt (like sodium hexafluorophosphate, NaPF₆) dissolved in organic solvents.

• Separator: Isolates the cathode and anode to prevent short circuits while allowing ion passage.

• Current Collectors: A notable advantage is that both the cathode and anode of SIBs can use lower-cost aluminum foil, whereas LIB anodes require more expensive copper foil.

Compared to lithium ions, sodium ions have a larger radius (1.02 Å vs. 0.76 Å) and are heavier. This necessitates targeted optimization in material selection and structural design to accommodate the intercalation/de-intercalation kinetics of sodium ions.

PART 03

Core Performance Parameters

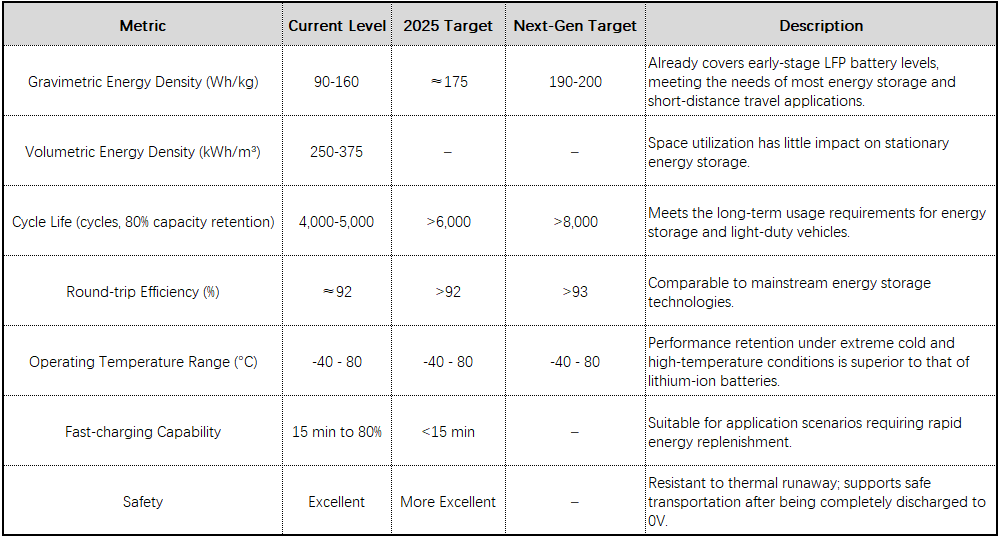

According to data released by leading industry companies, the current and future key performance indicators for SIBs are as follows:

PART 04

Analysis of Major Technology Pathways

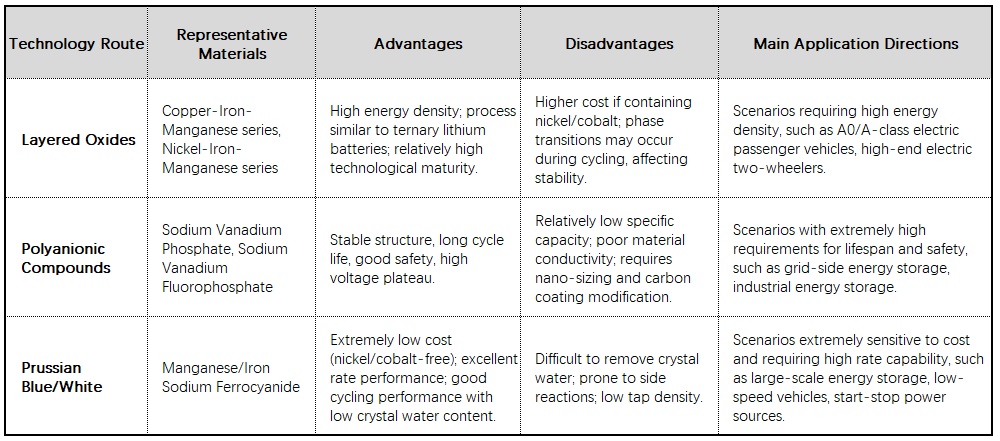

Sodium-Ion Battery technology is diverse, primarily centered on differences in cathode materials. Different cathode materials determine the battery's cost, energy density, rate performance, and cycle life, thereby guiding them towards different application scenarios. Hard carbon is currently the mainstream anode material.

Cathode Material Pathways

Current mainstream cathode materials fall into three main categories: Layered Transition Metal Oxides, Polyanionic Compounds, and Prussian Blue/White Analogues.

• Layered Transition Metal Oxides: Offer high specific capacity and high operating voltage, representing a mainstream commercialization pathway. They include types like O3 and P2, with materials such as NaₓMO₂ (M = transition metals like Fe, Mn, Ni, Cu, etc.). The challenge lies in controlling structural phase transitions during cycling. This route is suitable for applications requiring high energy density.

• Polyanionic Compounds: Exemplified by NaₓM₂(PO₄)₃ (NASICON-type, e.g., Na₃V₂(PO₄)₃) and Na₂Fe₂(SO₄)₃. They feature stable three-dimensional frameworks, offering excellent thermal stability, safety, and ultra-long cycle life (can exceed 10,000 cycles). However, their energy density is relatively low. This route is suited for large-scale energy storage demanding high safety and longevity.

• Prussian Blue/White Analogues (PB/PW): Composed of transition metal ions and cyanide groups forming an open framework structure, allowing for fast sodium ion diffusion and excellent rate performance. The main raw materials (sodium ferrocyanide) are low-cost, offering significant cost potential. Challenges include controlling crystal water content and improving initial coulombic efficiency. This route is particularly promising for energy storage applications due to its cost-effectiveness.

Companies that diversify their technical roadmap and can flexibly adjust product portfolios based on market demands possess greater resilience and long-term competitiveness. The Prussian blue/white route, with its ultimate cost advantage, holds high hopes for the energy storage field.

Anode Material Pathways

Unlike the prevalent use of graphite anodes in LIBs, sodium ions cannot effectively intercalate/de-intercalate between graphite layers. Therefore, Hard Carbon has become the anode material of choice for the current commercialization of SIBs.

• Hard Carbon: Features a "turbostratic structure" with abundant micropores, providing a combined storage mechanism of "intercalation + adsorption" for sodium ions. Its specific capacity can exceed 300 mAh/g, and it has a low voltage plateau, which is beneficial for enhancing battery energy density. Hard carbon precursors are widely available, including biomass (e.g., straw, nutshells), resins, and asphalt, offering potential for cost reduction.

• Other Anodes: Materials like soft carbon, alloy-based materials (tin, antimony), and organic compounds are also under R&D. However, they still face challenges in cycle stability, volume expansion, and cost, resulting in slower commercialization progress.

The production capacity, quality, and cost of hard carbon are one of the key bottlenecks currently constraining the industrialization of SIBs. Upstream companies mastering stable, low-cost, high-performance hard carbon manufacturing technology will hold significant leverage.

Electrolyte and Current Collectors

• Electrolyte: Primarily uses sodium salts like NaPF₆, combined with carbonate-based solvents. Optimizing solvent ratios and functional additives can significantly improve battery low-temperature performance, rate capability, and interfacial stability.

• Current Collectors: Both the cathode and anode of SIBs can use aluminum foil. Compared to LIBs, which must use more expensive copper foil for the anode, this offers a clear material cost advantage.

PART 05

Technical Advantages and Limitations

For investors, clearly understanding the "strengths" and "weaknesses" of SIBs is a prerequisite for sound decision-making.

Core Advantages (Pros)

•Resource Autonomy and Stable Costs: Sodium's crustal abundance is over 400 times that of lithium, and it is widely distributed, with vast reserves in seawater and salt lakes. This fundamentally reduces dependence on scarce mineral resources like lithium, cobalt, and nickel, ensuring high supply chain security. The price of the main raw material, soda ash (sodium carbonate), remains stable at low levels long-term, laying a solid foundation for low battery costs.

• Excellent Low-Temperature Performance: SIBs can retain over 90% capacity at -20°C, far superior to LIBs (typically 60-70%). This grants them irreplaceable advantages in cold northern regions, high-altitude areas, and for outdoor energy storage, construction machinery, etc.

• Inherent Safety and Convenient Transportation: Due to higher internal resistance and material properties, SIBs have a much lower tendency for thermal runaway than LIBs. Additionally, the batteries can be completely discharged to 0V for storage and transportation, significantly reducing short-circuit risks and shipping costs. This is particularly important for the prefabrication and relocation of large-scale energy storage systems.

• Superior Fast-Charging Capability: Thanks to the open framework structures of materials like polyanionic compounds and Prussian blue analogues, sodium ions have faster diffusion channels, enabling fast charging (e.g., reaching 80% charge in 15 minutes). This meets the demands of scenarios requiring high charging efficiency.

• Total Cost of Ownership (TCO) Potential: Considering raw material costs, long cycle life, low maintenance needs, and end-of-life recovery (simplified by the dual-aluminum-foil structure), SIBs have the potential to achieve lower TCO than Lithium Iron Phosphate batteries in long-duration applications like stationary storage.

Current Limitations (Cons)

• Relatively Lower Energy Density: This is currently the main drawback of SIBs. Limited by the larger radius and heavier mass of sodium ions, their energy density (140-160 Wh/kg) still lags behind mainstream LFP batteries (160-200 Wh/kg) and NMC batteries (>250 Wh/kg). This directly restricts their application in mid-to-high-end passenger EVs with stringent range requirements.

• Immature Industry Chain: As an emerging technology, the SIB industry chain is still in its infancy. Particularly, the large-scale, low-cost, high-quality supply of key materials like high-performance hard carbon anodes and high-purity Prussian white cathodes remains a challenge. Cell manufacturing processes, yield rates, and consistency also require time to accumulate and improve.

• System Integration Experience and Standards to be Refined: Compared to highly standardized LIB systems, SIB-specific optimization and validation are still needed for Battery Management System algorithms, thermal management strategies, and PACK integration technology (considering their flatter discharge curves, for example). Industry standards and testing protocols are also urgently needed.

PART 06

Application Scenarios and Market Prospects

The unique advantages of SIBs dictate that their market penetration will follow a differentiated strategy of "leveraging strengths and avoiding weaknesses," achieving breakthroughs first in areas where LIBs are "incapable" or "too costly."

Stationary Energy Storage: Core Application Field

Stationary storage places higher demands on cost, safety, and longevity than on energy density, making it the most ideal market for SIBs.

• Grid-Side Storage: Used for peak shaving, frequency regulation, renewable integration, and grid congestion relief. The long lifespan, high safety, and wide operating temperature range of SIBs can reduce the construction and operational costs of power plants, especially in regions with variable climates.

• Behind-the-Meter Storage: Used for commercial and industrial parks for time-of-use arbitrage, demand charge management, and solar-plus-storage microgrids. The low cost and high safety of SIBs can deliver faster ROI and higher safety assurance for end-users.

• Backup Power: For critical facilities like data centers, communication base stations, and hospitals. The wide temperature range and long lifespan of SIBs make them an ideal replacement for lead-acid batteries.

Market Outlook: With the global energy storage market booming, SIBs are poised to capture a significant market share in stationary storage by leveraging their cost and safety advantages, forming a "high-low pairing, scenario-complementary" pattern with LIBs.

Light Electric Vehicles: Significant Growth Market

•Electric Two/Three-Wheelers: This market is highly cost-sensitive and still uses a substantial number of lead-acid batteries. SIBs far surpass lead-acid in performance while being more cost-competitive than LIBs, making them the optimal choice for "lead-acid replacement" and "lithium supplement."

• A0/A00 Short-Range Passenger Cars: For urban commuting vehicles with modest range requirements (e.g., 200-300 km), SIBs can fully meet the needs. Their fast-charging capability and low-cost advantage have the potential to create highly competitive entry-level electric models.

Market Outlook: China is the world's largest market for two-wheelers, and markets like Southeast Asia and India are rapidly electrifying. Short-range passenger cars have a vast user base in China and Europe. The penetration of SIBs in this segment will create enormous market growth.

Other Specific Scenarios

Including low-speed electric vehicles (e.g., sightseeing cars, golf carts), construction machinery, port AGVs, mining trucks, and marine power. These scenarios have stringent requirements for battery temperature adaptability, rate performance, and safety, providing differentiated application space for SIBs.

PART 07

Conclusion

Sodium-Ion Batteries stand at the intersection of the energy revolution and the energy storage boom. Their application value in specific fields has been validated, and a wave of large-scale commercialization is imminent. For power industry investors, now is a critical window to conduct in-depth research and strategically position within the SIB industry chain. Seizing this round of energy technology transformation driven by new materials will not only allow sharing in the industry's growth dividends but is also a crucial step in building a future-proof energy investment portfolio and achieving long-term sustainable returns.
