Brand Name
|
SVOLT |
|
Model Number
|
NMC 12s1p
|
|
Nominal Voltage
|
43.2V
|
|
Nominal Capacity
|
156ah
|
|
Place of Origin
|
China
|
|
Weight
|
30kg
|
|
Max charging rate
|
1C
|
|
Max discharge rate
|
3C
|
|

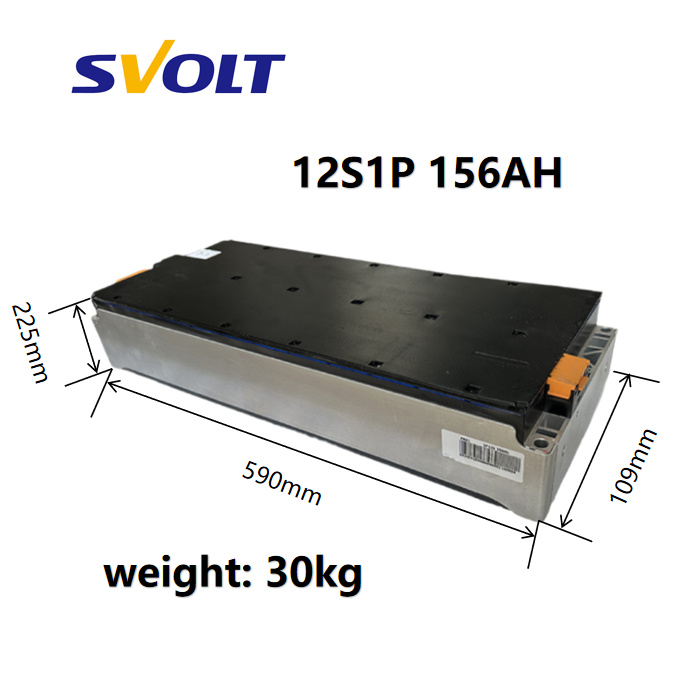

Dimension
|
590*225*109mm
|
|
Storage Type
|
Room Temperature
|
|
Warranty
|
1 years
|
|
Anode Material
|
NCM
|
|
Application
|
BOATS, Golf Carts, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Electric Forklifts
|
Cautions of Battery Operation:
1.Please read all safety instructions thoroughly and carefully inspect the markings provided by the battery supplier on the battery surface before use. These markings are essential for ensuring proper installation and handling in battery energy storage solutions or custom applications.
2.During operation, keep the custom lithium ion battery away from any heat source or open flame. Do not expose the battery to impact such as beating, dropping, or strong vibration, as these actions can compromise the integrity of products made by leading lithium-ion battery manufacturers.
3.Do not solder directly onto the battery cell or puncture it using nails or any sharp tools. Such damage can result in internal short-circuiting, thermal runaway, or reduced life span, especially in modules used for custom lithium battery systems.
4.Avoid flipping, striking, throwing, stepping on, or bending the battery module. Even with advanced casing used by top battery energy storage system suppliers, physical abuse may cause internal cell failure or create fire hazards.
5.Never intentionally short-circuit the terminals of the battery. Doing so can result in overheating, leakage, or fire, and will void the performance guarantees offered by battery supplier partners for safe energy systems.
6.Used or discarded batteries must be disposed of in compliance with environmental regulations. Do not incinerate or submerge the custom lithium ion battery in water. Follow the disposal guidelines recommended by energy storage battery suppliers to ensure environmental protection and user safety.
Application:
Module Purpose And Target Users
This 43.2V 12S1P 156Ah NMC module is designed for electric vehicle builders, solar energy integrators, and backup power providers needing high‑voltage, high‑capacity modules. Starmax Energy, recognized among battery supplier networks, offers this module to meet both mobile and stationary power demands. Users who need reliable energy delivery, robust discharge capacity, and long operational life will benefit from this product. It fits use in electric cars, solar energy storage systems, off‑grid installations, and fleet EVs where stable performance is essential.
Technical Specifications And Key Metrics

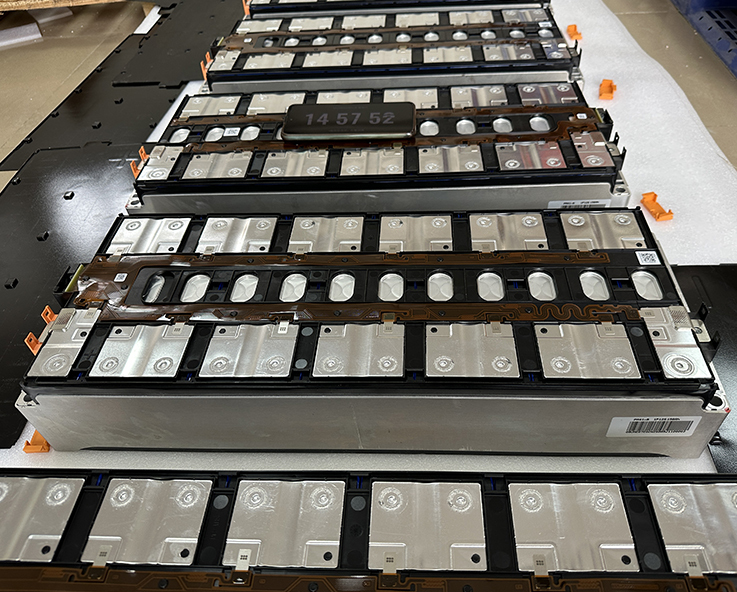

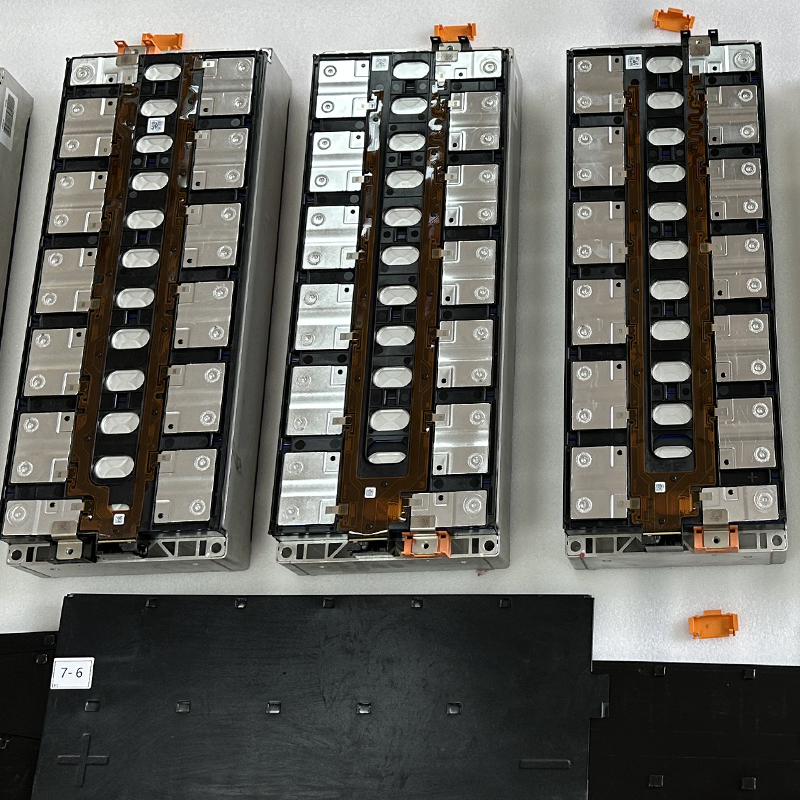

The module uses SVOLT Grade A NMC cells in a 12‑series 1‑parallel (12S1P) configuration, delivering a nominal voltage of 43.2V and nominal capacity of 156Ah. It supports a maximum discharge rate of 3C, charge rate typically 1C, with a cut‑off discharge voltage around 33V and a full charge voltage at 50.4V. Operating discharge temperature is −20 °C to 55 °C, and storage temperature −20 °C to 35 °C. Size measures approximately 590×225×109 mm, weight about 30 kg. Cycle life is rated ≥1500 cycles. These parameters reflect standards expected of custom lithium ion battery packs produced by leading lithium battery manufacturing operations.
Application Value And Usage Scenarios
This module is well suited for electric vehicles requiring high energy capacity and moderate voltage, such as light EVs, buses, or utility vehicles. It also applies to solar powered energy storage systems in residential or remote settings, offering storage for peak load or backup. For grid tie inverters or hybrid systems, its moderate voltage simplifies system design while maintaining capacity. As a model used by battery energy storage system suppliers, this module offers a balanced trade-off between weight, space, performance, and reliability, making it a preferred choice in projects requiring durability and consistent energy output.
