Brand Name
|
Gotion
|
|
Model Number
|
NMC 12s1p
|
|
Capacity
|
50ah
|
|
Internal resistence
|
＜7.50mΩ
|
|
Place of Origin
|
China
|
|
Weight
|
11.3kg
|
|
Max charging rate
|
1C
|
|
Max discharge rate
|
3C
|
|
Dimension
|
H108*W151*L355mm
|
|
Storage Type
|
Room Temperature
|
|
Warranty
|
1 years
|
|
Anode Material
|
NCM
|
|
Application
|
BOATS, Golf Carts, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Electric Forklifts
|
Cautions of Battery Operation:
1.Please read the instructions carefully and check all markings on the battery surface before use. This is essential when handling products from top lithium ion battery manufacturers or working with custom lithium battery packs.
2.During operation, keep the cell away from heat sources and open flames. Never strike, drop, or subject the battery to mechanical shock, especially in systems built with battery energy storage solutions.
3.Do not directly solder the battery cell or pierce it with nails or any sharp objects, as it may cause internal damage—this applies to all custom lithium ion battery configurations.
4.Do not invert, throw, step on, or bend the battery module. Mechanical abuse can compromise the integrity of cells used in lithium battery manufacturing.
5.Avoid short-circuiting the battery terminals under any circumstance. Short circuits may cause fire, injury, or permanent damage, even in advanced battery energy storage system suppliers designs.
6.Discarded batteries must be properly recycled or handled in accordance with local regulations. Never throw used batteries into fire or water, especially those provided by energy storage battery suppliers.
Application:
Functional Role and Intended Users

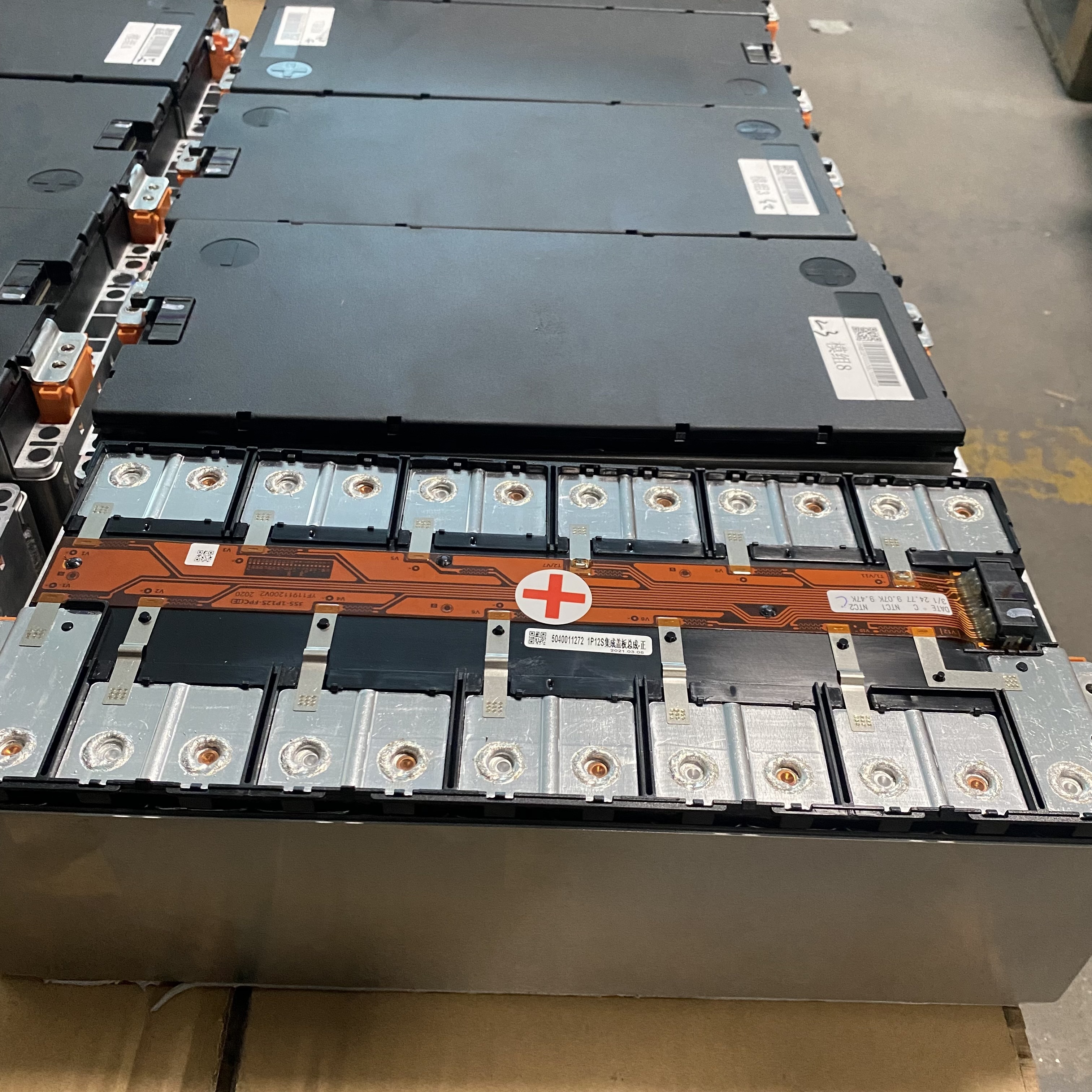

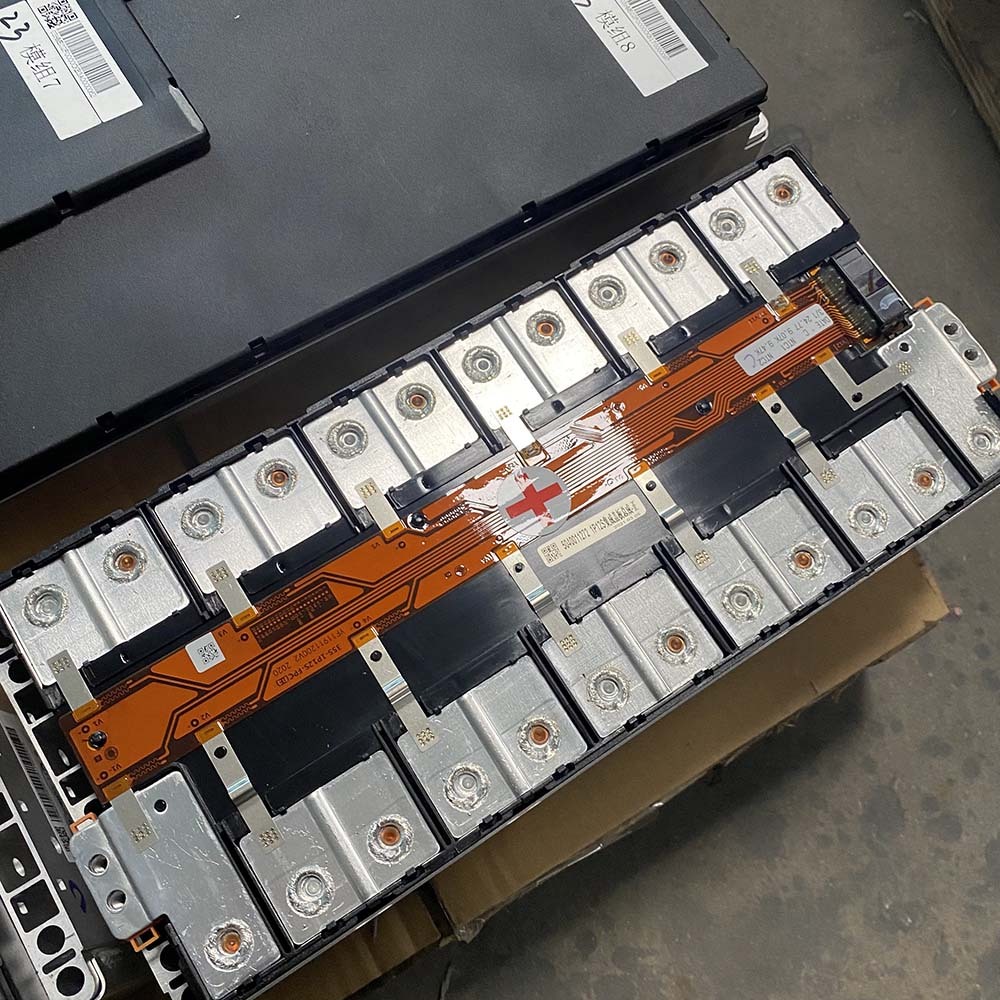

This 12S1P 43.2V 50Ah NMC module serves as a core component for customers who require high-capacity power in mobility or energy backup systems—such as electric car makers, golf cart OEMs, solar storage integrators, or manufacturers evaluating custom lithium battery packs. It is designed to offer stable output and a balance of energy and size so that battery supplier partners can integrate it without severe thermal or weight penalties.
Technical Specifications and Key Parameters

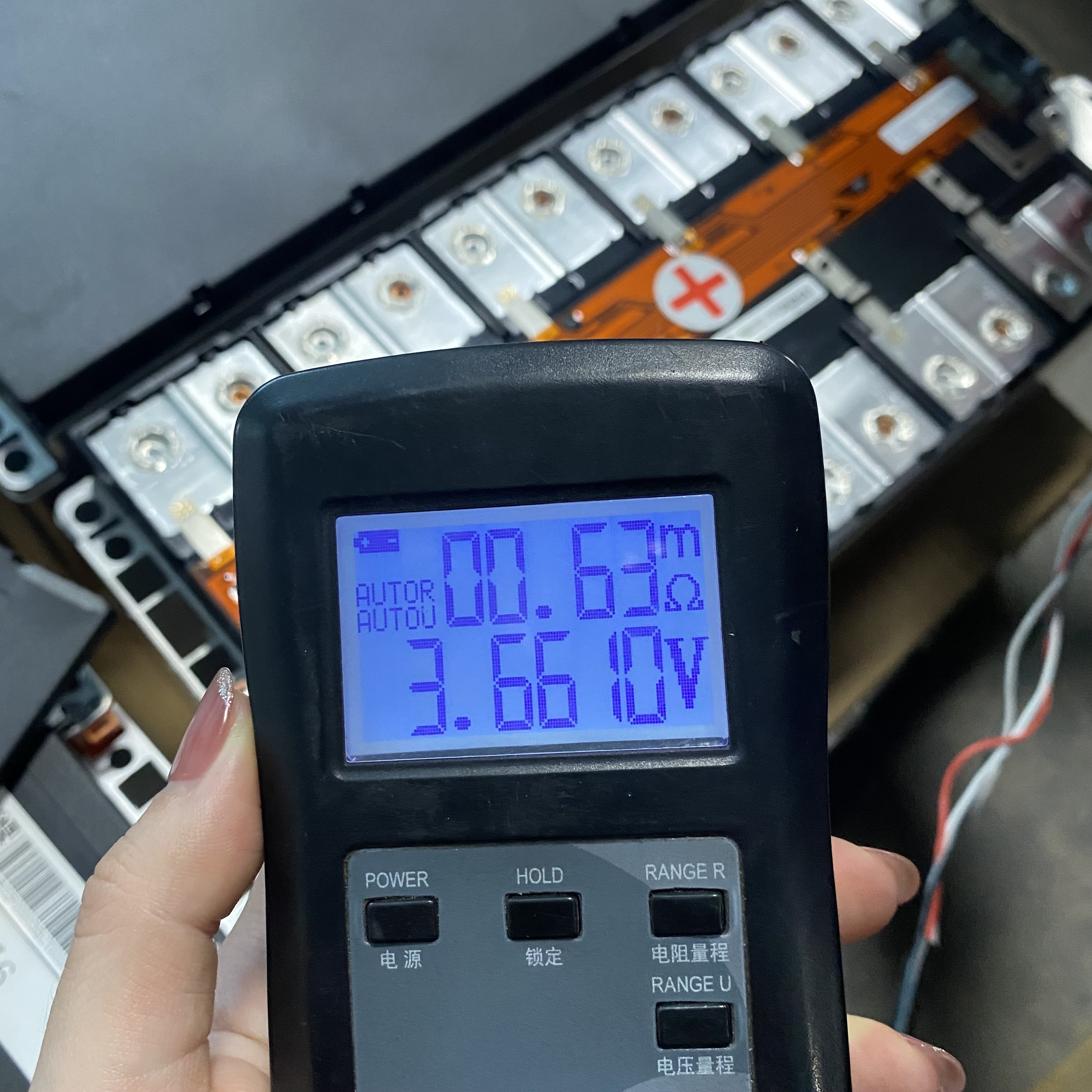

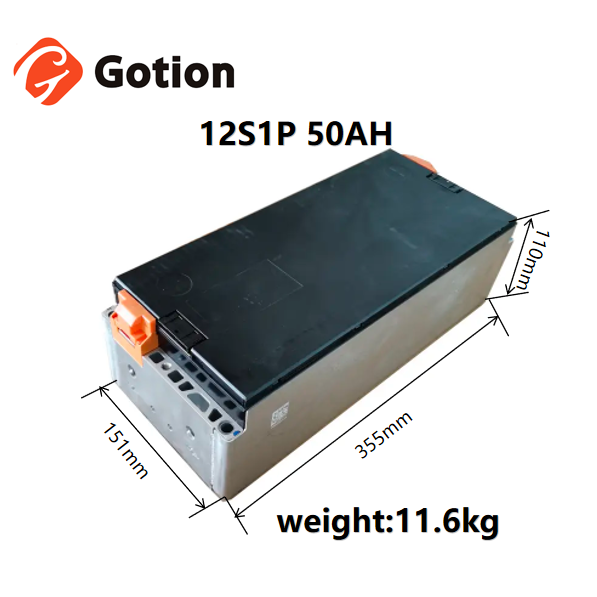

The module is built with Grade‑A NMC prismatic cells, achieving 50Ah capacity, with max discharge rate of 3C and max charge rate of 1C. Weight is approximately 11.3 kg, dimensions are 108 mm × 151 mm × 355 mm. Internal resistance is under 7.50 mΩ. Cycle life exceeds 1,500 full cycles. It has passed full functional testing—voltage, internal resistance, insulation, capacity—and conforms to standard safety assurances. These specs align with expectations for lithium battery manufacturing standards and requirements from top lithium ion battery manufacturers.
Industry Use Cases and Value Proposition
Ideal for electric vehicles, golf carts, electric wheelchairs, forklifts, and solar energy storage systems. Also suited to uninterruptible power supplies and backup energy installations. As part of battery energy storage solution offerings, it enables modular energy system integrators to scale output by combining modules. For those needing custom lithium ion battery arrangements, the module provides building blocks that balance energy density, reliability, and application flexibility—critical in markets where efficiency and durability matter.
