Desciption

Li-ion battery module 6s1p 114Ah 22.2v EV CATL SVOLT Lithium ion battery module 4s1p 180Ah 6s1p 114ah leaf battery

Brand New Grade A lithium ion battery module
Factory directly sell with high quality

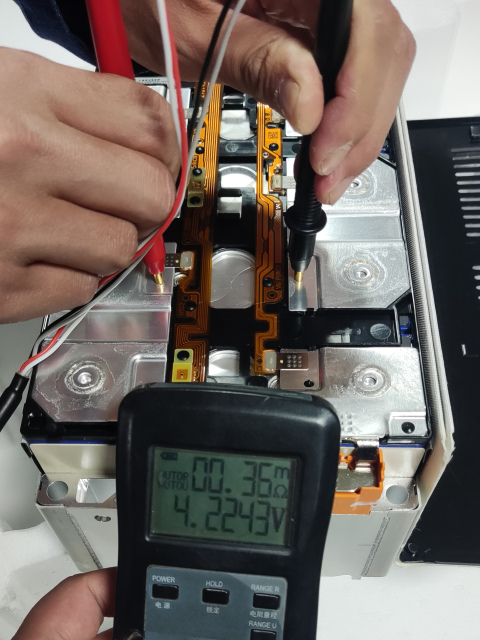

100% testing with voltage, internal resistance, isolation testing and capacity testing

Product Type:

Product Name: Lithium ion battery module

Technical Parameters:

Battery type：	114ah 6s1p module
Brand	HY-SVOLT
Nominal Voltage(V)：	22.2V
Nominal Capacity(mAh)：	114AH
Max charge current：	1C
Max discharge current：	3C
Charge Temperature(℃)：	0~55Centigrade
Discharge Temperature(℃)：	-20~55Centigrade
Storage Temperature(℃)：	-20~45Centigrade
Cycle life：	more than1500times
Weight(g)：	11.8KG

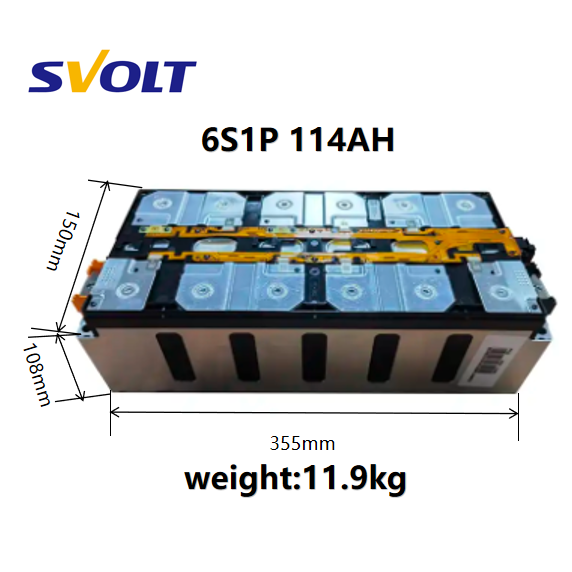

Size(mm)：	110150352mm
application	Solar energy system/Electric motorcycle
Size(mm)：	T150H108W352mm

Cautions of Battery Operation:
1.Please read the instructions carefully and pay attention to the marks on the surface of battery before use.
2.During operation, please keep the cell away from heat source, fire source. Never beat, drop or shock the cell.
3.Do not directly solder the cell or pierce it with a nail or other sharp object.
4.Do not turn over battery. Keep it from strike, throw, tread or bending.
5.Do not make battery short-circuited, in order to avoid from danger incurring or battery damage.
6.Discarded battery should be well disposed. Do not throw it into the fire or water.

FAQ:

Q1.Do you have any MOQ limit for lithium battery?
A: No MOQ.
Q2. Are the batteries come with bus bars+bolts?
A: Yes, it comes with. We can Laser weld screw stud or nut stud per your needs. Normally, one battery will come with 1pc busbar and 2pcs bolts.
Q3.Do you have the used batteries?
A: Sorry, no, our batteries are all brand new.
Q4. How to proceed an order for lithium ion battery?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5. Can we sign a secrecy agreement if we wanna build a long-term business relationship?
A: Sure, we respect clients requirements, will bring more benefit to you.
Q6:Which shipping method you usually take?
A: Train/Sea DDP, Express, We can also ship with your own shipping agent.
Q7: How do I know whether you've shipped my order or not?
A: Tracking No.will be offered as soon as your order be shipped out. Before that, our sales will be there to check the packing status, photo of the order and let you know the detail shipment information.

Email: [email protected]

40Kwh SVOLT 6S1P 22.2V 116Ah 117Ah 141AH Battery Module Lithium Ion Electric Car Ev Battery Module for Nissan leaf car

Li-ion battery module 6s1p 114Ah 22.2v EV CATL SVOLT Lithium ion battery module 4s1p 180Ah 6s1p 114ah leaf battery
