Name: 50Kwh CATL 4S1P 150AH NMC Battery Module Lithium Ion Electric Car Ev Battery Module
Brand: Llithium Ion Battery Manufacturers from China
SKU: HY-4S150
Availability: InStock
Rating: 5 (1 reviews)

50Kwh CATL 4S1P 150AH NMC Battery Module Lithium Ion Electric Car Ev Battery Module

No.HY-4S150

Provide battery solution for electric car with high quality and competitive cost
1.Manufacturer Automated production,Prodcut consistency.
2.Low IR & Low temperature rise.
3.Excellent rate performance.
4.Explosion-proof & No leakage.

Description

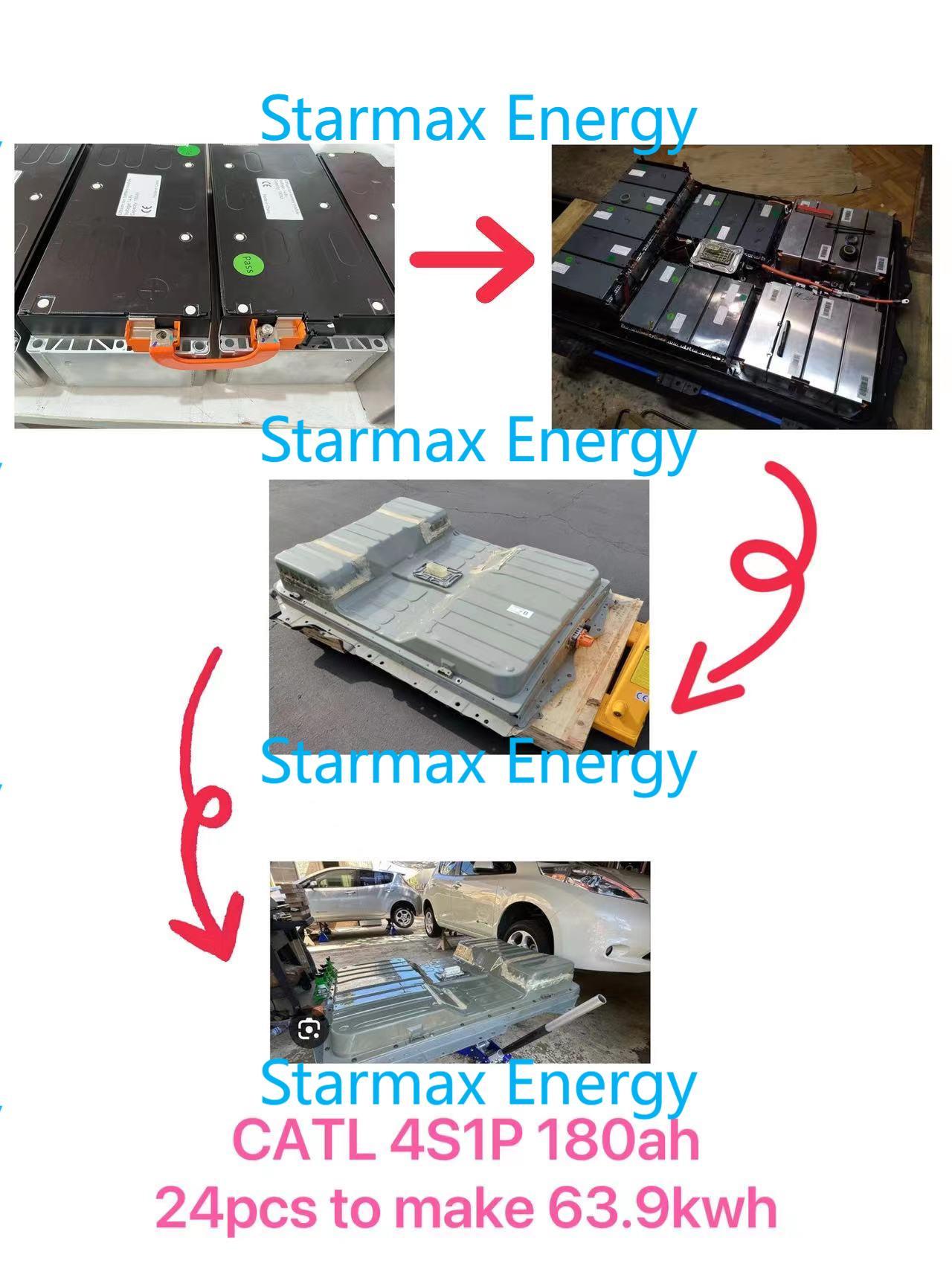

CATL 4S1P 14.8V 150Ah NMC Module, 24pcs to make 355V 50Kwh electric car batteries pack

Brand New Grade A lithium ion battery module

Factory directly sell with high quality

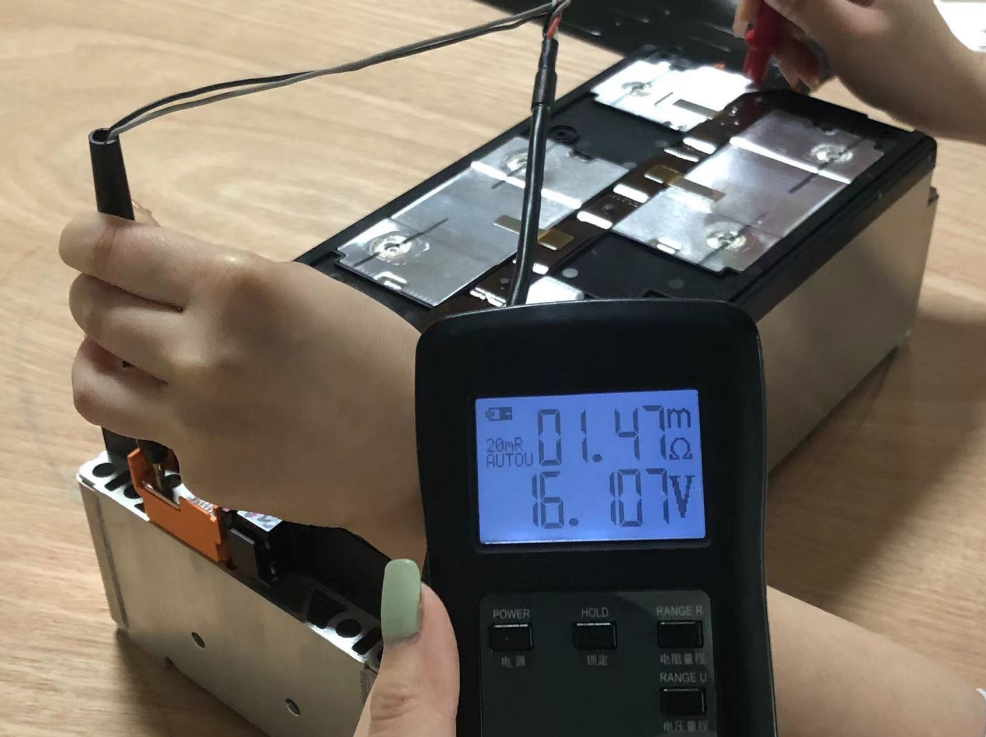

100% testing with voltage, internal resistance, isolation testing and capacity testing

Product Type

Product Name: Lithium ion battery module

Technical Parameters

Battery Type	NMC Lithium ion rechargeable battery
Nominal Voltage	14.8V
Nominal Capacity	150Ah
Cell Inside	CATL 3.7V 180Ah NMC cell
Configuration	4S1P
Charge Voltage	16.8V
Discharge Cut-off Voltage	11V
Max Charge Current	1C
Max Discharge Current	3C
Charge Temperature	0-45℃
Discharge Temperature	-20~55℃
Storage Temperature	-20~35℃
Cycle Life	≥1500 Times (80% of initial capacity at 0.2C rate, IEC Standard)

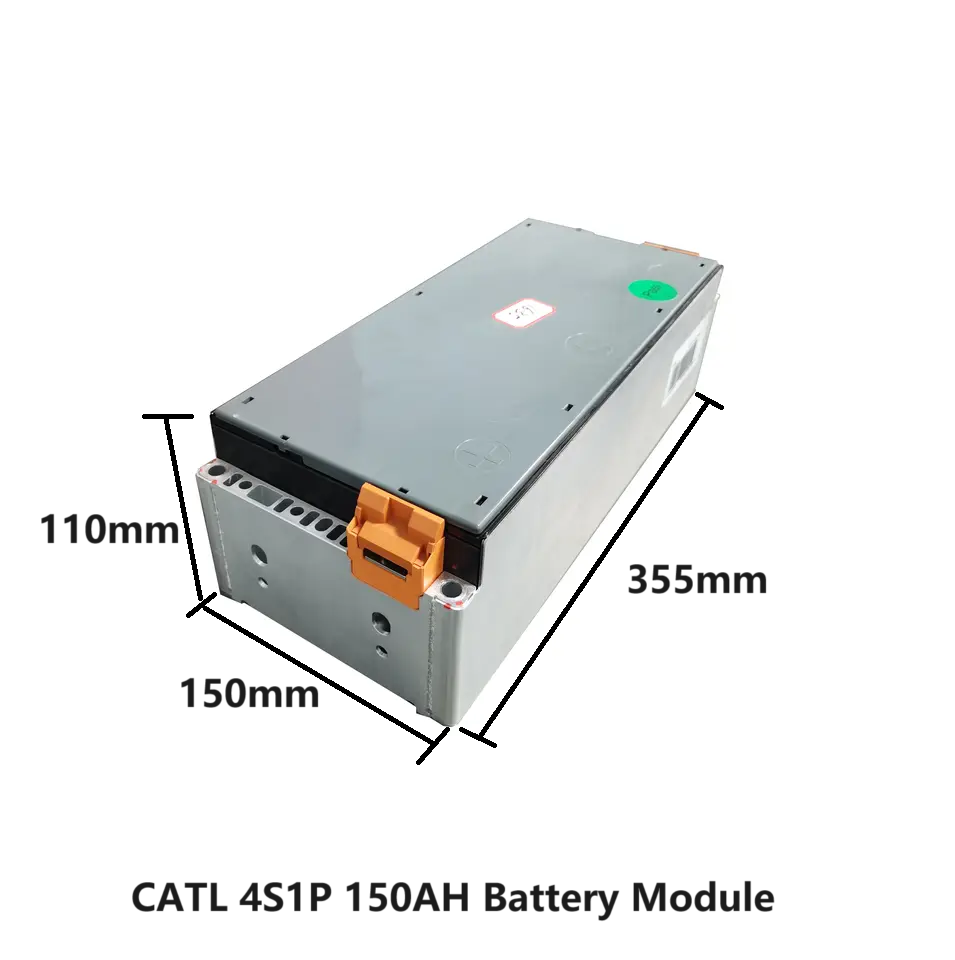

Battery Size	352150108mm
Battery Weight	11.8kg

Reliable Power for Electric Vehicles
Designed for electric vehicles, this lithium ion battery module ensures high efficiency and sustainability, providing 50KWH capacity and 150Ah of energy in a 4S1P configuration.

Eco-Friendly and Efficient Technology
Built with NMC technology, the Starmax Energy battery module is a sustainable energy source that reduces your carbon footprint while offering excellent performance.

Safety and Durability
The Starmax Energy 4S1P battery module comes with built-in safety features such as an explosion-proof design and low-temperature performance for enhanced durability.

Adaptable and Versatile
Ideal for electric cars, boats, and energy storage systems, this module offers scalable power for a range of applications.

Long Lifespan and Cost-Effective
With a cycle life of over 1500 charges, the Starmax Energy 50KWH battery module provides long-lasting, cost-effective performance.

Cautions of Battery Operation

1.Please read the instructions carefully and pay attention to the marks on the surface of battery before use.

2.During operation, please keep the cell away from heat source, fire source. Never beat, drop or shock the cell.

3.Do not directly solder the cell or pierce it with a nail or other sharp object.

4.Do not turn over battery. Keep it from strike, throw, tread or bending.

5.Do not make battery short-circuited, in order to avoid from danger incurring or battery damage.

6.Discarded battery should be well disposed. Do not throw it into the fire or water.

FAQ

Q1.Do you have any MOQ limit for lithium batteries?
No MOQ.

Q2. Do the batteries come with bus bars and belts?
Yes, it comes with. We can Laser weld screw studs or nut studs per your needs. Normally, one battery will come witha 1pc busbar and 2pcs bolts.

Q3.Do you have the used batteries?
Sorry, no, our batteries are all brand new.

Q4. How to proceed with an order for lithium ion battery?
Firstly let us know your requirements or application.
Secondly, We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places a deposit for a formal order.
Fourthly We arrange the production.

Q5. Can we sign a secrecy agreement if we wanna build a long-term business relationship?
Sure, we respect the client's requirements, which will bring more benefit to you.

Q6. Which shipping method do you usually take?
Train/Sea DDP, Express, We can also ship with your own shipping agent.

Q7: How do I know whether you've shipped my order or not?
Tracking No.will be offered as soon as your order is shipped out. Before that, our sales will be there to check the packing status, and photo of the order and let you know the detailed shipment information.
