Desciption

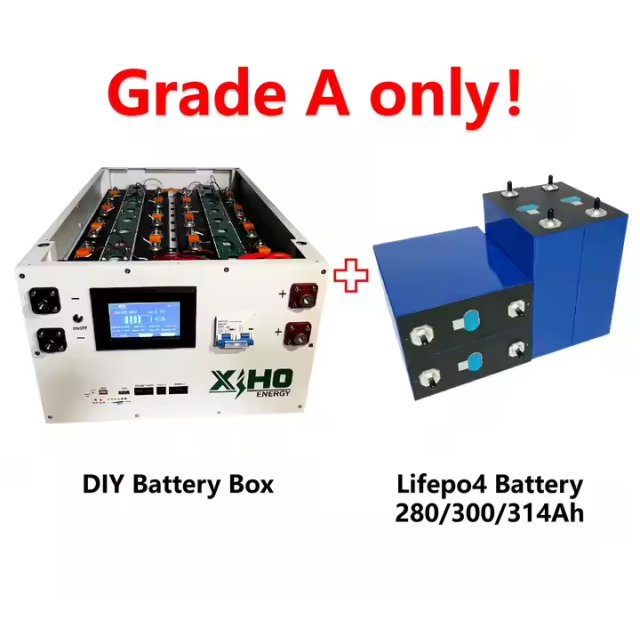

JKBMS ESS 15Kwh 51.2V LifePO4 Battery DIY Kits 48V 280AH 304AH LifePO4 Solar System Inverter BMS Active Balance

Starmax 48V 51.2V 200A 14Kwh 15Kwh 3.2V Lifepo4 Battery Cell Energy Storage Battery Power System Lithium Ion Battery Pack

Product Name:		15Kwh Energy Storage Battery Pack
Nominal Capacity(Ah):		314/300/280Ah
Nominal Voltage(V):		48V/51.2V
Color:		White/Black
Weight(Approximate):		120-140Kg
Battery Cell:		Grade A 314/304/302/280Ah new cell
Dimensions(LWH):		L750W440H250(mm)
Communication Interface:		CANBUS/RS485
BMS:		51.2V/48V 16S 200A BMS
Standard Discharge 25°C	Max. cont. current:	200A
	Max.10sec.pulse:	380A
	Cut-off Voltage:	40V
Standard Charge	Charge Voltage:	58.4V
	Float:	55.2V
	Current:	140A@25±2℃(recommended)
	Max charge curent:	200A
Working Temperature:		Discharge -20 to 60℃; Charge 0 to 45℃
SOC Range:		5%-100%

Cautions of Battery Operation
1.Please read the instructions carefully and pay attention to the marks on the surface of battery before use.
2.During operation, please keep the cell away from heat source, fire source. Never beat, drop or shock the cell.
3.Do not directly solder the cell or pierce it with a nail or other sharp object.
4.Do not turn over battery. Keep it from strike, throw, tread or bending.
5.Do not make battery short-circuited, in order to avoid from danger incurring or battery damage.
6.Discarded battery should be well disposed. Do not throw it into the fire or water.

FAQ

Q1.Do you have any MOQ limit for lithium battery?
A: No MOQ.
Q2. Are the batteries come with bus bars+bolts?
A: Yes, it comes with. We can Laser weld screw stud or nut stud per your needs. Normally, one battery will come with 1pc busbar and 2pcs bolts.
Q3.Do you have the used batteries?
A: Sorry, no, our batteries are all brand new.
Q4. How to proceed an order for lithium ion battery?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5. Can we sign a secrecy agreement if we wanna build a long-term business relationship?
A: Sure, we respect clients requirements, will bring more benefit to you.
Q6:Which shipping method you usually take?
A: Train/Sea DDP, Express, We can also ship with your own shipping agent.
Q7: How do I know whether you've shipped my order or not?
A: Tracking No.will be offered as soon as your order be shipped out. Before that, our sales will be there to check the packing status, photo of the order and let you know the detail shipment information.

51.2V 280Ah LiFePO4 Energy Storage Battery 15kwh Solar Energy System with EVE 280AH Lifepo4 Grade A cell
