63.9Kwh CATL 14.8V 180ah 4S1P NMC Rechargeable Lithium Ion Battery Module Electric Car Battery Pack For Nissan leaf car EV Power Batteries

Desciption

Nissan Leaf 62KWh 64KWh Orginal CATL 14.8V 4S1P 180Ah NMC Battery Module with FPC Connector for EV Batteries

Brand New Grade A lithium ion battery module

Factory directly sell with high quality

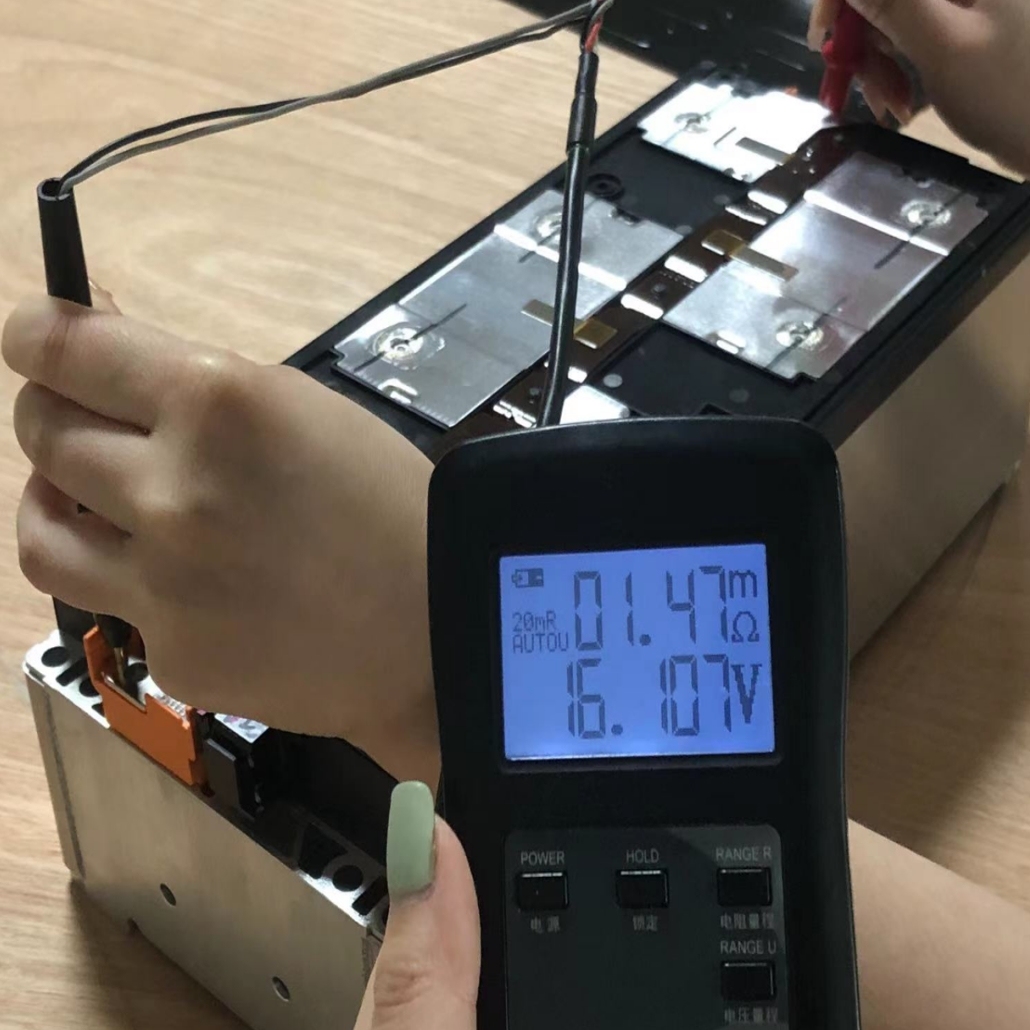

100% testing with voltage, internal resistance, isolation testing and capacity testing

Product Type:

Product Name: Lithium ion battery module

Feature:
1. High capacity and stable discharge voltage
2. Longer working time with high performance
3. Light weight with small size
4. Outstanding discharge properties and small internal resistance
5. No memory effect, good discharge ability and high load and resist high temperature
6. Pollution free for environmental protection
7. 100% Authentic original li-ion rechargeable battery
8. Bulid in anti-explosion protection and circuit protection

9. Long cycle life more than 1500 times

10. Good consistency, low self discharge

Technical Parameters:

Battery type：	14.8V 180Ah NMC battery Module
Nominal Voltage(V)：	14.8V
Nominal Capacity(mAh)：	180AH
AC Impedance Resistance：	≤0.8mΩ
Standard Charge/Discharge Current：	0.5C/0.5C
Standard Charge/Discharge Cut-off Voltage：	4.2V/2.75V(for single cell)
Continuous Charge/Discharge Current：	1C/1C
Pulse Charge/Discharge Ccurrent（30s）：	3C/3C
Recommended SOC Window：	10%～90%
Operating Temperature：	Charging: 0~60℃ Discharging:-30~60℃
Weight(g)：	11.9KG
Application:	Engine starting battery, electric bicycle/motorcycle/scooter, golf trolley/carts, power tools...Solar and wind power system, RV, caravan
application	Solar energy system/Electric motorcycle

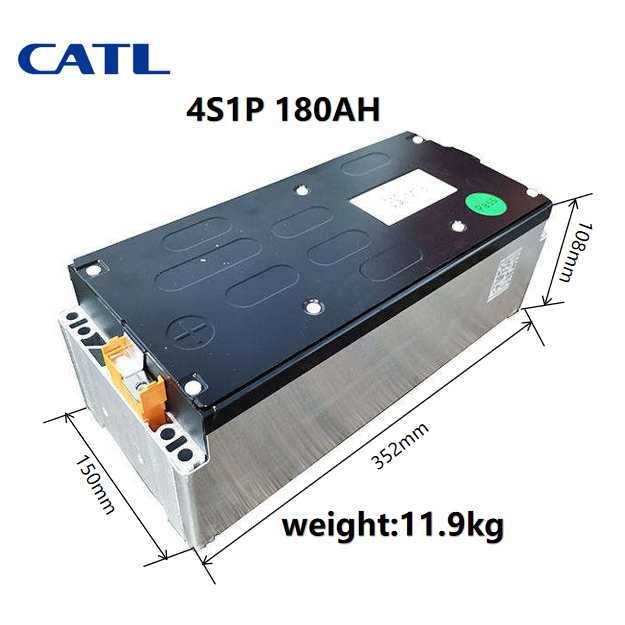

Size(mm)：	T150H108W352mm

Cautions of Battery Operation:
1.Please read the instructions carefully and pay attention to the marks on the surface of battery before use.
2.During operation, please keep the cell away from heat source, fire source. Never beat, drop or shock the cell.
3.Do not directly solder the cell or pierce it with a nail or other sharp object.
4.Do not turn over battery. Keep it from strike, throw, tread or bending.
5.Do not make battery short-circuited, in order to avoid from danger incurring or battery damage.
6.Discarded battery should be well disposed. Do not throw it into the fire or water.

Application:

Company Introduction:

Shenzhen Starmax Energy Technology Co., Ltd is specialized in rechargeable battery for over 10 years. With advanced equipment and
technology, we can provide wide range of qualified lithium battery, Lithium-ion polymer battery, and energy storage battery etc.
All of our batteries passed UL CE, ROHS, CB and IEC62133 certification. Safety, light weight and longer use life is our batteries features.
And our batteries widely used in portable speaker, UVA, Bluetooth headset, E-bike, electronic audio and digital player etc.
We'd like to build a win-win business and bring about a wonderful future for you and your business.

FAQ:

Q1.Do you have any MOQ limit for lithium battery?
A: No MOQ.
Q2. Are the batteries come with bus bars+bolts?
A: Yes, it comes with. We can Laser weld screw stud or nut stud per your needs. Normally, one battery will come with 1pc busbar and 2pcs bolts.
Q3.Do you have the used batteries?
A: Sorry, no, our batteries are all brand new.
Q4. How to proceed an order for lithium ion battery?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5. Can we sign a secrecy agreement if we wanna build a long-term business relationship?
A: Sure, we respect clients requirements, will bring more benefit to you.
Q6:Which shipping method you usually take?
A: Train/Sea DDP, Express, We can also ship with your own shipping agent.
Q7: How do I know whether you've shipped my order or not?
A: Tracking No.will be offered as soon as your order be shipped out. Before that, our sales will be there to check the packing status, photo of the order and let you know the detail shipment information.
