Brand New Catl 3.7v 116ah 117ah Lithium Nmc Rechargeable Battery Cells With Screws batteries battery lithium

No.HY-37117

This item is CATL 117ah 3.7V NMC battery from the original CATL factory.
Brand new grade A with QR code.
we can weld the terminals for free if you need.
before shipping the battery, we will check the apparance of each battery and measure the IR and voltage to make sure the quality is completely without any problem.

Description

3.7V 117Ah CATL Prismatic Lithium Ion Cell rechargeable NMC li-ion battery solar 3.7v 120ah CATL

Name: Brand New Catl 3.7v 116ah 117ah Lithium Nmc Rechargeable Battery Cells With Screws batteries battery lithium
Brand: Llithium Ion Battery Manufacturers from China
SKU: HY-37117
Availability: InStock
Rating: 5 (1 reviews)

Brand:	CATL
Battery type：	NMC prismatic
Nominal Voltage(V)：	3.7V
Nominal Capacity(mAh)：	117Ah
Charge Voltage：	4.2V
Discharge cut-off voltage：	2.75V
Max charge current：	1C
Max discharge current：	5C
Internal resistance：	≤0.50mohms
Charge Temperature(℃)：	0~55Centigrade
Discharge Temperature(℃)：	-20~55Centigrade
Storage Temperature(℃)：	-20~45Centigrade
Cycle life：	More than 2000 times
Grade:	A+
Weight(g)：	About 1740±50g

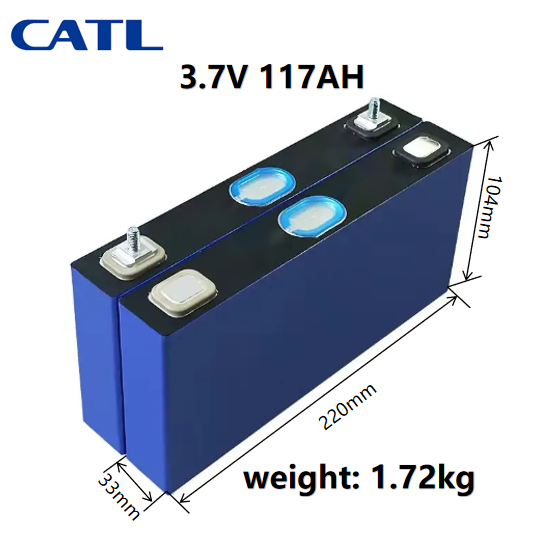

Size(mm)：	T33H102(105)W220(mm）

Safety precautions and prohibitions!！

1.Don't leave a cell near a fire or a heat source.
2.Don't throw a cell into a fire.
3.Don't immerse, throw, and wet cell in water / seawater.
4.Don’t store metallic objects (such as keys or screwdriver) near the cell.
5.Don't short circuit (+) and (-) terminals with metallic object intentionally.
6.Don't pierce cells with a sharp object such as a needle, or screwdrivers.
7.Don't heat a part of cells with heating objects such as a soldering iron.
8.Don't hit cells with heavy objects such as a hammer, or heavy weights.
9.Don't put the a cell into a microwave oven, dryer, or a high-pressure container.
10.Don’t expose to water splashing condition.
11.Don’t keep batteries close to baby.

Application

Packing

Shrink/Blister card/colour box/clamshell
1. All shipping goods are 100% inspected and packed very well.
2. Customized package available.

Cautions of Battery Operation

* Use high hardness custom sponge to strengthen the battery
* 5 layers of dangerous goods export corrugated carton
* Positive and negative paste insulation tape
* We will label test data on each cell before delivery
* If customer have requirement, we can provide Wooden Packing for shipping.

FAQ

Q1.Do you have any MOQ limit for lithium battery?
A: No MOQ.
Q2. Are the batteries come with bus bars+bolts?

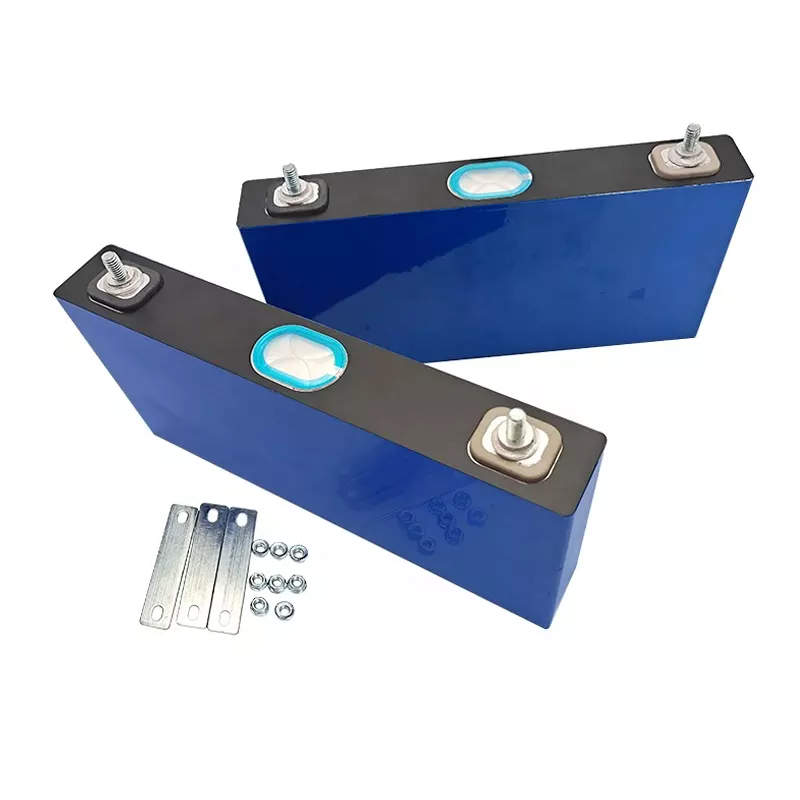

A: Yes, it comes with. We can Laser weld screw stud or nut stud per your needs. Normally, one battery will come with 1pc busbar and 2pcs bolts.
Q3.Do you have the used batteries?
A: Sorry, no, our batteries are all brand new.
Q4. How to proceed an order for lithium ion battery?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5. Can we sign a secrecy agreement if we wanna build a long-term business relationship?
A: Sure, we respect clients requirements, will bring more benefit to you.
Q6:Which shipping method you usually take?
A: Train/Sea DDP, Express, We can also ship with your own shipping agent.
Q7: How do I know whether you've shipped my order or not?
A: Tracking No.will be offered as soon as your order be shipped out. Before that, our sales will be there to check the packing status, photo of the order and let you know the detail shipment information.
