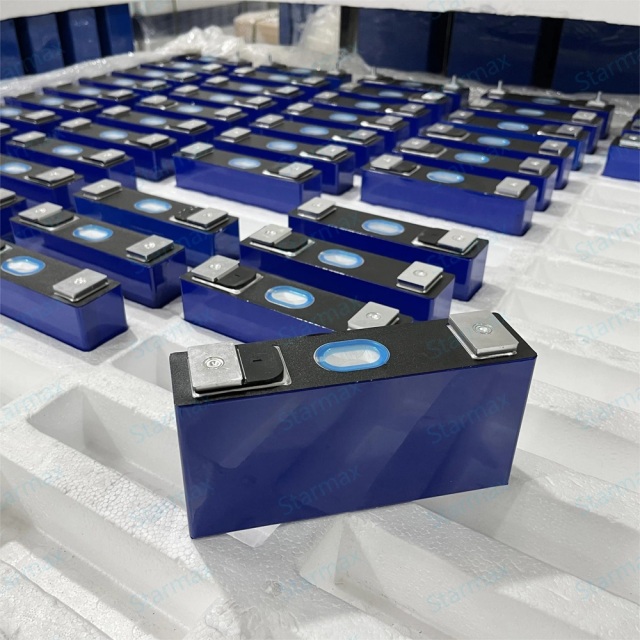

Brand New CATL 3.7V 93Ah Lithium Ion Battery Prismatic Rechargeable Nmc Battery Cell for Electric Car Mitsubishi Imiev and Renault Zoe

Desciption

3.7v CATL 93ah prismatic NMC Cell 3.7V battery Rechargeable Car Battery CATL NMC for Electric Vehicle Power System Product Features

*Deepcycle rechargeable Battery

*Good quality and performance

*More safe for using

*Large capacityPrimatic cells

*Prismatic NMC Cells

*Warranty asured

Type	3.7v 93AH Battery cell
Dimension	T42W172H85(90)mm, T42W172H85(90)mm
Typical Voltage	3.7V
218Typical Capacity	93ah
AC Impedance Resistance	≤0.5mΩ
Standard Charge/Discharge Current	0.5C/0.5C
Standard Charge/Discharge Cut-off Voltage	4.2V/2.75V
Continuous Charge/Discharge Current	1C/1C
Pulse Charge/Discharge Ccurrent（30s）	3C/3C
Recommended SOC Window	10%～90%
Operating Temperature	Charging: 0~60℃ Discharging:-30~60℃
Weight	1.42±0.3kg

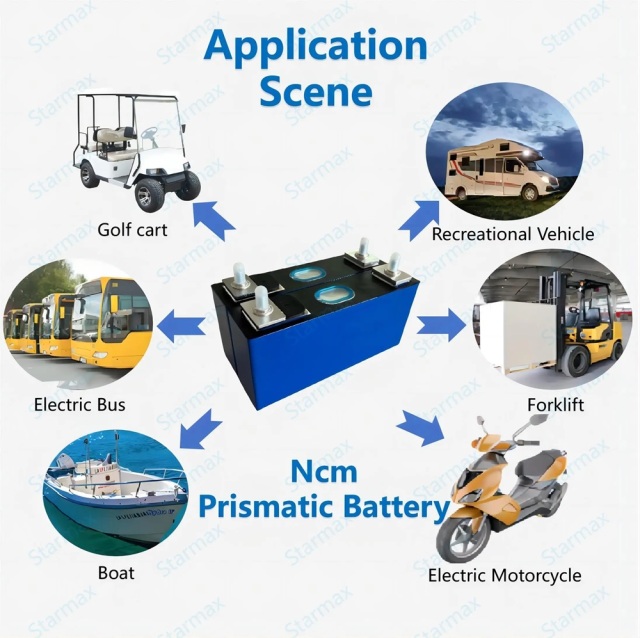

Application:	Engine starting battery, electric bicycle/motorcycle/scooter, golf trolley/carts, power tools...Solar and wind power system, RV, caravan
Size(mm)：	T31W305H104mm

Safety precautions and prohibitions!！

1.Don't leave a cell near a fire or a heat source.
2.Don't throw a cell into a fire.
3.Don't immerse, throw, and wet cell in water / seawater.
4.Don’t store metallic objects (such as keys or screwdriver) near the cell.
5.Don't short circuit (+) and (-) terminals with metallic object intentionally.
6.Don't pierce cells with a sharp object such as a needle, or screwdrivers.
7.Don't heat a part of cells with heating objects such as a soldering iron.
8.Don't hit cells with heavy objects such as a hammer, or heavy weights.
9.Don't put the a cell into a microwave oven, dryer, or a high-pressure container.
10.Don’t expose to water splashing condition.
11.Don’t keep batteries close to baby.

Application

Shrink/Blister card/colour box/clamshell
1. All shipping goods are 100% inspected and packed very well.
2. Customized package available.

Cautions of Battery Operation

* Use high hardness custom sponge to strengthen the battery
* 5 layers of dangerous goods export corrugated carton
* Positive and negative paste insulation tape
* We will label test data on each cell before delivery
* If customer have requirement, we can provide Wooden Packing for shipping.

FAQ

Q1.Do you have any MOQ limit for lithium battery?
A: No MOQ.
Q2. Are the batteries come with bus bars+bolts?
A: Yes, it comes with. We can Laser weld screw stud or nut stud per your needs. Normally, one battery will come with 1pc busbar and 2pcs bolts.
Q3.Do you have the used batteries?
A: Sorry, no, our batteries are all brand new.
Q4. How to proceed an order for lithium ion battery?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5. Can we sign a secrecy agreement if we wanna build a long-term business relationship?
A: Sure, we respect clients requirements, will bring more benefit to you.
Q6:Which shipping method you usually take?
A: Train/Sea DDP, Express, We can also ship with your own shipping agent.
Q7: How do I know whether you've shipped my order or not?
A: Tracking No.will be offered as soon as your order be shipped out. Before that, our sales will be there to check the packing status, photo of the order and let you know the detail shipment information.
