CATL 3.2V 228ah 230ah lifepo4 battery cell prismatic rechargeable lithium ion battery for solar energy system

No.HY-32228
Original CATL For Solar Energy Storage,Tower Tool,Golf Carts.
1.This item is CATL 3.2v Lifepo4 228ah,authentic 100% brand new cells.
2.Manufacturer Automated production&Prodcut consistency.
3.Deep cycle
4.Genuine QR code

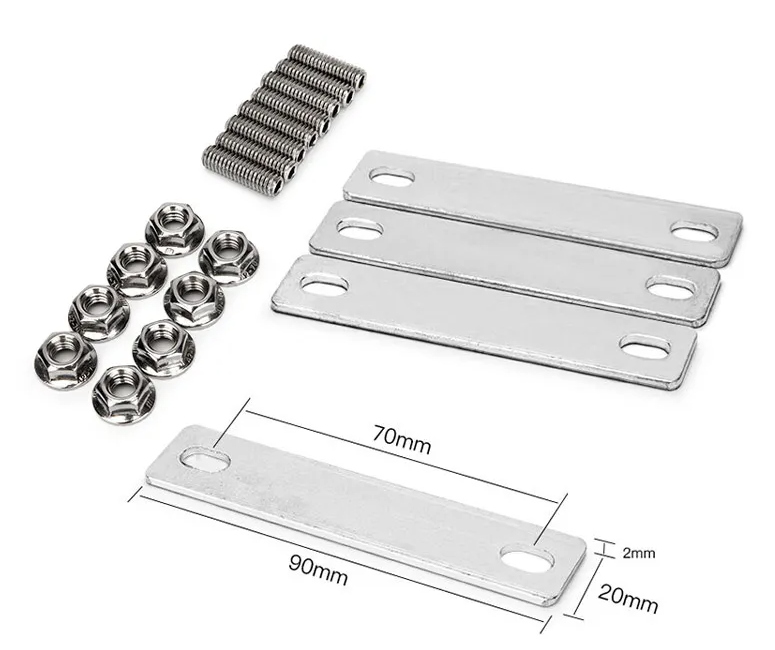

5.Free copper busbar and accessories
6.High capacity and stable discharge voltage
3.2V228ah
CATL battery
  • CATL 3.2V 228ah 230ah lifepo4 battery cell prismatic rechargeable lithium ion battery for solar energy system
  • CATL 3.2V 228ah 230ah lifepo4 battery cell prismatic rechargeable lithium ion battery for solar energy system
  • CATL 3.2V 228ah 230ah lifepo4 battery cell prismatic rechargeable lithium ion battery for solar energy system
  • CATL 3.2V 228ah 230ah lifepo4 battery cell prismatic rechargeable lithium ion battery for solar energy system
Desciption

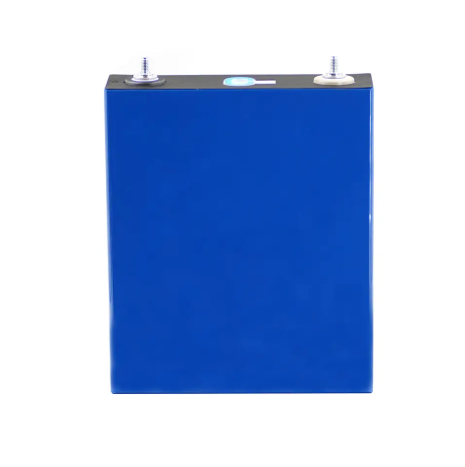

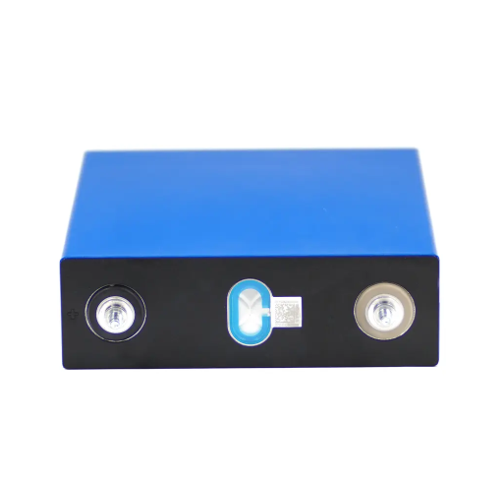

CATL 3.2V 228Ah lifepo4 cell prismatic rechargeable lithium ion battery for solar energy system
Brand New Grade A lithium ion battery cell
Factory directly sell with high quality
100% testing with voltage, internal resistance, isolation testing and capacity testing

Product Type:
Product Name: Lithium ion lifepo4 prismatic battery cell


Technical Parameters:

Anode Material LFP
Weight 4.22kg
Voltage 3.2v
Capacity 228Ah

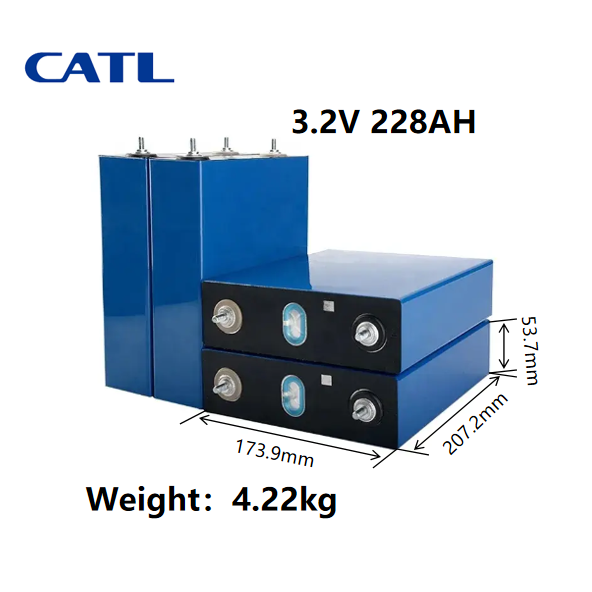

Size 173.9*53.7*207.2mm
Cycle life ≥4000 Times
Internal Resistance ≤ 0.2mΩ
Max discharge current: 2C
Max charge current 1C
Internal resistance less than 0.2mΩ
Charge Temperature(℃) 0~45Centigrade
Discharge Temperature(℃) -20~55Centigrade
Storage Temperature(℃) -20~45Centigrade
Application Home Appliances,Electric Power Systems, Solar Energy Storage Systems


Cautions of Battery Operation
1.Please read the instructions carefully and pay attention to the marks on the surface of battery before use.
2.During operation, please keep the cell away from heat source, fire source. Never beat, drop or shock the cell.
3.Do not directly solder the cell or pierce it with a nail or other sharp object.
4.Do not turn over battery. Keep it from strike, throw, tread or bending.
5.Do not make battery short-circuited, in order to avoid from danger incurring or battery damage.
6.Discarded battery should be well disposed. Do not throw it into the fire or water.

FAQ

Q1.Do you have any MOQ limit for lithium battery?
A: No MOQ.
Q2. Are the batteries come with bus bars+bolts?

A: Yes, it comes with. We can Laser weld screw stud or nut stud per your needs. Normally, one battery will come with 1pc busbar and 2pcs bolts.
Q3.Do you have the used batteries?
A: Sorry, no, our batteries are all brand new.
Q4. How to proceed an order for lithium ion battery?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5. Can we sign a secrecy agreement if we wanna build a long-term business relationship?
A: Sure, we respect clients requirements, will bring more benefit to you.
Q6:Which shipping method you usually take?
A: Train/Sea DDP, Express, We can also ship with your own shipping agent.
Q7: How do I know whether you've shipped my order or not?
A: Tracking No.will be offered as soon as your order be shipped out. Before that, our sales will be there to check the packing status, photo of the order and let you know the detail shipment information.
