Desciption

CATL 3.7v 114ah 120ah prismatic nmc lithium ion battery cells for EV Electric bus vehicles and solar system 12V 24V 48v 100AH

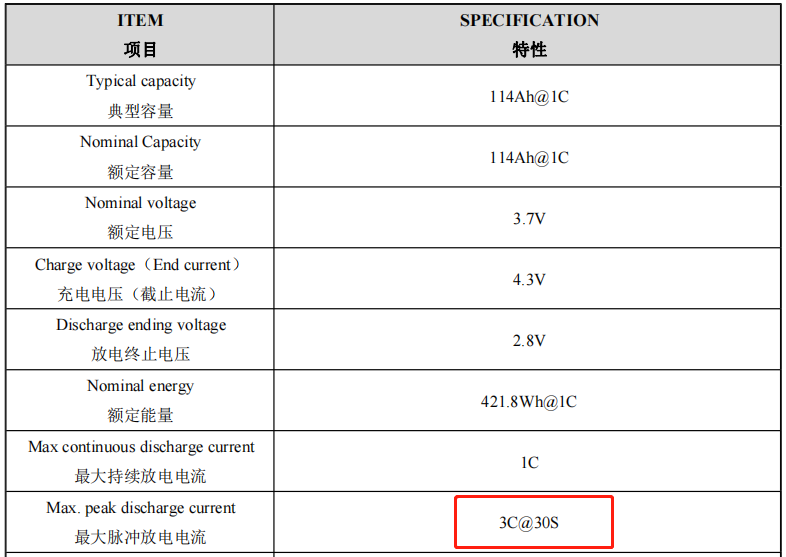

Brand	CATL
Battery type	Prismatic lithium ion battery cell
Nominal Voltage(V)	3.7V
Nominal Capacity	114Ah
Assemble method	Busbars
Weight	1.8kg
1Max charge current	1C
Max discharge current	3C
Standard Charge current	0.2C-0.5C
Charge Voltage	4.2V
Discharge cut-off voltage	2.75V
Weight Energy density	220WH/KG
Internal resistance	≤ 0.40mΩ

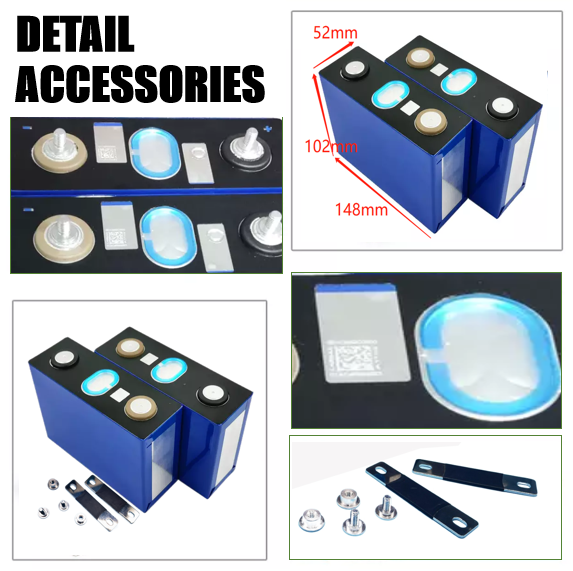

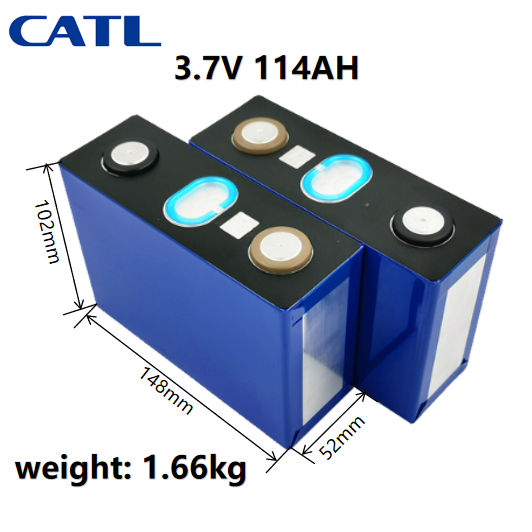

Dimensions	T52H103W148mm
Cycle Life	2500times(80% of initial capacity at 0.2C rate, IEC Standard)
Operating Temperature	Charging: 0~55Centigrade
Discharge Temperature(℃)：	-20~55Centigrade
Storage Temperature	-20~45Centigrade
Connector	Threaded terminals

Safety precautions and prohibitions!！

1.Don't leave a cell near a fire or a heat source.
2.Don't throw a cell into a fire.
3.Don't immerse, throw, and wet cell in water / seawater.
4.Don’t store metallic objects (such as keys or screwdriver) near the cell.
5.Don't short circuit (+) and (-) terminals with metallic object intentionally.
6.Don't pierce cells with a sharp object such as a needle, or screwdrivers.
7.Don't heat a part of cells with heating objects such as a soldering iron.
8.Don't hit cells with heavy objects such as a hammer, or heavy weights.
9.Don't put the a cell into a microwave oven, dryer, or a high-pressure container.
10.Don’t expose to water splashing condition.
11.Don’t keep batteries close to baby.

Application

Packing

Shrink/Blister card/colour box/clamshell
1. All shipping goods are 100% inspected and packed very well.
2. Customized package available.

Cautions of Battery Operation

* Use high hardness custom sponge to strengthen the battery
* 5 layers of dangerous goods export corrugated carton
* Positive and negative paste insulation tape
* We will label test data on each cell before delivery
* If customer have requirement, we can provide Wooden Packing for shipping.

FAQ

Q1.Do you have any MOQ limit for lithium battery?
A: No MOQ.
Q2. Are the batteries come with bus bars+bolts?
A: Yes, it comes with. We can Laser weld screw stud or nut stud per your needs. Normally, one battery will come with 1pc busbar and 2pcs bolts.
Q3.Do you have the used batteries?
A: Sorry, no, our batteries are all brand new.
Q4. How to proceed an order for lithium ion battery?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5. Can we sign a secrecy agreement if we wanna build a long-term business relationship?
A: Sure, we respect clients requirements, will bring more benefit to you.
Q6:Which shipping method you usually take?
A: Train/Sea DDP, Express, We can also ship with your own shipping agent.
Q7: How do I know whether you've shipped my order or not?
A: Tracking No.will be offered as soon as your order be shipped out. Before that, our sales will be there to check the packing status, photo of the order and let you know the detail shipment information.
