Desciption

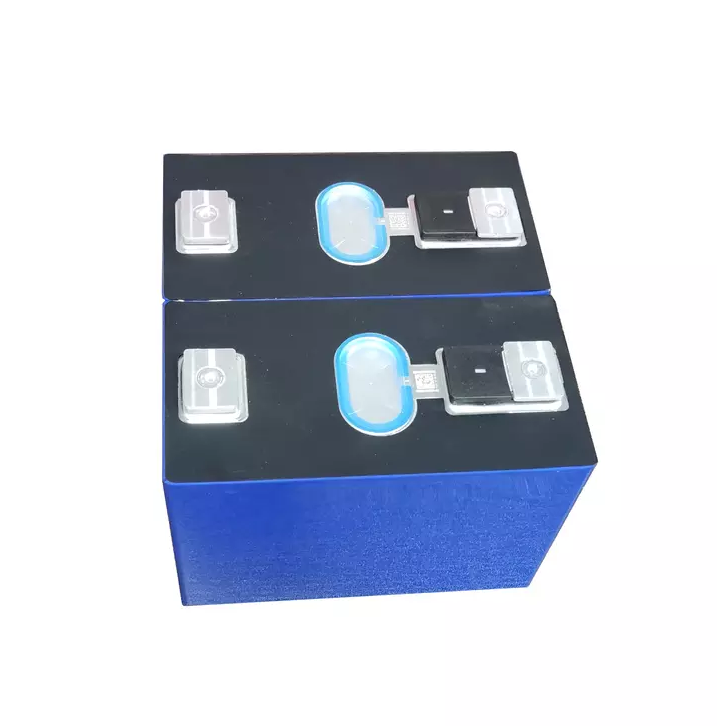

High Capacity Lithium ion CATL 3.7V 150AH Battery Cell NCM Power Battery for Tricycle Motorcycle

*Good quality and performance

*More safe for using

*Large capacityPrimatic cells

*Prismatic NMC Cells

*Warranty asured

items	NMC
Chatge voltage	4.2V
Nominal voltage	3.7V
Nominal capacity	150AH
Charge current	1C
Standard Charging method	CC/CV
Continuous discharge current	1C（150A）
Maximum discharge current	3C（450A）
Discharge cut -off voltage	2.7V
Operating temperature	Charging temperature - 20 ° ~ 60 ° Discharge temperature - 20 ° ~ 60 °
Storage temperature	-20°C∼+60°C
Battery Weight About	2.6 kg
Size	14979103mm
Internal resistance	0.3mΩ
Weight(g)：	About 1.90±50g
Size(mm)：	T30H100L265(mm）

Safety precautions and prohibitions!！

1.Don't leave a cell near a fire or a heat source.
2.Don't throw a cell into a fire.
3.Don't immerse, throw, and wet cell in water / seawater.
4.Don’t store metallic objects (such as keys or screwdriver) near the cell.
5.Don't short circuit (+) and (-) terminals with metallic object intentionally.
6.Don't pierce cells with a sharp object such as a needle, or screwdrivers.
7.Don't heat a part of cells with heating objects such as a soldering iron.
8.Don't hit cells with heavy objects such as a hammer, or heavy weights.
9.Don't put the a cell into a microwave oven, dryer, or a high-pressure container.
10.Don’t expose to water splashing condition.
11.Don’t keep batteries close to baby.

Application

Packing

Shrink/Blister card/colour box/clamshell
1. All shipping goods are 100% inspected and packed very well.
2. Customized package available.

Cautions of Battery Operation

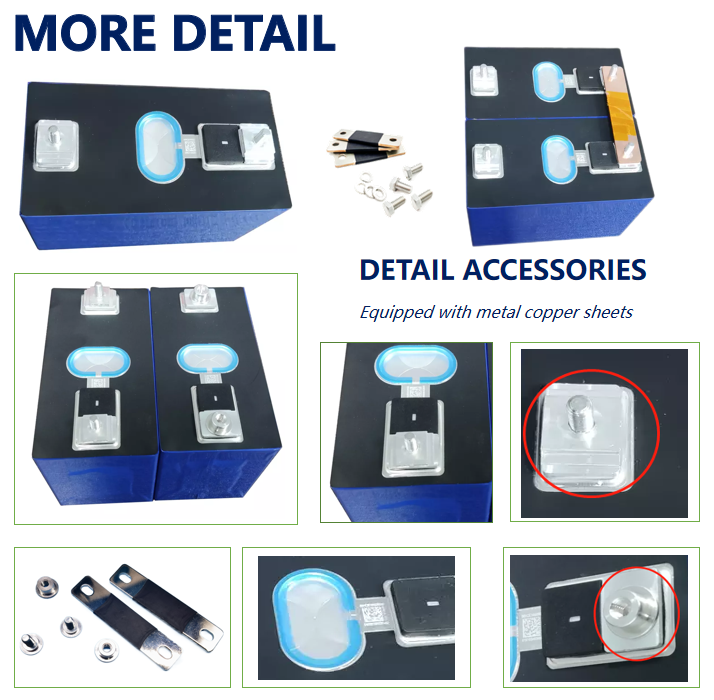

* Use high hardness custom sponge to strengthen the battery
* 5 layers of dangerous goods export corrugated carton
* Positive and negative paste insulation tape

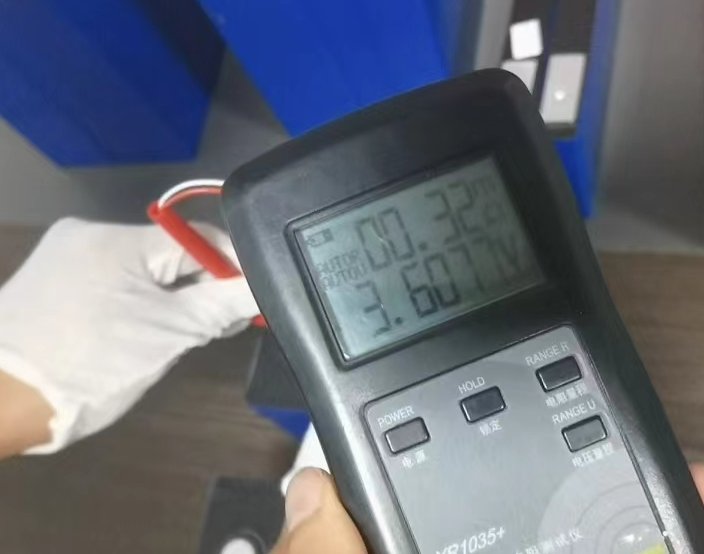

* We will label test data on each cell before delivery
* If customer have requirement, we can provide Wooden Packing for shipping.

FAQ

Q1.Do you have any MOQ limit for lithium battery?
A: No MOQ.
Q2. Are the batteries come with bus bars+bolts?
A: Yes, it comes with. We can Laser weld screw stud or nut stud per your needs. Normally, one battery will come with 1pc busbar and 2pcs bolts.
Q3.Do you have the used batteries?
A: Sorry, no, our batteries are all brand new.
Q4. How to proceed an order for lithium ion battery?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5. Can we sign a secrecy agreement if we wanna build a long-term business relationship?
A: Sure, we respect clients requirements, will bring more benefit to you.
Q6:Which shipping method you usually take?
A: Train/Sea DDP, Express, We can also ship with your own shipping agent.
Q7: How do I know whether you've shipped my order or not?
A: Tracking No.will be offered as soon as your order be shipped out. Before that, our sales will be there to check the packing status, photo of the order and let you know the detail shipment information.
