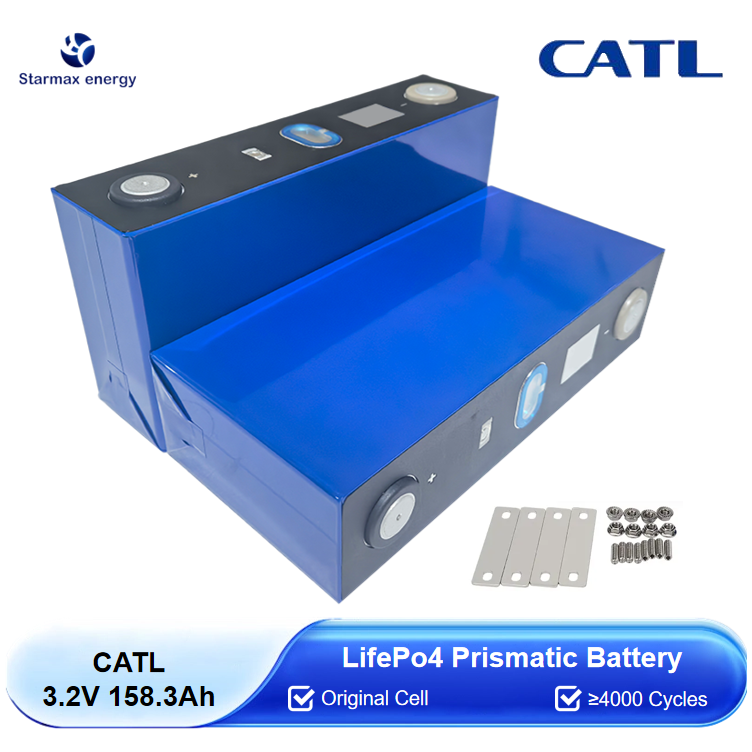

Starmax Catl 3.2V 158.3Ah Rechargeable Prismatic Cell 4000 Cycles Lithium Ion Batteries LifePo4 Suppliers

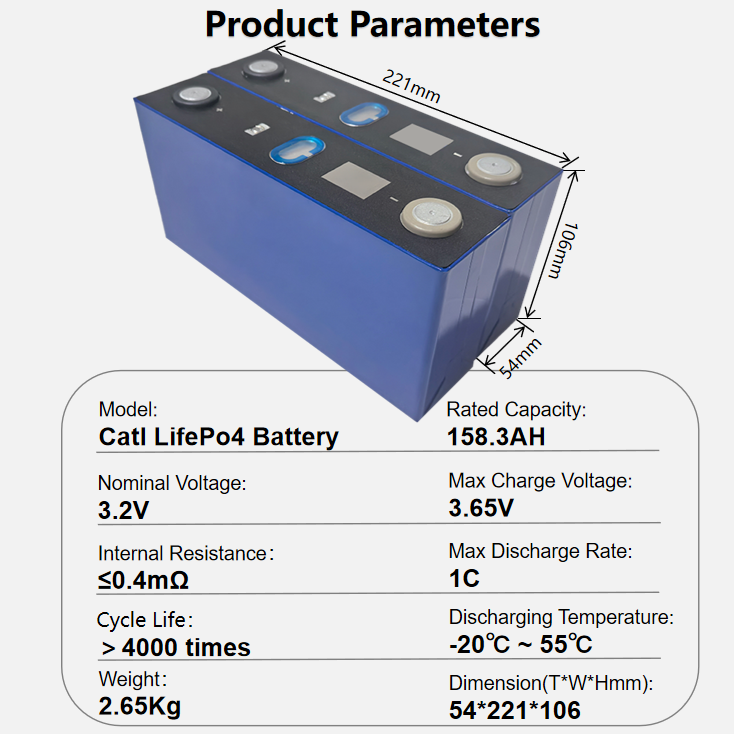

| Anode Material |
LifePo4 |
| Weight |
2.65kg |
| Voltage |
3.2V |
| Capacity |
158.3Ah |

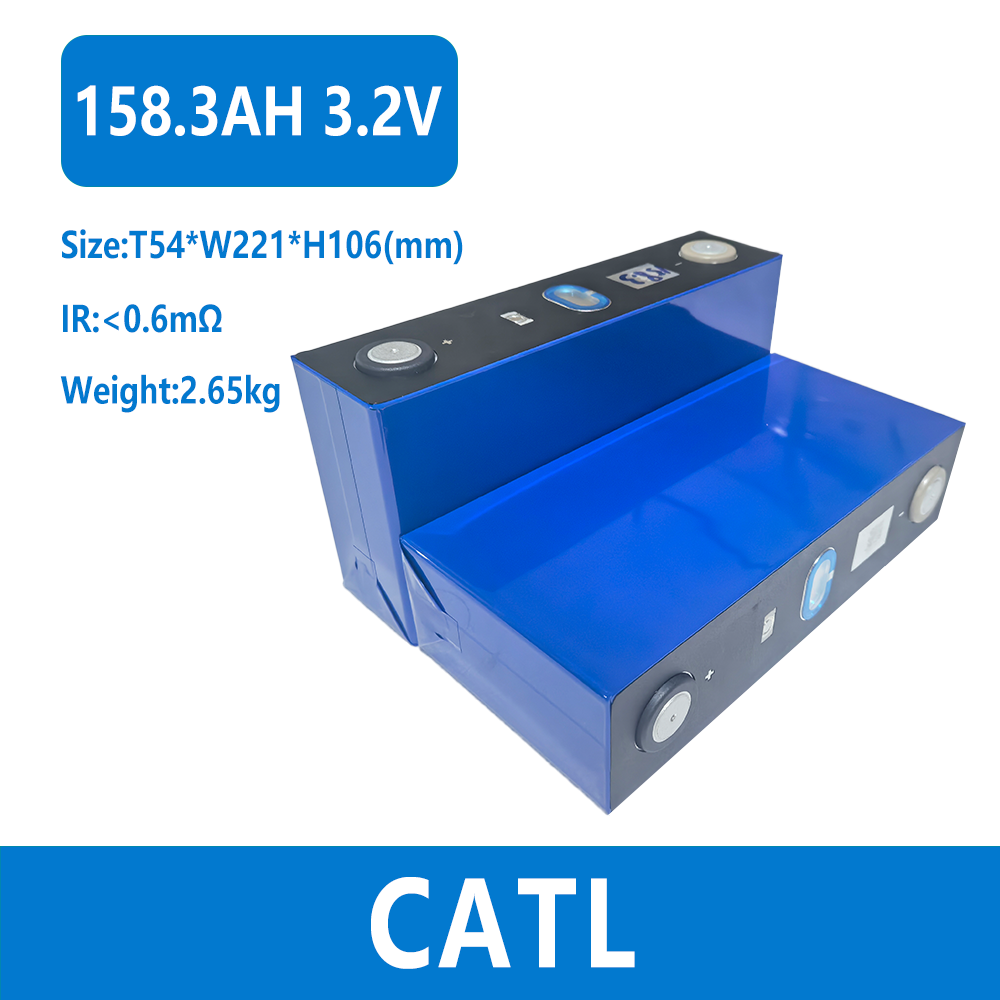

| Size |
T54*W221*H106(mm) |
| Cycle life |
≥4000 Times |

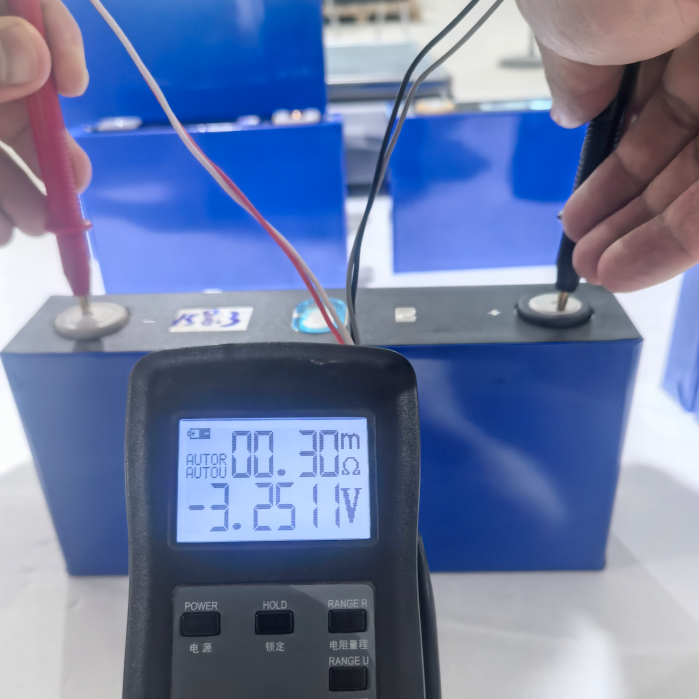

| Internal Resistance |
≤ 0.3mΩ |
| Max discharge current: |
1C |
| Max charge current |
0.5C |
| Internal resistance |
less than 0.4mΩ |
| Charge Temperature(℃) |
0~55Centigrade |
| Discharge Temperature(℃) |
-20~55Centigrade |
| Application |
Home Appliances,Electric Power Systems, Solar Energy Storage Systems |
Product Advantages：
1. High Energy Density：
With a nominal voltage of 3.2V and capacity of 158.3Ah, a single cell delivers over 500Wh of energy, ensuring strong and enduring power support.
2. Long Cycle Life：
Utilizes Lithium Iron Phosphate (LFP) chemistry, offering a long cycle life (often over 4000 cycles), which reduces long-term costs and provides excellent economy.
3. Excellent Thermal Stability & Safety：

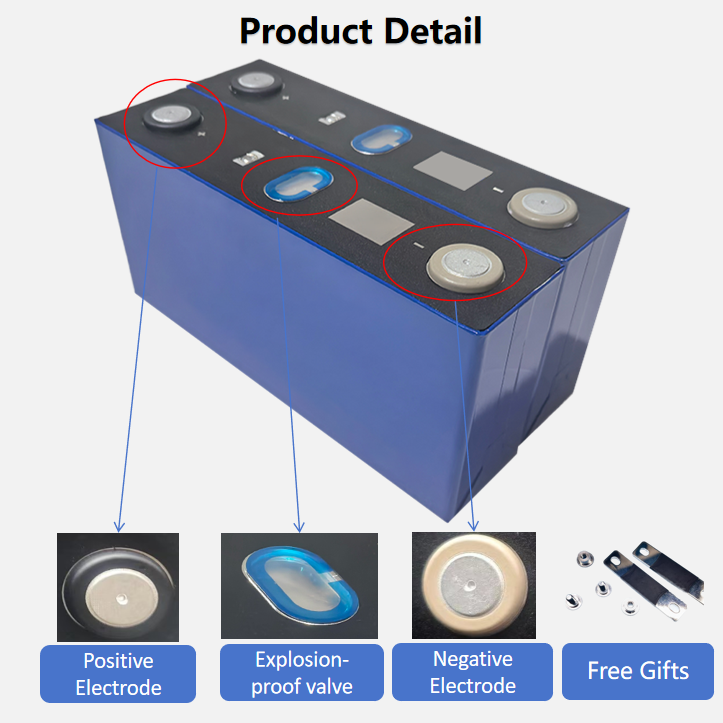

LFP material offers inherent high thermal stability. Coupled with an aluminum casing and pressure relief valve design, it ensures safety and reliability across a wide temperature range operating temperature -20°C to 55°C.
4. Low Internal Resistance & High Consistency：
Low internal resistance (e.g., ≤0.4mΩ for similar 161Ah cell) ensures high charge-discharge efficiency and low heat generation. High consistency among cells enhances stability and performance in packs.
Why Choose LiFePO4?
Safety: LiFePO4 is one of the safest lithium battery technologies available, resistant to fire and thermal runaway.
Long Cycle Life: With over 4,000 cycles, LiFePO4 batteries have a significantly longer lifespan compared to other lithium or lead-acid batteries.
Eco-Friendly: No toxic chemicals, making it an environmentally friendly option for energy storage.
Stable Performance: LiFePO4 offers excellent stability in various temperatures and environments, ensuring consistent power delivery.

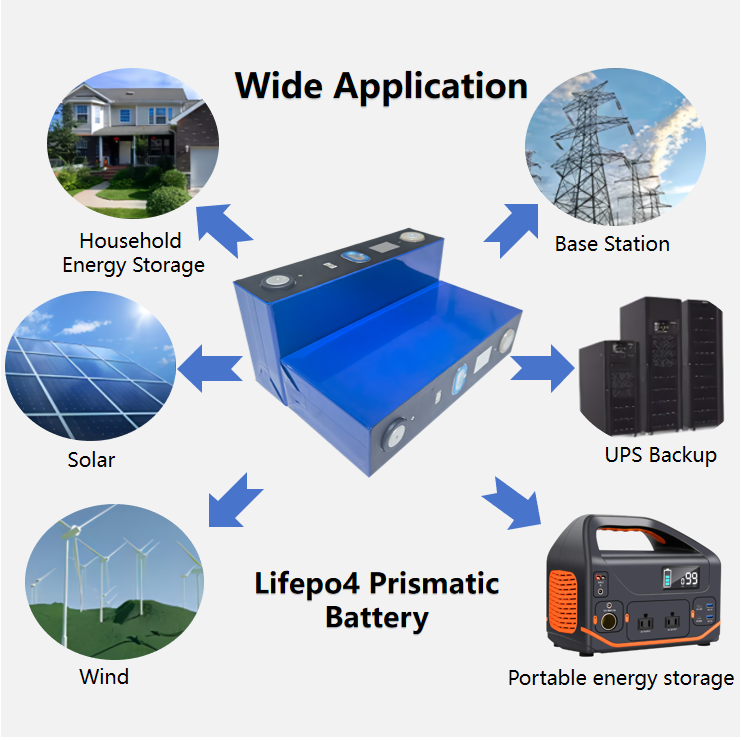

Applications
Home Energy Storage: Perfect for storing solar energy or powering homes during peak demand hours.
Solar Power Systems: Ideal for integration with solar panels, ensuring continuous power even in off-grid scenarios.
Commercial Energy Storage: Use in small businesses or commercial setups for energy independence and cost savings.
Electric Vehicles and Marine Use: Can also be adapted for electric vehicles, boats, and other battery-powered vehicles.
Cautions of Battery Operation
1.Please read the instructions carefully and pay attention to the marks on the surface of battery before use.
2.During operation, please keep the cell away from heat source, fire source. Never beat, drop or shock the cell.
3.Do not directly solder the cell or pierce it with a nail or other sharp object.
4.Do not turn over battery. Keep it from strike, throw, tread or bending.
5.Do not make battery short-circuited, in order to avoid from danger incurring or battery damage.
6.Discarded battery should be well disposed. Do not throw it into the fire or water.
FAQ
Q1.Do you have any MOQ limit for lithium batteries?
No MOQ.
Q2. Do the batteries come with bus bars and belts?
Yes, it comes with. We can Laser weld screw studs or nut studs per your needs. Normally, one battery will come witha 1pc busbar and 2pcs bolts.
Q3.Do you have the used batteries?
Sorry, no, our batteries are all brand new.
Q4. How to proceed with an order for lithium ion battery?
Firstly let us know your requirements or application.
Secondly, We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places a deposit for a formal order.
Fourthly We arrange the production.
Q5. Can we sign a secrecy agreement if we wanna build a long-term business relationship?
Sure, we respect the client's requirements, which will bring more benefit to you.
Q6. Which shipping method do you usually take?
Train/Sea DDP, Express, We can also ship with your own shipping agent.
Q7: How do I know whether you've shipped my order or not?
Tracking No.will be offered as soon as your order is shipped out. Before that, our sales will be there to check the packing status, and photo of the order and let you know the detailed shipment information.
