| Brand Name： | BYD |
| Battery Type： | Lifepo4 Prismatic Battery Cells |
| Nominal Capacity(Ah)： | 302AH |
| Nominal Voltage(V)： | 3.2V |
| Max Charge Voltage(V)： | 3.65V |
| Discharge Cut-off Voltage(V)： | 2.5V |
| Max Charge rate： | 1C |
| Max Discharge rate： | 1C |
| Internal Resistance： | ≤0.7mΩ |
| Charge Temperature(℃)： | 0°C~60°C |
| Discharge Temperature(℃)： | -20°C~60°C |
| Cycle life： | More than5000 times |
| Weight: |
5.54 kg |

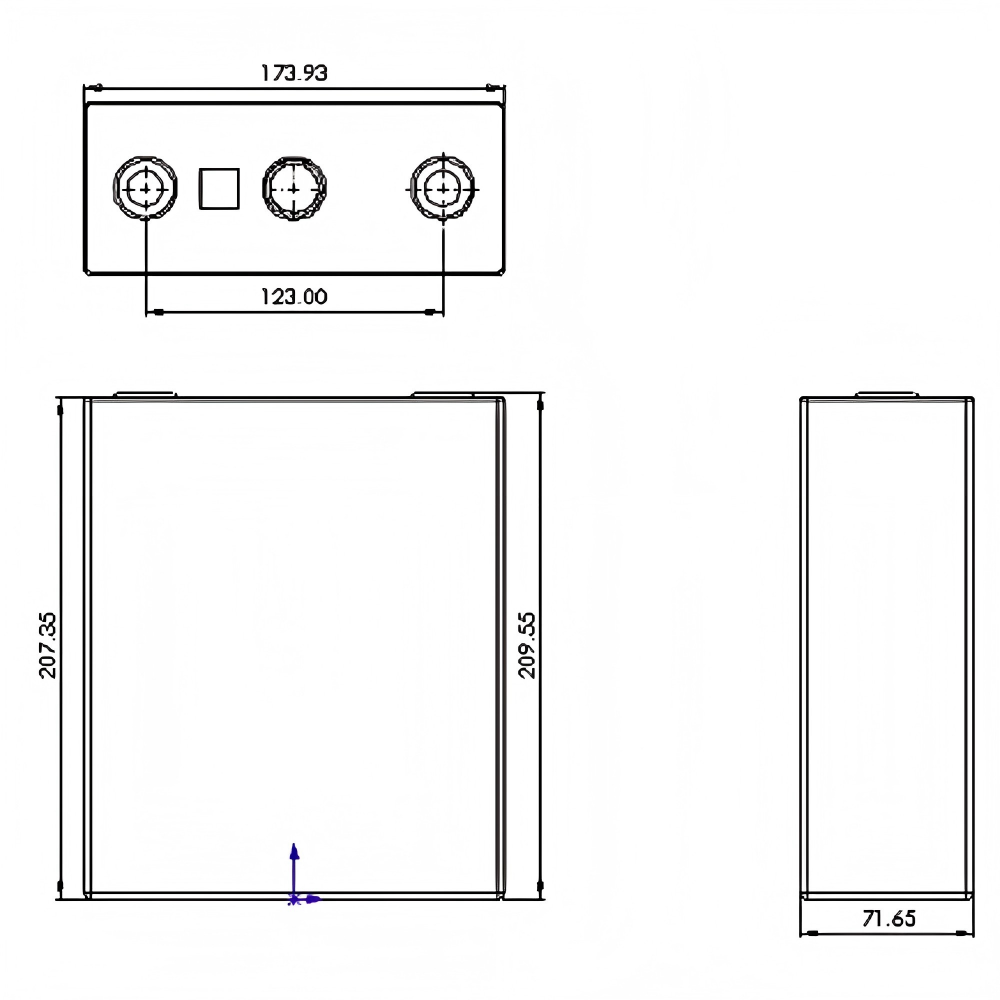

| Size(mm)： | T71.7*W174*H207.4(mm) |
| Certification： |
CE,UL,UN38.3,MSDS |
3. Long Cycle Life Potential
Although the specific cycle life number isn't fully shown, LiFePO₄ technology is known for long - lasting performance, and with proper use, this battery can support numerous charge - discharge cycles.
1. Household Energy Storage
The BYD 3.2V 302AH LiFePO₄ prismatic battery is well - suited for household energy storage, allowing homeowners to store excess energy from the grid or renewable sources for later use.
2. Telecommunication Base Stations
Its high capacity and stable performance make it an excellent choice for powering telecommunication base stations, ensuring uninterrupted communication services.
3. UPS Backup Systems
In uninterruptible power supply (UPS) backup systems, this battery can provide reliable power during outages, protecting critical equipment and data.
4. Renewable Energy Integration
It can be used in conjunction with solar and wind energy systems, storing the energy generated from these renewable sources for consistent power supply.
• Our Services: OEM/ODM and Customized Solutions
• We provide customized lithium ion battery solutions to meet your specific application needs
Q:Can I have samples to test? And what is lead time for sample order?
A:Yes, we can supply samples, the lead time for samples is 7-10 days. And buyers pay for sample cost and shipping cost.
Q:Do you provide after-sales serive?
A:Yes, We offer 5 years warranty for lifepo4 battery, and 1 years for Nmc battery, increase the cost to 5-10 years. For damaged due to non-human factors, we will refund or send new battery for replacement after providing pictures or videos for evidence.
Q:What is your company's advantage?
A:We only supply high level quality of lithium battery and we gurantee on-time shipment, we also provide excellent after-sales service.
Q:Do you accept OEM/ODM?
A:Yes, it is avaliable.

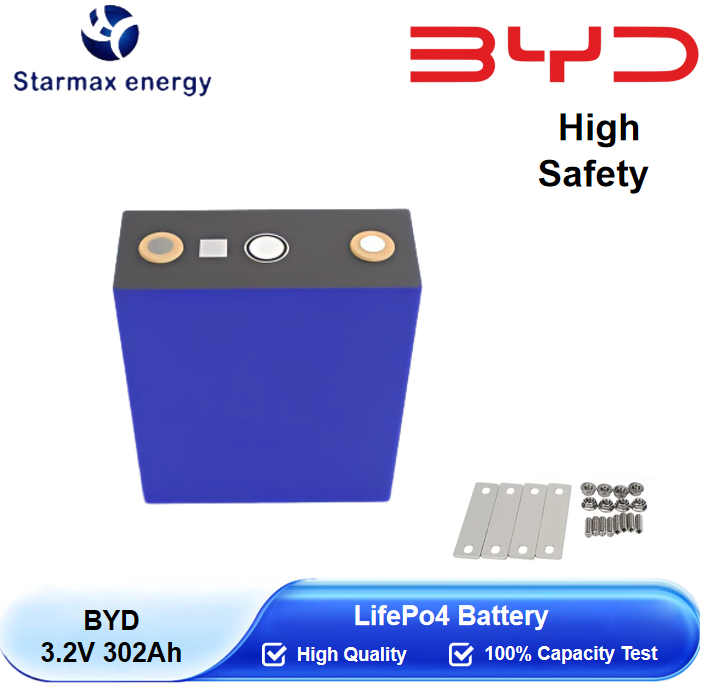

Q:Are the batteries come with bus bars + nuts?
A:This price includes busbars and nuts. Each cell will be provided with one set of busbars and nuts (e.g., if you purchase 4 cells, we will deliver 4 cells with 4 busbars and 8 nuts). Should you require further details, please feel free to contact us directly.
Q:Are you battery real capacity?
A:All of our battery cells with Grade A, 100% new and real capacity.
Q:Are you a factory or a trading company?
A:We are a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer, welcome to visit.
Q:What kind of certificates do you have?
A:We can provide CE, ROHS, UL, FCC, IEC, MSDS, UN38.3 & etc. if your need.
1.Please read the instructions carefully and pay attention to the marks on the surface of battery before use.
2.During operation, please keep the cell away from heat source, fire source. Never beat, drop or shock the cell.
3.Do not directly solder the cell or pierce it with a nail or other sharp object.
4.Do not turn over battery. Keep it from strike, throw, tread or bending.
5.Do not make battery short-circuited, in order to avoid from danger incurring or battery damage.
6.Discarded battery should be well disposed. Do not throw it into the fire or water.
