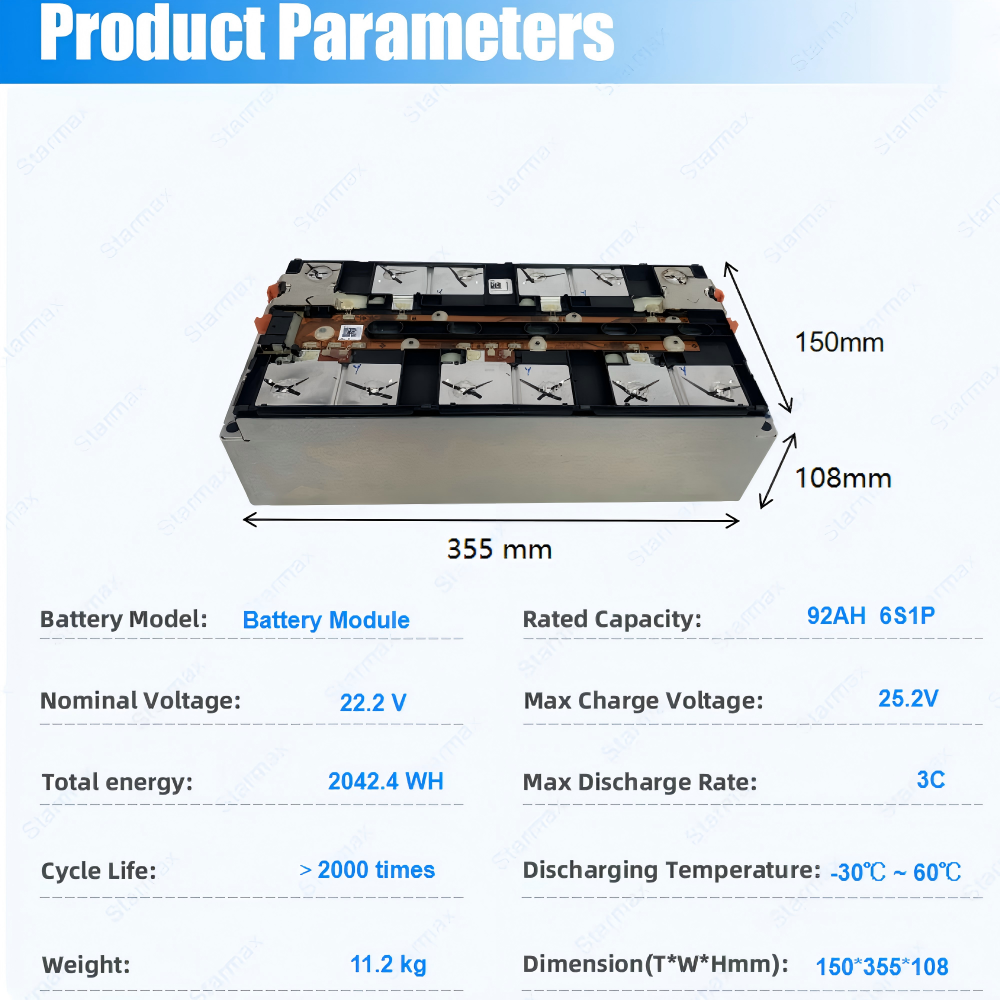

| Brand Name： | CATL |
| Battery Type： | Battery Moudule |
| Nominal Capacity(Ah)： | 92AH |
| Nominal Voltage(V)： | 22.2V |
| Max Charge Voltage(V)： | 25.2V |
| Discharge Cut-off Voltage(V)： | 16.5V |
| Max Charge rate： | 1C |
| Max Discharge rate： | 3C |
| Charge Temperature(℃)： | 0°C~55°C |
| Discharge Temperature(℃)： | -30°C~55°C |
| Cycle life： | More than 2000 times |
| Weight: |
11.2 kg |
| Size(mm)： | T150*W355*H108(mm) |
| Certification： |
CE,UL,UN38.3,MSDS |
3. Durable and Long
It has a cycle life of more than 2000 times, which means it can endure repeated charging and discharging cycles over an extended period. This feature guarantees reliable performance for continuous use in various scenarios.

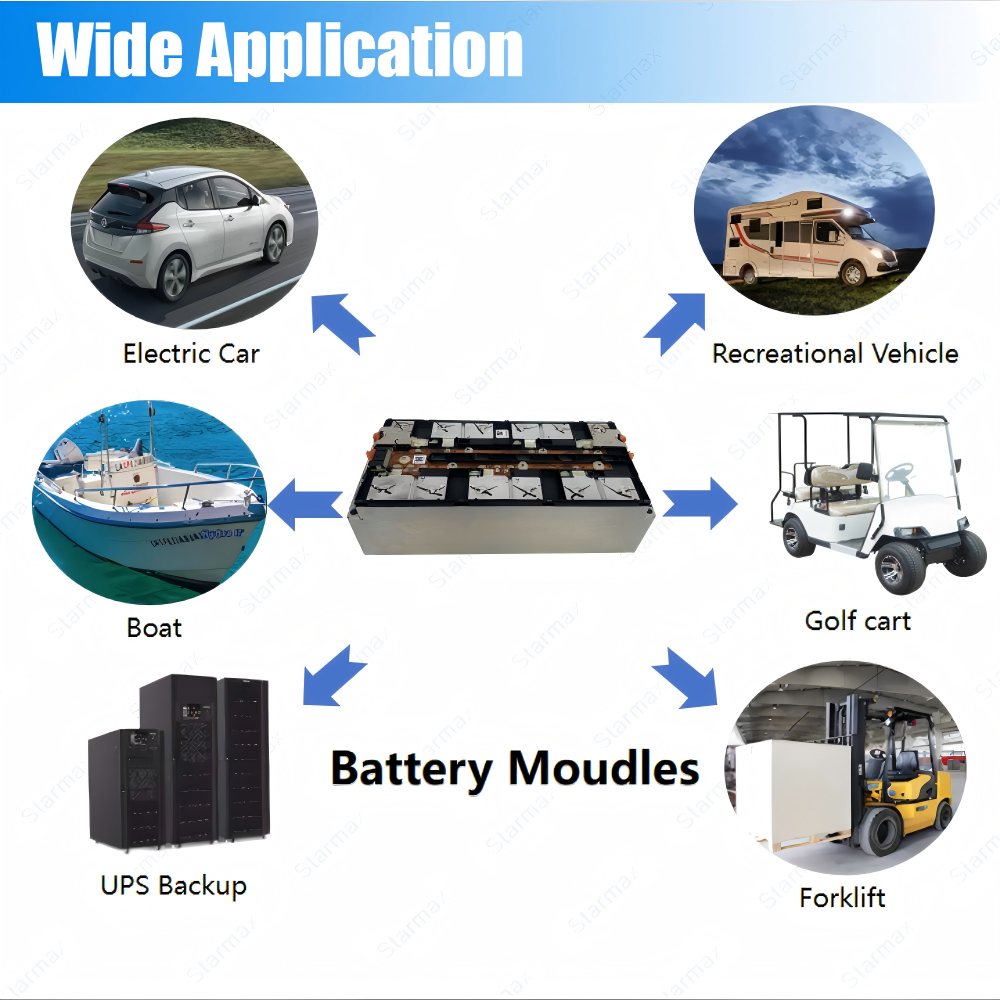

1. Electric Forklifts
The high capacity and 3C discharge rate of the CATL 22.2V 92AH battery module make it suitable for powering electric forklifts. It can provide the necessary energy for forklifts to handle heavy - duty lifting and transportation tasks in warehouses and factories.
2. Golf Carts
This battery module is well - suited for golf carts. Its 92AH capacity ensures a long driving range on the golf course, and the 3C discharge rate allows for quick acceleration when needed, enhancing the overall performance of the golf cart.
3. Recreational Vehicles
For RVs, the CATL 22.2V 92AH battery module can serve as a reliable power source for various onboard appliances and systems, such as lighting, refrigeration, and entertainment systems, providing a comfortable travel experience.
4. UPS Backup Systems
In UPS (Uninterruptible Power Supply) backup systems, the battery module’s long cycle life and stable power output make it an excellent choice. It can ensure continuous power supply to critical equipment during power outages, protecting data and preventing equipment damage.
• Our Services: OEM/ODM and Customized Solutions
• We provide customized lithium ion battery solutions to meet your specific application needs
1.Please read the instructions carefully and pay attention to the marks on the surface of battery before use.
2.During operation, please keep the cell away from heat source, fire source. Never beat, drop or shock the cell.
3.Do not directly solder the cell or pierce it with a nail or other sharp object.
4.Do not turn over battery. Keep it from strike, throw, tread or bending.
5.Do not make battery short-circuited, in order to avoid from danger incurring or battery damage.
6.Discarded battery should be well disposed. Do not throw it into the fire or water.
