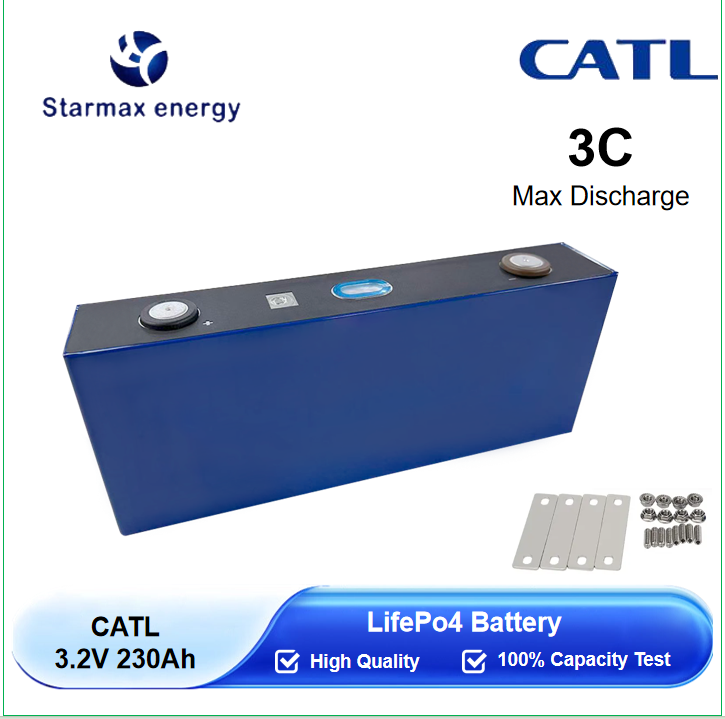

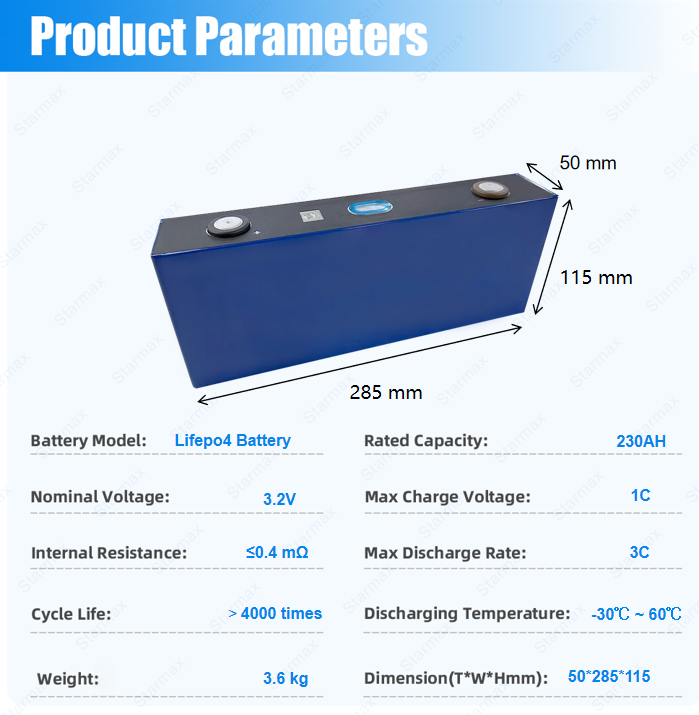

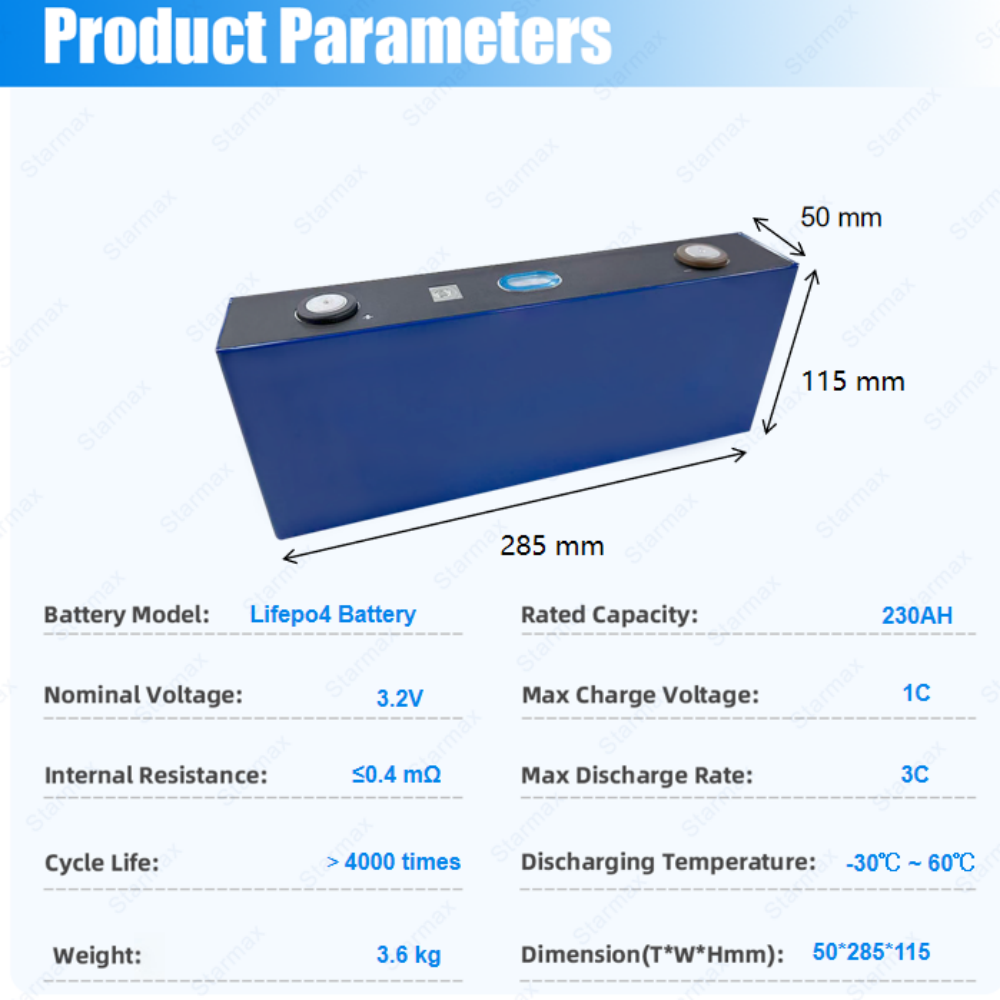

| Brand Name： | CATL |
| Battery Type： | Lifepo4 Prismatic Battery Cells |
| Nominal Capacity(Ah)： | 230AH |
| Nominal Voltage(V)： | 3.2V |
| Max Charge Voltage(V)： | 3.65V |
| Discharge Cut-off Voltage(V)： | 2.5V |
| Max Charge rate： | 1C |
| Max Discharge rate： | 3C |
| Internal Resistance： | ≤0.4mΩ |
| Charge Temperature(℃)： | 0°C~60°C |
| Discharge Temperature(℃)： | -20°C~60°C |
| Cycle life： | More than 4000 times |
| Weight: |
3.6kg |
| Size(mm)： | T50*W285*H115(mm) |
| Certification： |
CE,UL,UN38.3,MSDS |
3.Low Internal Resistance
With an internal resistance of ≤0.4mΩ, the battery reduces energy loss during the charge and discharge processes. This leads to higher energy conversion efficiency, ensuring that more of the stored energy can be effectively utilized.

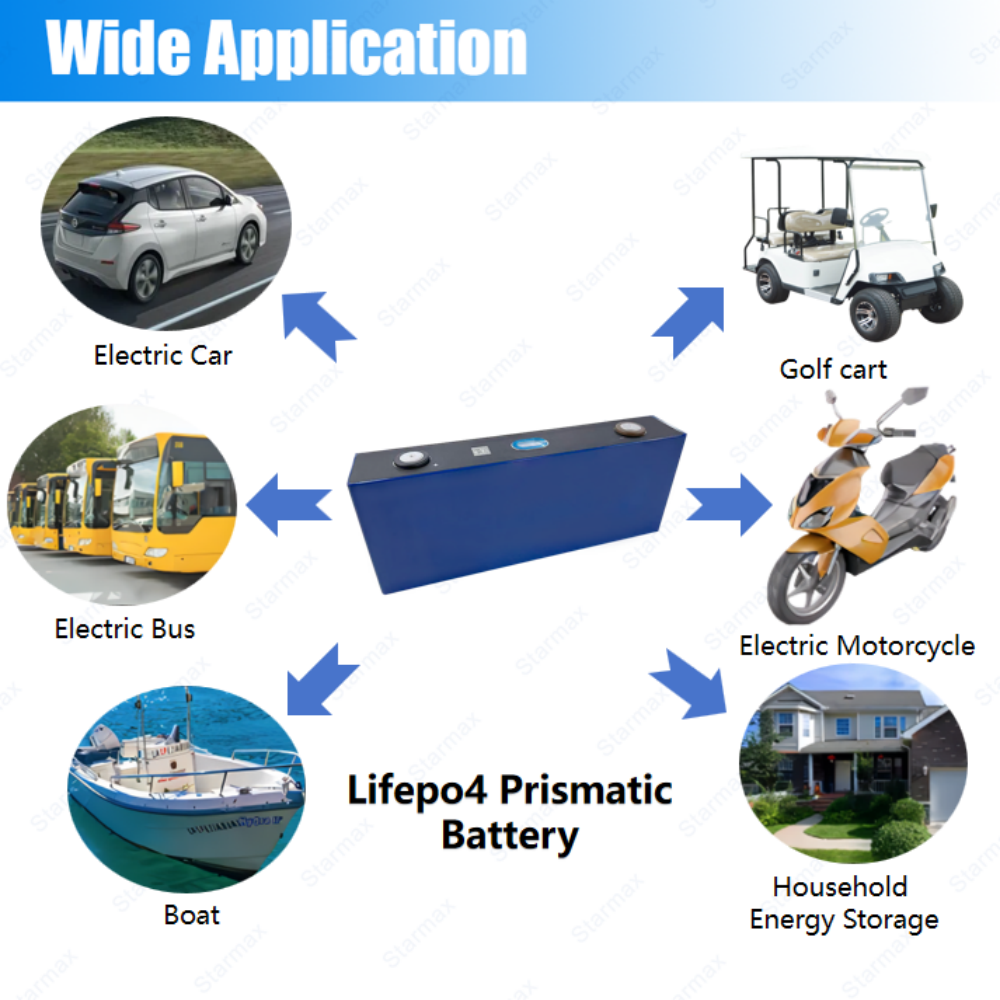

1. Electric Vehicle (EV) Propulsion
The high capacity (230Ah) and appropriate discharge rate (3C) make this LiFePO₄ cell ideal for powering electric cars, golf carts, electric motorcycles, and electric buses. It can provide the necessary energy for these vehicles to achieve long driving ranges and reliable performance.
2. Marine Energy Storage
For boats, this prismatic cell can serve as a dependable energy source for onboard electrical systems, such as navigation equipment, lighting, and auxiliary power. Its wide temperature range also makes it suitable for marine environments where temperature fluctuations can occur.
3. Household Energy Storage
In home energy storage systems, the 230Ah capacity allows for the storage of excess energy generated from renewable sources (like solar panels) or from the grid during off - peak hours. This stored energy can then be used to power household appliances during peak hours or in case of power outages.
4. Commercial Energy Storage
In commercial settings, such as offices, factories, or small businesses, this battery can used beto store energy for backup power supply during grid failures or to optimize energy usage by storing energy when it is cheap and using it when it is expensive.
• Our Services: OEM/ODM and Customized Solutions
• We provide customized lithium ion battery solutions to meet your specific application needs
Q:Can I have samples to test? And what is lead time for sample order?
A:Yes, we can supply samples, the lead time for samples is 7-10 days. And buyers pay for sample cost and shipping cost.
Q:Do you provide after-sales serive?
A:Yes, We offer 5 years warranty for lifepo4 battery, and 1 years for Nmc battery, increase the cost to 5-10 years. For damaged due to non-human factors, we will refund or send new battery for replacement after providing pictures or videos for evidence.
Q:What is your company's advantage?
A:We only supply high level quality of lithium battery and we gurantee on-time shipment, we also provide excellent after-sales service.
Q:Do you accept OEM/ODM?
A:Yes, it is avaliable.
Q:Are the batteries come with bus bars + nuts?
A:This price includes busbars and nuts. Each cell will be provided with one set of busbars and nuts (e.g., if you purchase 4 cells, we will deliver 4 cells with 4 busbars and 8 nuts). Should you require further details, please feel free to contact us directly.
Q:Are you battery real capacity?
A:All of our battery cells with Grade A, 100% new and real capacity.
Q:Are you a factory or a trading company?
A:We are a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer, welcome to visit.
Q:What kind of certificates do you have?
A:We can provide CE, ROHS, UL, FCC, IEC, MSDS, UN38.3 & etc. if your need.
1.Please read the instructions carefully and pay attention to the marks on the surface of battery before use.
2.During operation, please keep the cell away from heat source, fire source. Never beat, drop or shock the cell.
3.Do not directly solder the cell or pierce it with a nail or other sharp object.
4.Do not turn over battery. Keep it from strike, throw, tread or bending.
5.Do not make battery short-circuited, in order to avoid from danger incurring or battery damage.
6.Discarded battery should be well disposed. Do not throw it into the fire or water.
