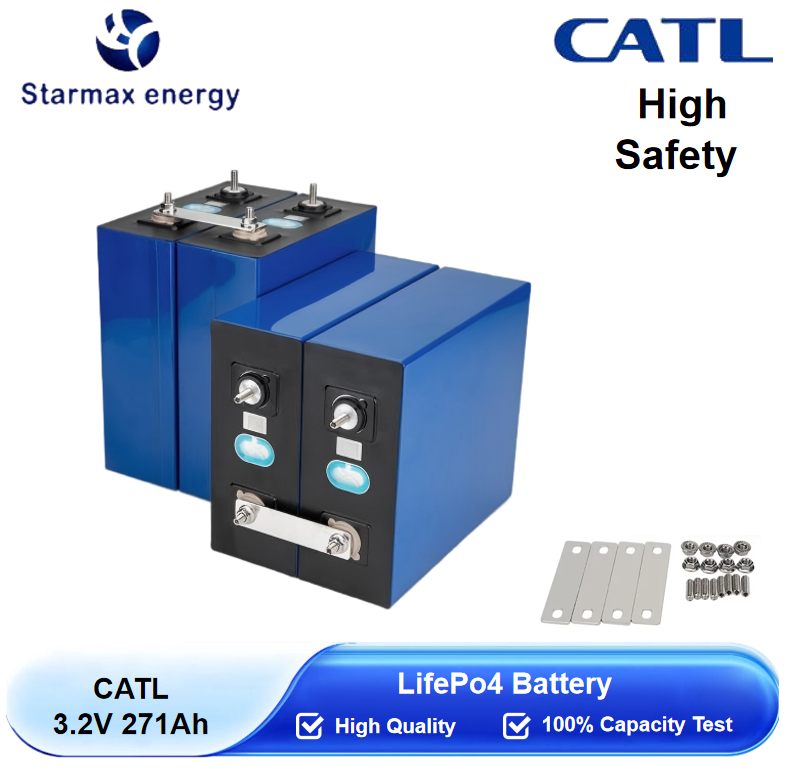

| Brand Name： | CATL |
| Battery Type： | Lifepo4 Prismatic Battery Cells |
| Nominal Capacity(Ah)： | 271AH |
| Nominal Voltage(V)： | 3.2V |
| Max Charge Voltage(V)： | 3.65V |
| Discharge Cut-off Voltage(V)： | 2.5V |
| Max Charge rate： | 1C |
| Max Discharge rate： | 3C |
| Internal Resistance： | ≤0.14mΩ |
| Charge Temperature(℃)： | 0°C~60°C |
| Discharge Temperature(℃)： | -20°C~60°C |
| Cycle life： | More than3000 times |
| Weight: |
5.74 kg |
| Size(mm)： | T71.6*W173.6*H207.3(mm) |
| Certification： |
CE,UL,UN38.3,MSDS |
3. Flexible Charge/Discharge Rates
It supports a standard charge/discharge current of 0.5C and a maximum continuous charge/discharge current of 1C. Moreover, it can handle a short - pulse discharge current of up to 3C, meeting various load requirements.
1. Electric Vehicles
The high capacity and power - delivery capability of the CATL 3.2V 271AH LiFePO₄ prismatic battery make it ideal for electric cars, golf carts, electric motorcycles, and electric buses, providing long - lasting and stable power for transportation.
2. Marine Applications
For boats and other marine vessels, this battery can store sufficient energy to support navigation systems, onboard electronics, and even propulsion systems, ensuring reliable power supply during maritime operations.
3. Household Energy Storage
In home energy storage systems, the CATL 3.2V 271AH LiFePO₄ prismatic battery can store excess energy from solar panels or the grid, which can be used during peak hours or power outages to meet household electricity needs.
4. Renewable Energy Systems
When combined with solar or wind energy systems, the battery can store the generated renewable energy, helping to balance energy supply and demand and improve the overall efficiency of renewable energy utilization.
• Our Services: OEM/ODM and Customized Solutions
• We provide customized lithium ion battery solutions to meet your specific application needs
Q:Can I have samples to test? And what is lead time for sample order?
A:Yes, we can supply samples, the lead time for samples is 7-10 days. And buyers pay for sample cost and shipping cost.
Q:Do you provide after-sales serive?
A:Yes, We offer 5 years warranty for lifepo4 battery, and 1 years for Nmc battery, increase the cost to 5-10 years. For damaged due to non-human factors, we will refund or send new battery for replacement after providing pictures or videos for evidence.
Q:What is your company's advantage?
A:We only supply high level quality of lithium battery and we gurantee on-time shipment, we also provide excellent after-sales service.
Q:Do you accept OEM/ODM?
A:Yes, it is avaliable.
Q:Are the batteries come with bus bars + nuts?
A:This price includes busbars and nuts. Each cell will be provided with one set of busbars and nuts (e.g., if you purchase 4 cells, we will deliver 4 cells with 4 busbars and 8 nuts). Should you require further details, please feel free to contact us directly.
Q:Are you battery real capacity?
A:All of our battery cells with Grade A, 100% new and real capacity.
Q:Are you a factory or a trading company?
A:We are a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer, welcome to visit.
Q:What kind of certificates do you have?
A:We can provide CE, ROHS, UL, FCC, IEC, MSDS, UN38.3 & etc. if your need.
1.Please read the instructions carefully and pay attention to the marks on the surface of battery before use.
2.During operation, please keep the cell away from heat source, fire source. Never beat, drop or shock the cell.
3.Do not directly solder the cell or pierce it with a nail or other sharp object.
4.Do not turn over battery. Keep it from strike, throw, tread or bending.
5.Do not make battery short-circuited, in order to avoid from danger incurring or battery damage.
6.Discarded battery should be well disposed. Do not throw it into the fire or water.
