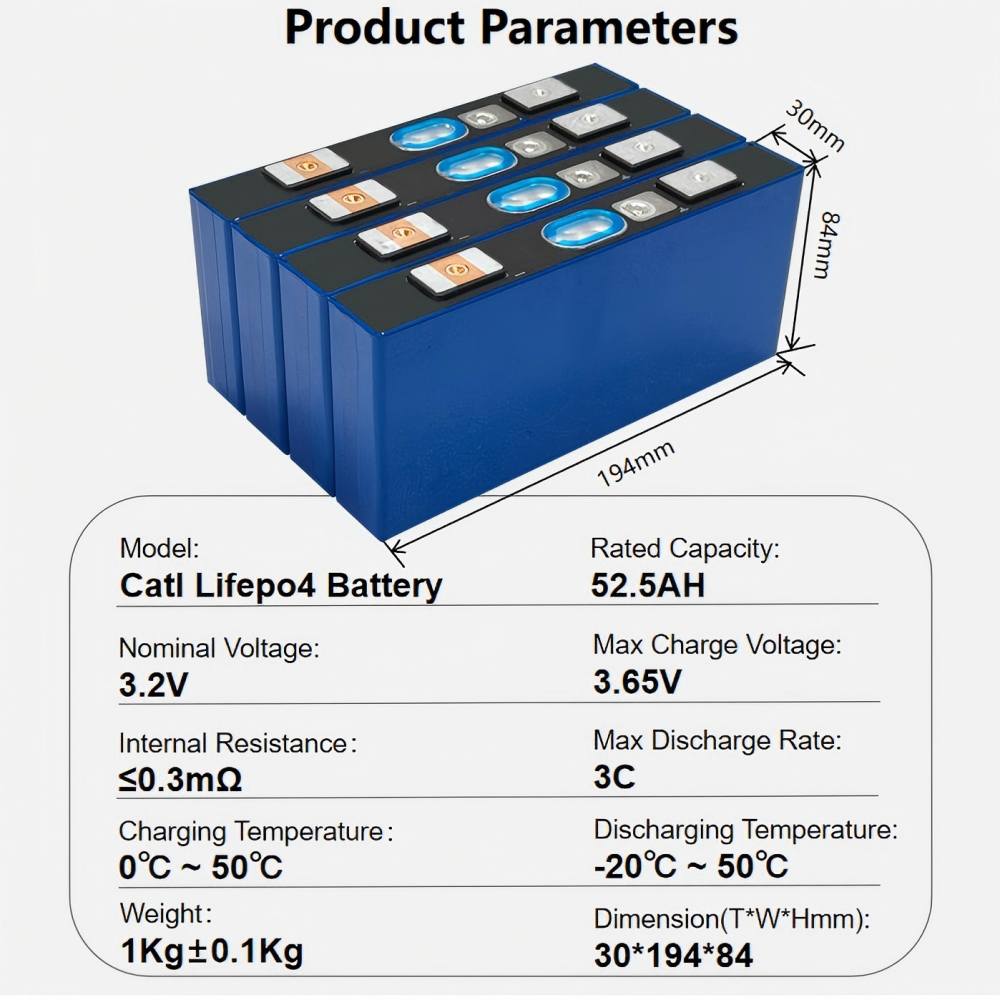

| Items | Parameter |
|
Manufacturer |
Catl |
|
Model No. |
HY-3252.5 |
|
Nominal Voltage |
3.2V |
|
Charge Cut-off Voltage |
3.65V |
|
Discharge Cut-off Voltage |
2.5V |
|
Typical Capcity |
52.5Ah |
|
Electric Energy |
168Wh |
|
Internal Resistance |
≤0.5mΩ |
|
Cycle Life |
≥2000 Times |
|
Max Charge rate |
1C |
|
Max Discharge rate |
3C |
|
Charging Working Temperature |
0°C~50°C |
|
Discharging Working Temperature |
-20°C~50°C |
|
Cell Dimension |
T30*W194*H84(mm) |
|

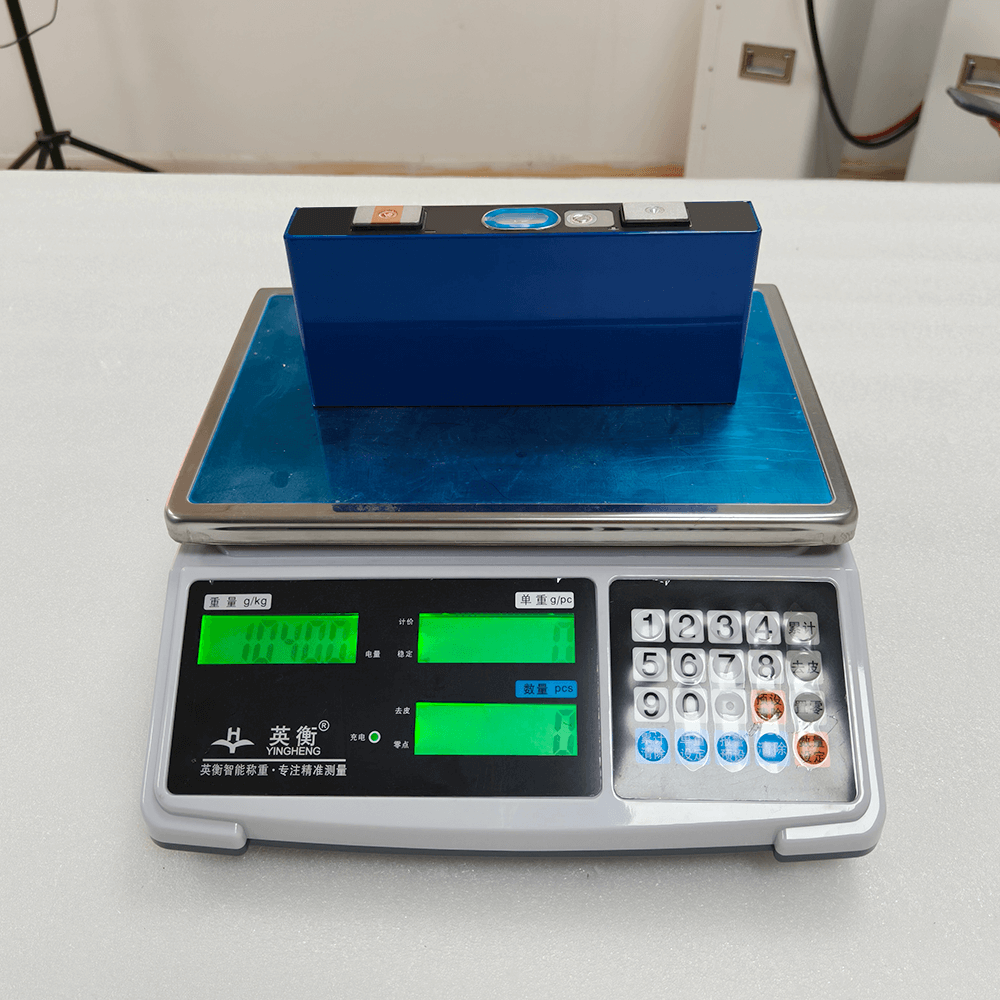

Cell Weight |
1Kg±0.1Kg |
|
Certification |
CE,UL,UN38.3,MSDS |
🔋 High-Rate Discharge: 3C continuous discharge supports high-power applications.

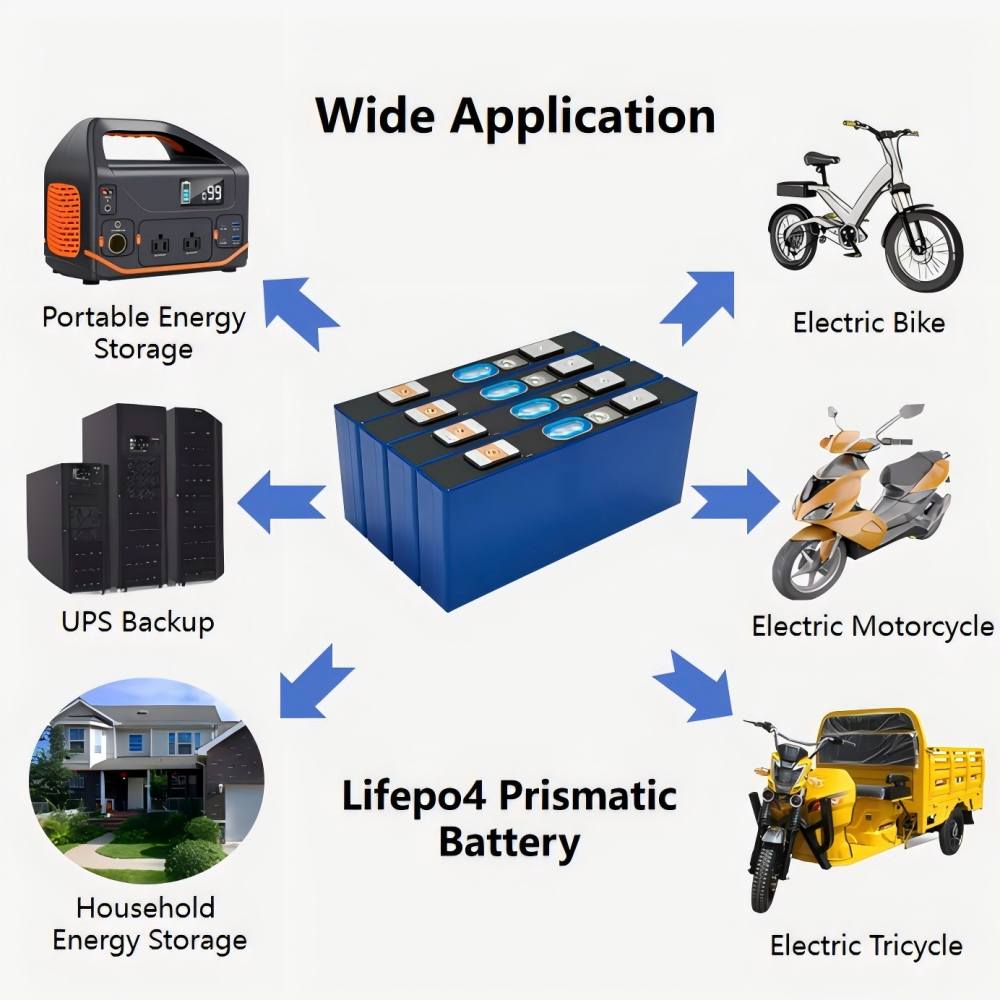

🔒 Superior Power Density: Optimized for electric vehicles and power tools.

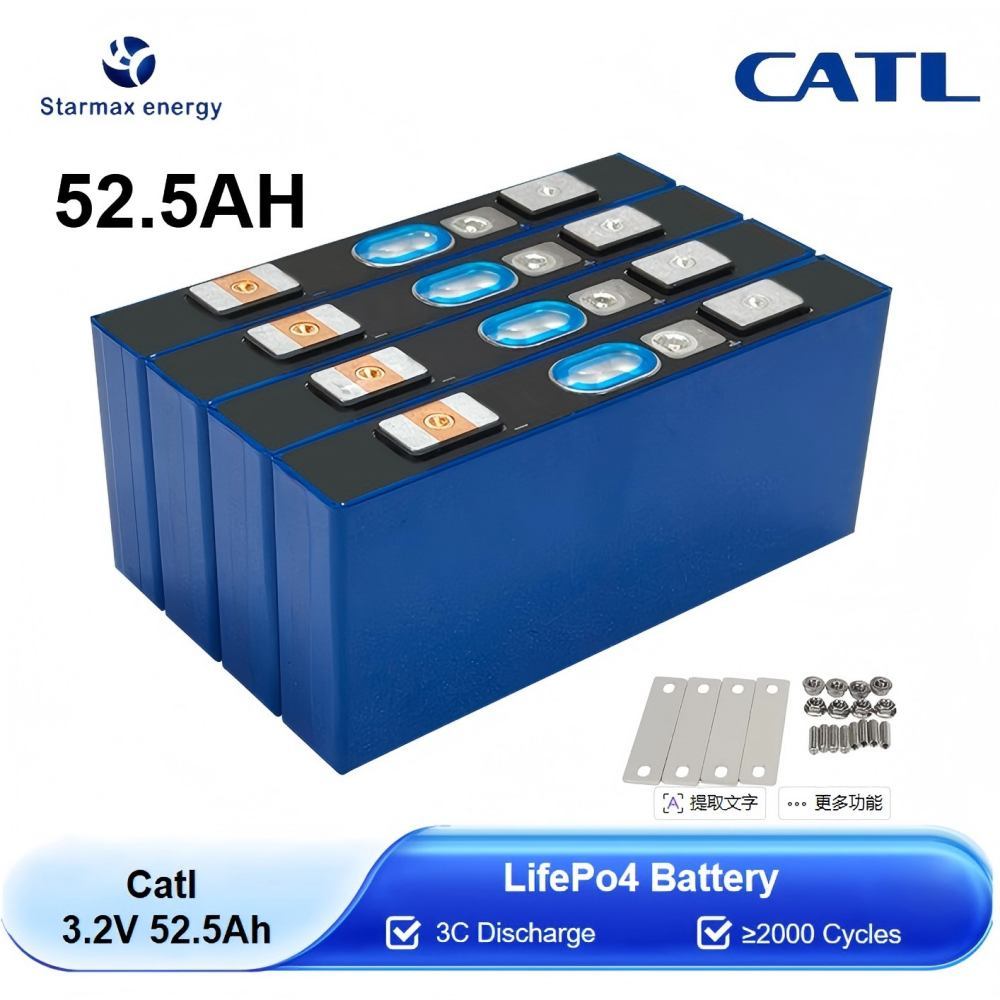

⚙️ CATL Cell Reliability: Built with premium CATL 3.2V 52.5Ah LiFePO4 cells.
📦 Safe & Stable Chemistry: Lithium Iron Phosphate ensures thermal and safety advantages.

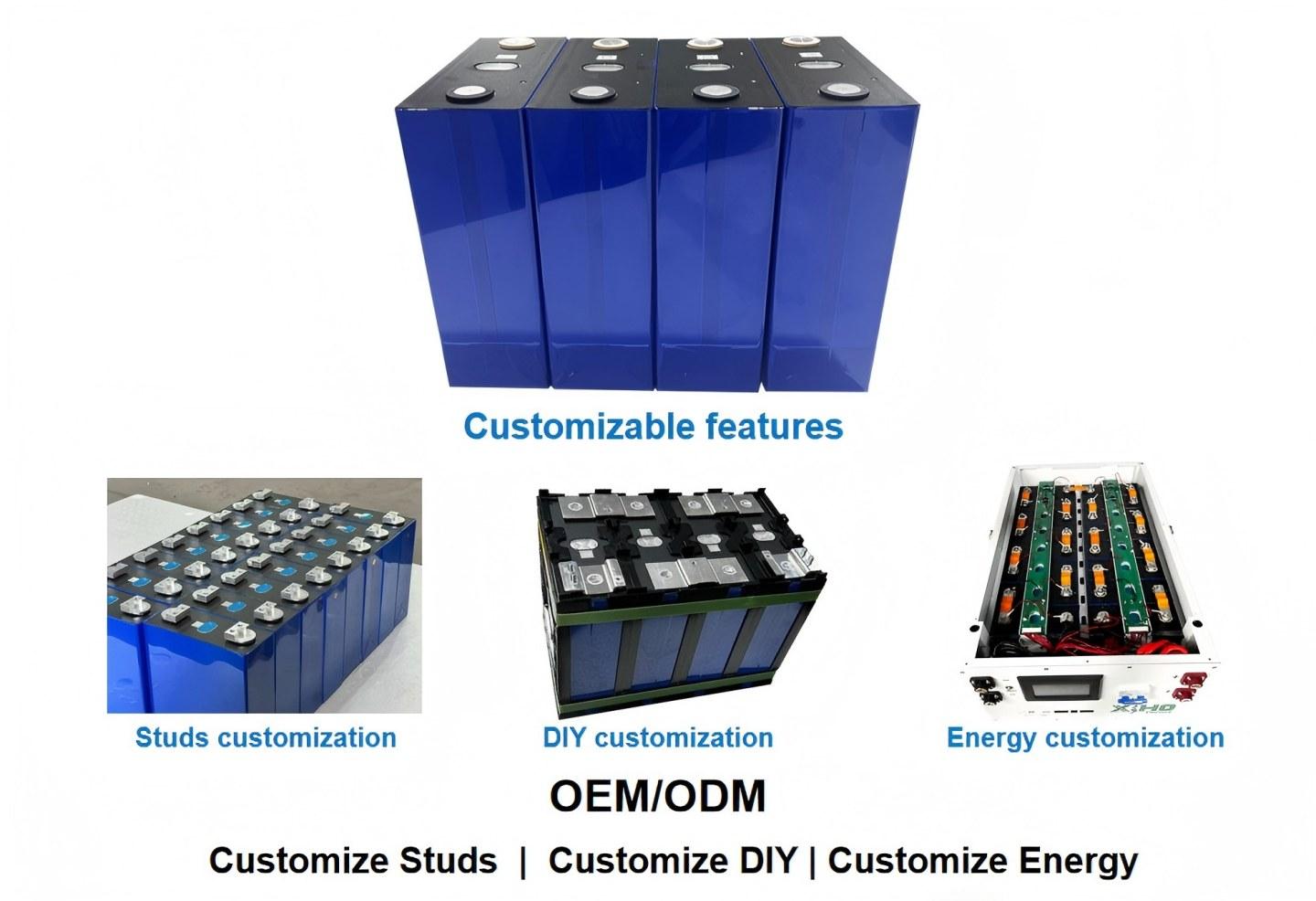

We understand that every project is unique. At Starmax, we offer extensive customization options to meet your specific needs:
Material Selection: Choose from a range of materials for optimal performance.
Design Assistance: Expert design support from concept to production.
OEM&ODM：Customize Studs, Customize Logo, Customize Energy.
Choosing Starmax means opting for reliability and quality. Here's why we stand out:

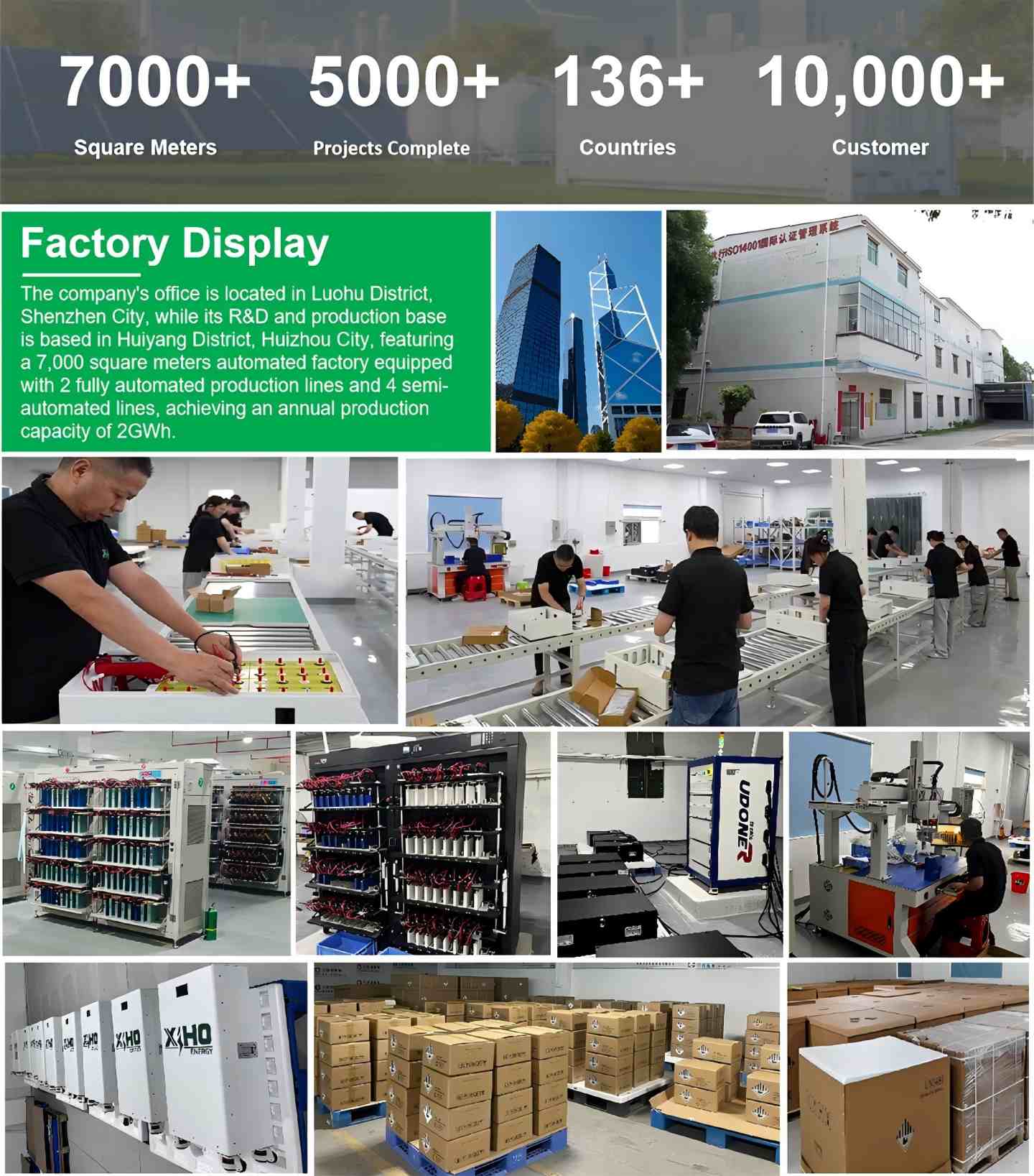

Factory: A 7,000-square-meter automated factory featuring 2 fully automated and 4 semi-automated production lines, and an annual production capacity of 2 GWh.
Expertise: Years of experience in the production and manufacturing of new energy lithium ion batteries.
Technology: State-of-the-art equipment for precise and efficient production.
Customer Focus: Committed to delivering exceptional service and support.
1.Please read the instructions carefully and pay attention to the marks on the surface of battery before use.
2.During operation, please keep the cell away from heat source, fire source. Never beat, drop or shock the cell.
3.Do not directly solder the cell or pierce it with a nail or other sharp object.
4.Do not turn over battery. Keep it from strike, throw, tread or bending.
5.Do not make battery short-circuited, in order to avoid from danger incurring or battery damage.
6.Discarded battery should be well disposed. Do not throw it into the fire or water.
