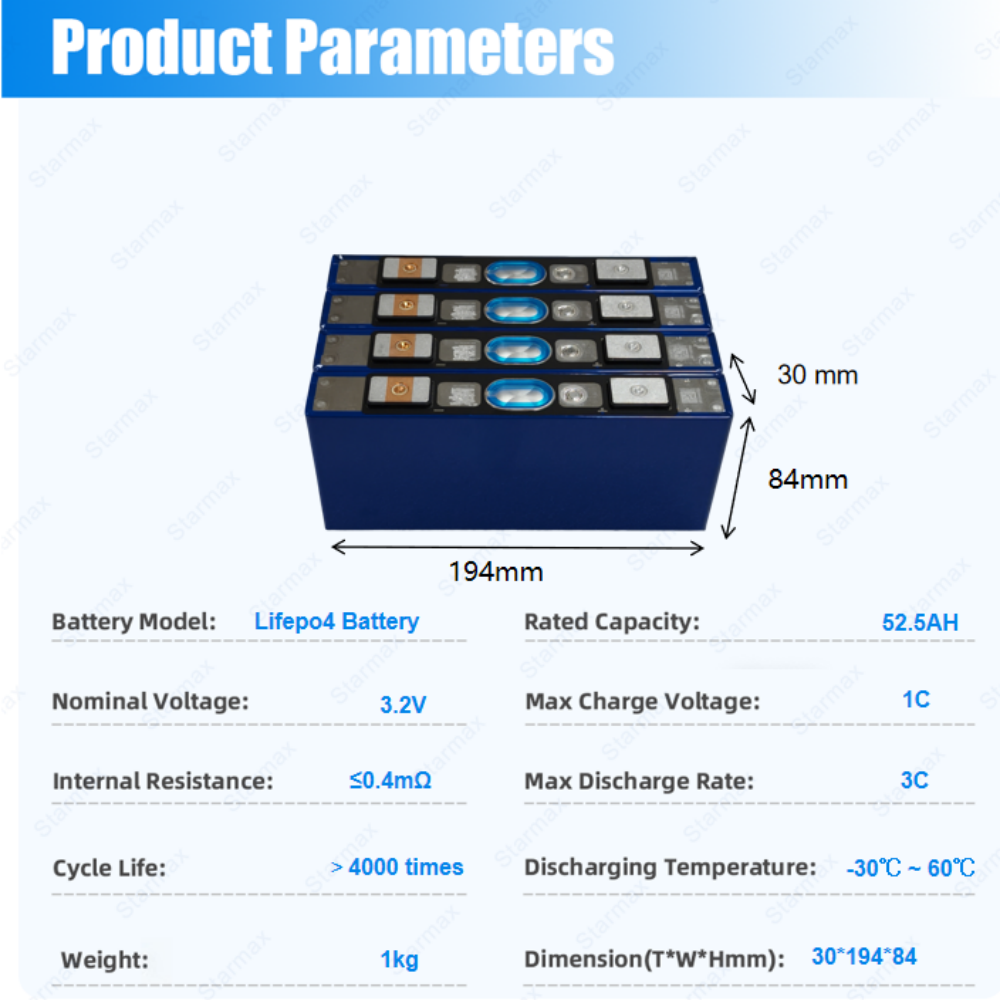

| Brand Name： | CATL |
| Battery Type： | Lifepo4 Prismatic Battery Cells |
| Nominal Capacity(Ah)： | 52.5AH |
| Nominal Voltage(V)： | 3.2V |
| Max Charge Voltage(V)： | 3.65V |
| Discharge Cut-off Voltage(V)： | 2.5V |
| Max Charge rate： | 1C |
| Max Discharge rate： | 3C |

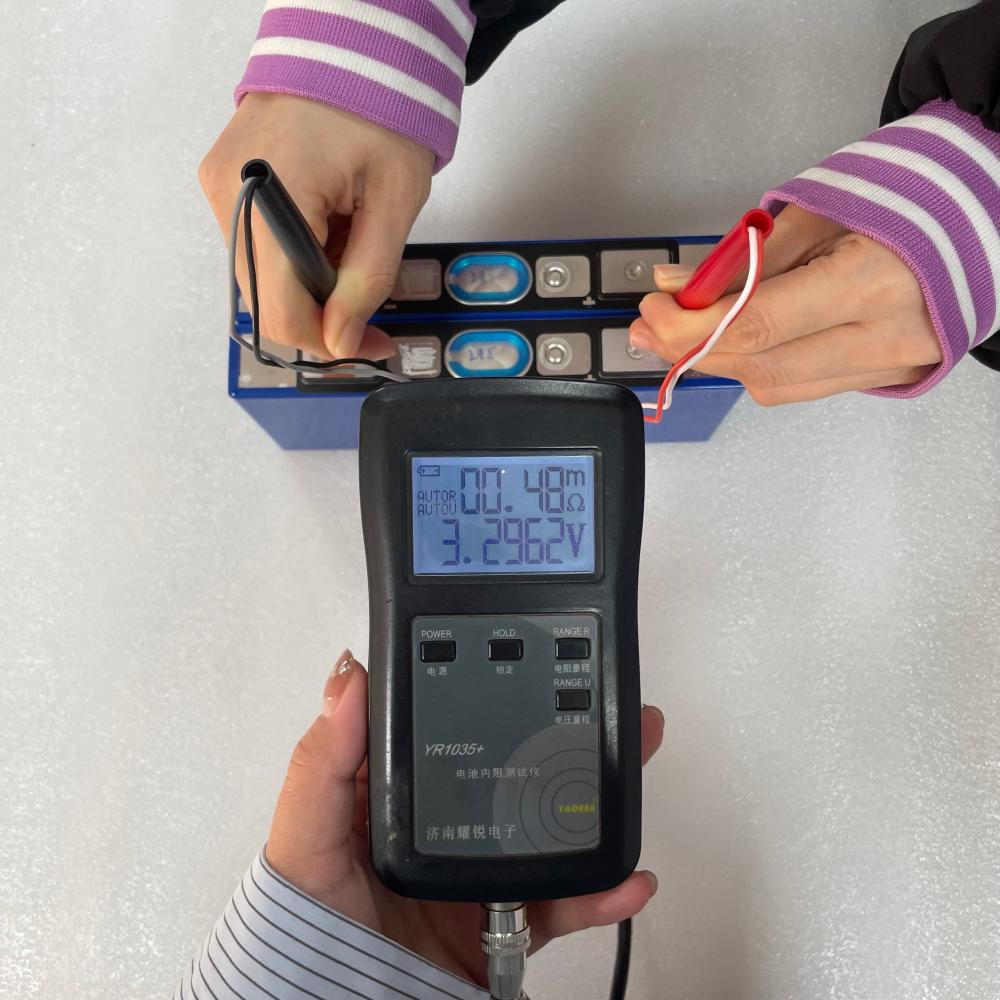

| Internal Resistance： | ≤0.4mΩ |
| Charge Temperature(℃)： | 0°C~60°C |
| Discharge Temperature(℃)： | -30°C~60°C |
| Cycle life： | More than 4000 times |

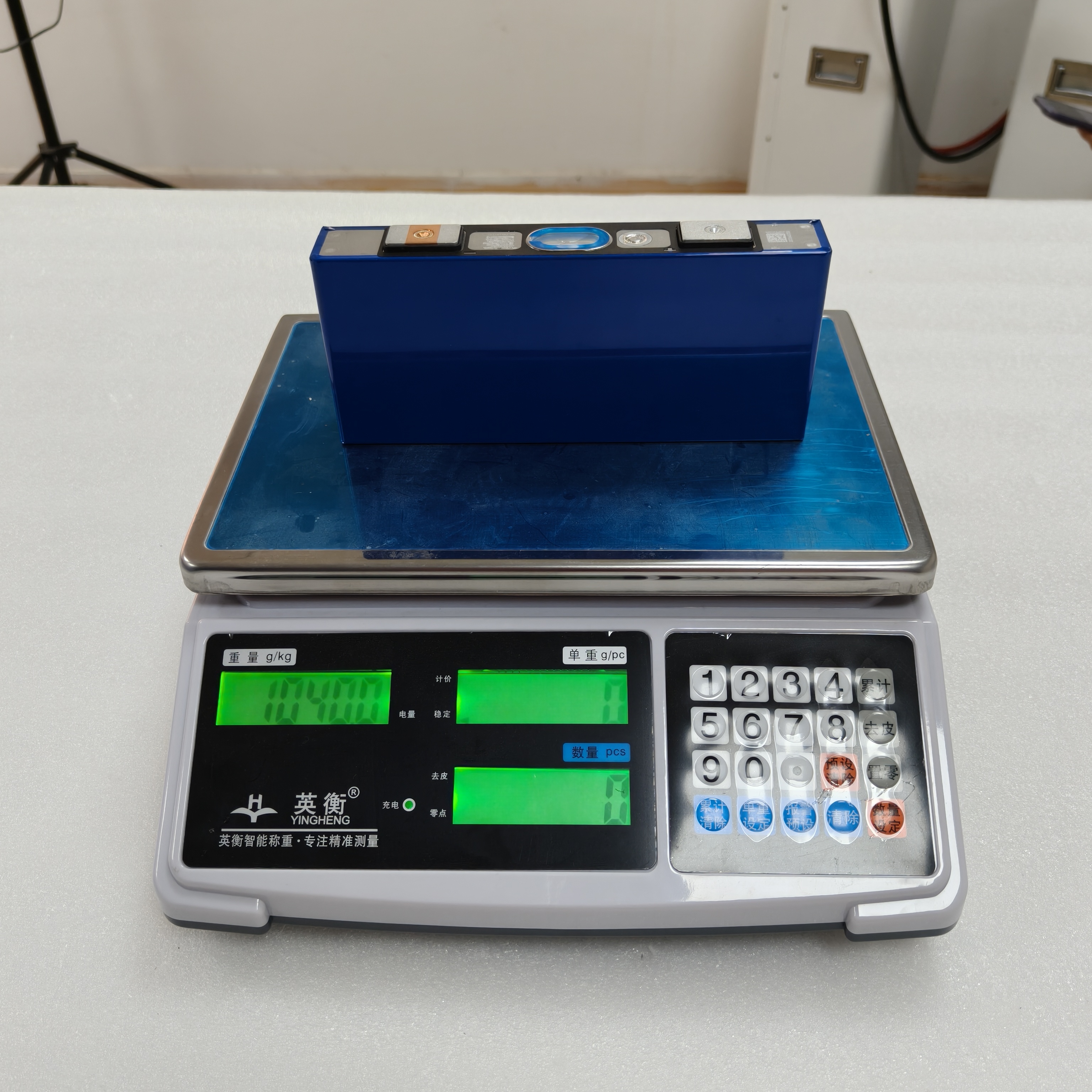

| Weight: |
1kg |
| Size(mm)： | T30*W194*H84（mm) |
| Certification： |
CE,UL,UN38.3,MSDS |
3. Low Internal Resistance
The cell has an internal resistance of ≤0.4mΩ, which means it can deliver power more efficiently. This feature is crucial for applications like car starting power and car audio systems, where high - current demands need to be met with minimal energy loss.

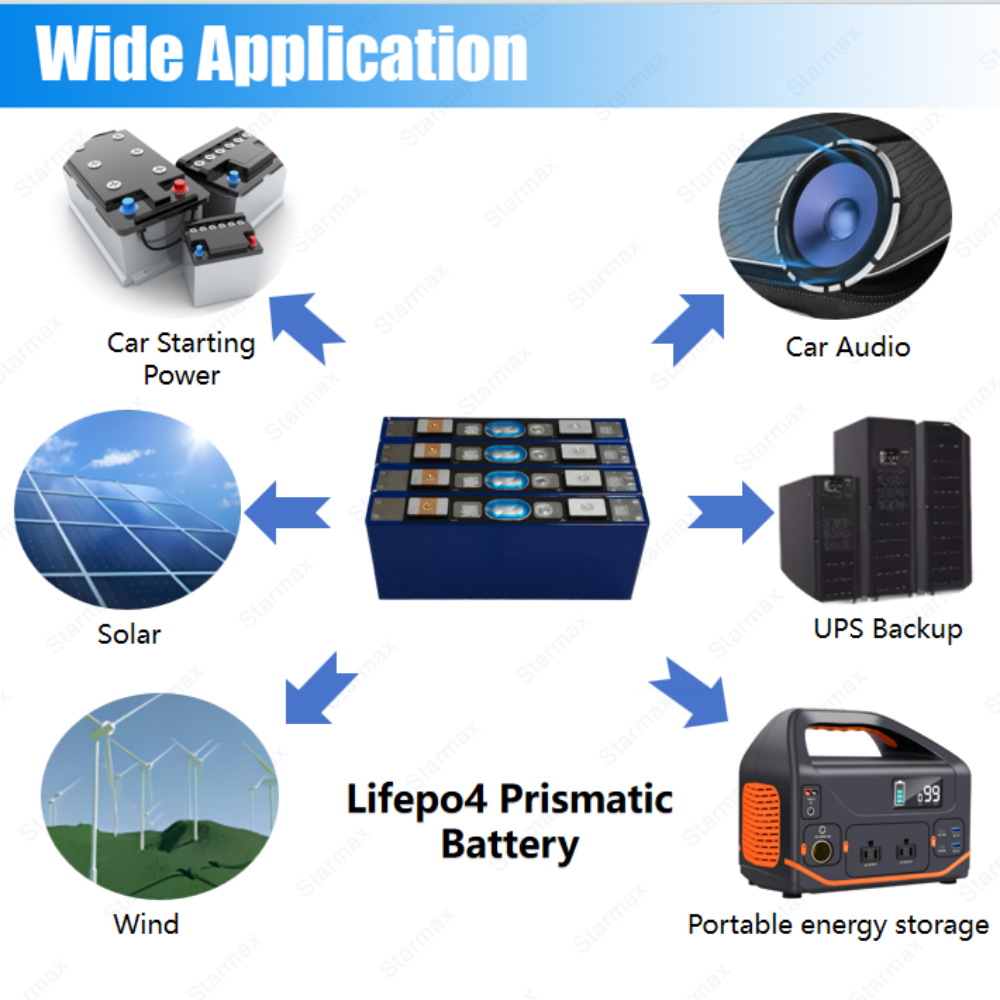

1. Solar Energy Storage
The CATL 3.2V 52.5Ah LiFePO₄ prismatic cell is an ideal choice for solar energy storage systems. Its high capacity and long cycle life allow it to store the energy generated by solar panels during the day for use at night or on cloudy days.
2. UPS Backup
In UPS (Uninterruptible Power Supply) systems, this cell can provide reliable backup power. Its ability to withstand frequent charge - discharge cycles and its wide temperature range ensure that critical equipment remains powered during power outages.
3. Car Starting Power
The low internal resistance and high capacity of the cell make it suitable for car starting power applications. It can deliver the high - current burst needed to start a vehicle’s engine, even in cold temperatures.
4. Portable Energy Storage
For portable energy storage devices, the cell’s compact size (30×194×84mm) and relatively light weight (1kg) combined with its high capacity make it aeat option. It gr can power various portable electronic devices and tools on the go.
• Our Services: OEM/ODM and Customized Solutions
• We provide customized lithium ion battery solutions to meet your specific application needs
Q:Can I have samples to test? And what is lead time for sample order?
A:Yes, we can supply samples, the lead time for samples is 7-10 days. And buyers pay for sample cost and shipping cost.
Q:Do you provide after-sales serive?
A:Yes, We offer 5 years warranty for lifepo4 battery, and 1 years for Nmc battery, increase the cost to 5-10 years. For damaged due to non-human factors, we will refund or send new battery for replacement after providing pictures or videos for evidence.
Q:What is your company's advantage?
A:We only supply high level quality of lithium battery and we gurantee on-time shipment, we also provide excellent after-sales service.
Q:Do you accept OEM/ODM?
A:Yes, it is avaliable.

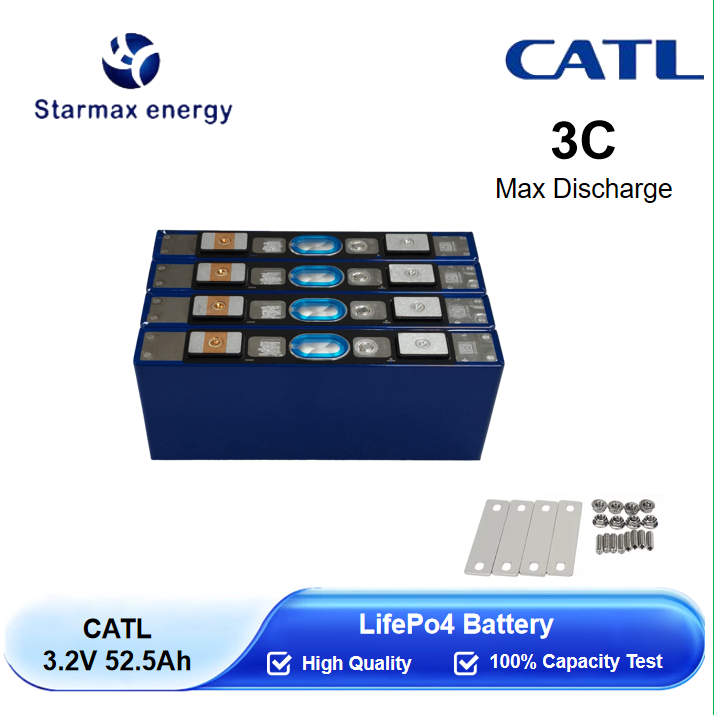

Q:Are the batteries come with bus bars + nuts?
A:This price includes busbars and nuts. Each cell will be provided with one set of busbars and nuts (e.g., if you purchase 4 cells, we will deliver 4 cells with 4 busbars and 8 nuts). Should you require further details, please feel free to contact us directly.
Q:Are you battery real capacity?
A:All of our battery cells with Grade A, 100% new and real capacity.
Q:Are you a factory or a trading company?
A:We are a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer, welcome to visit.
Q:What kind of certificates do you have?
A:We can provide CE, ROHS, UL, FCC, IEC, MSDS, UN38.3 & etc. if your need.
1.Please read the instructions carefully and pay attention to the marks on the surface of battery before use.
2.During operation, please keep the cell away from heat source, fire source. Never beat, drop or shock the cell.
3.Do not directly solder the cell or pierce it with a nail or other sharp object.
4.Do not turn over battery. Keep it from strike, throw, tread or bending.
5.Do not make battery short-circuited, in order to avoid from danger incurring or battery damage.
6.Discarded battery should be well disposed. Do not throw it into the fire or water.
