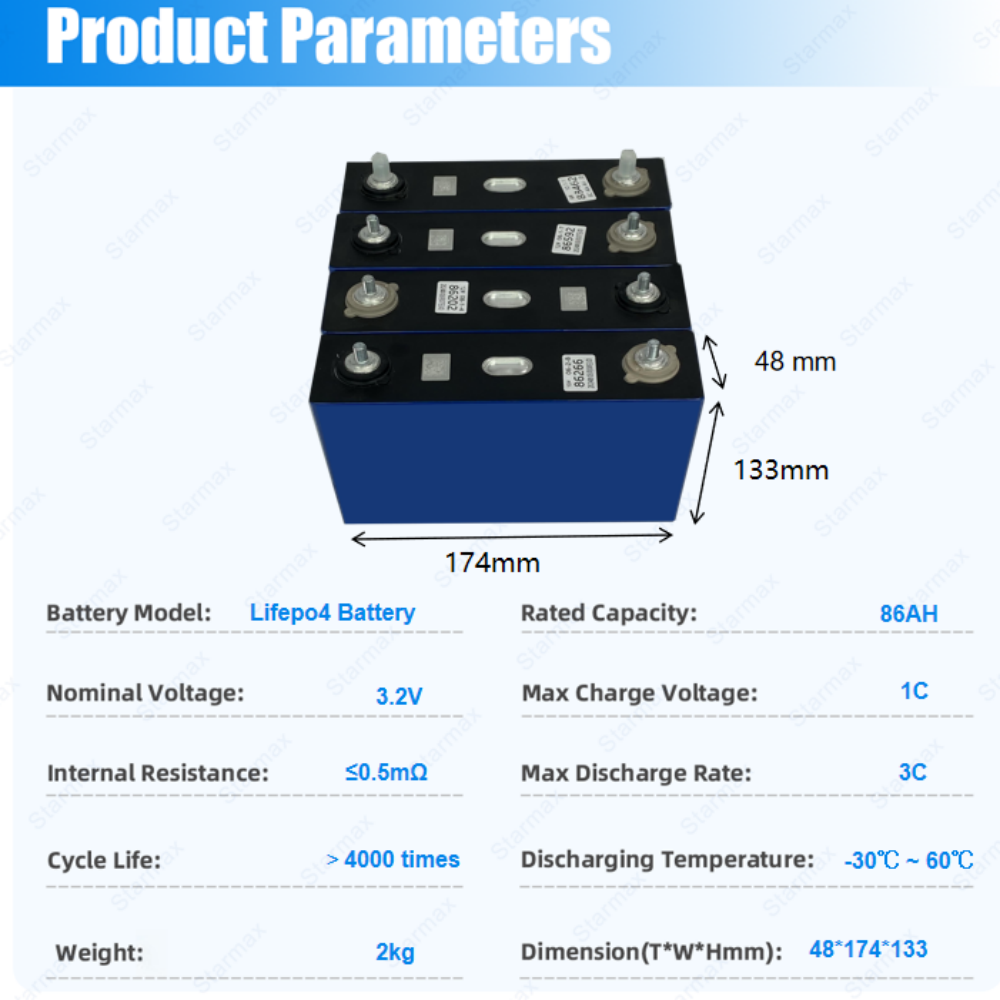

| Brand Name： | CATL |
| Battery Type： | Lifepo4 Prismatic Battery Cells |
| Nominal Capacity(Ah)： | 86AH |
| Nominal Voltage(V)： | 3.2V |
| Max Charge Voltage(V)： | 3.65V |
| Discharge Cut-off Voltage(V)： | 2.5V |
| Max Charge rate： | 1C |
| Max Discharge rate： | 3C |

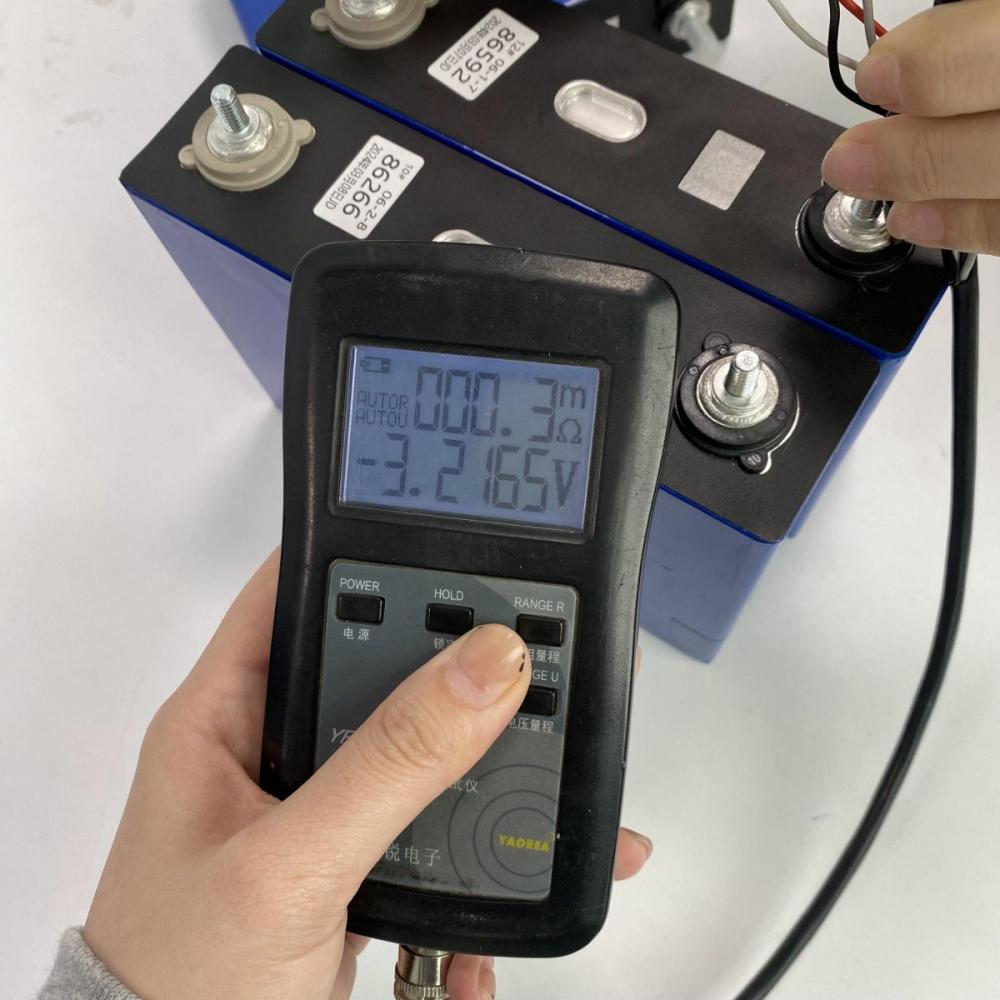

| Internal Resistance： | ≤0.5mΩ |
| Charge Temperature(℃)： | 0°C~60°C |
| Discharge Temperature(℃)： | -30°C~60°C |
| Cycle life： | More than 4000 times |
| Weight: |
2kg |
| Size(mm)： | T48*W174*H133（mm) |
| Certification： |
CE,UL,UN38.3,MSDS |
3. Low Internal Resistance
The internal resistance of the cell is ≤0.5mΩ, which enables it to deliver power more efficiently. This feature is very important for applications such as car starting power and car audio systems, where high - current power supply is needed with minimal energy loss.

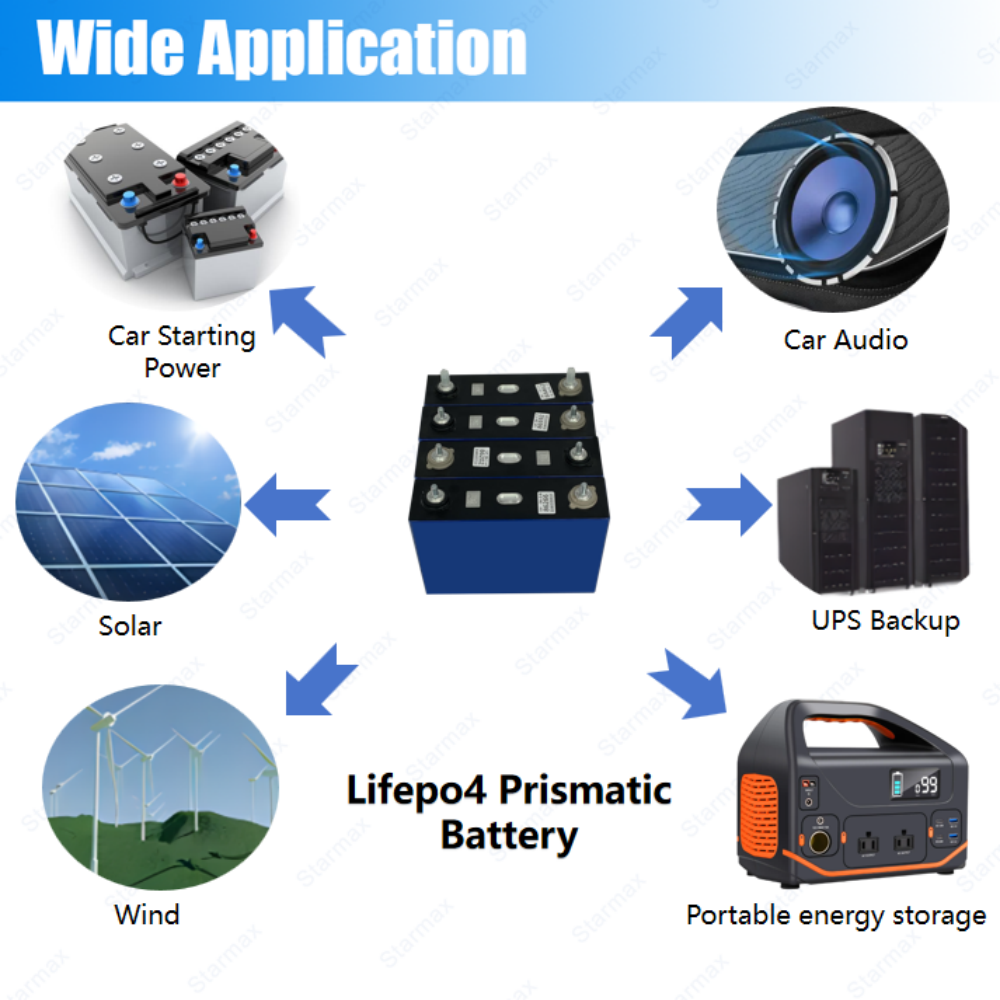

1. Solar Energy Storage
The CATL 3.2V 86Ah LiFePO₄ prismatic cell can store the electricity generated by solar panels. It can store energy during the day when there is sufficient sunlight and release it at night or on cloudy days to meet the energy needs of households or small - scale commercial facilities.
2. UPS Backup
In case of power outages, this cell can be used in UPS (Uninterruptible Power Supply) systems to provide continuous power to critical equipment such as servers, communication devices, ensuring the normal operation of these devices and preventing data loss or service interruptions.
3. Car Starting Power
Its high capacity and good power - delivery performance make it suitable for car starting power systems. It can provide a strong starting current for vehicles, especially in cold weather conditions, ensuring that the car can start smoothly.
4. Portable Energy Storage
The cell's relatively large capacity and compact design (174 * 48 * 133mm) make it a good choice for portable energy storage devices. It can be used to power outdoor equipment, camping appliances, or as a backup power source for mobile devices in the field.
• Our Services: OEM/ODM and Customized Solutions
• We provide customized lithium ion battery solutions to meet your specific application needs
Q:Can I have samples to test? And what is lead time for sample order?
A:Yes, we can supply samples, the lead time for samples is 7-10 days. And buyers pay for sample cost and shipping cost.
Q:Do you provide after-sales serive?
A:Yes, We offer 5 years warranty for lifepo4 battery, and 1 years for Nmc battery, increase the cost to 5-10 years. For damaged due to non-human factors, we will refund or send new battery for replacement after providing pictures or videos for evidence.
Q:What is your company's advantage?
A:We only supply high level quality of lithium battery and we gurantee on-time shipment, we also provide excellent after-sales service.
Q:Do you accept OEM/ODM?
A:Yes, it is avaliable.
Q:Are the batteries come with bus bars + nuts?
A:This price includes busbars and nuts. Each cell will be provided with one set of busbars and nuts (e.g., if you purchase 4 cells, we will deliver 4 cells with 4 busbars and 8 nuts). Should you require further details, please feel free to contact us directly.
Q:Are you battery real capacity?
A:All of our battery cells with Grade A, 100% new and real capacity.
Q:Are you a factory or a trading company?
A:We are a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer, welcome to visit.
Q:What kind of certificates do you have?
A:We can provide CE, ROHS, UL, FCC, IEC, MSDS, UN38.3 & etc. if your need.
1.Please read the instructions carefully and pay attention to the marks on the surface of battery before use.
2.During operation, please keep the cell away from heat source, fire source. Never beat, drop or shock the cell.
3.Do not directly solder the cell or pierce it with a nail or other sharp object.
4.Do not turn over battery. Keep it from strike, throw, tread or bending.
5.Do not make battery short-circuited, in order to avoid from danger incurring or battery damage.
6.Discarded battery should be well disposed. Do not throw it into the fire or water.
