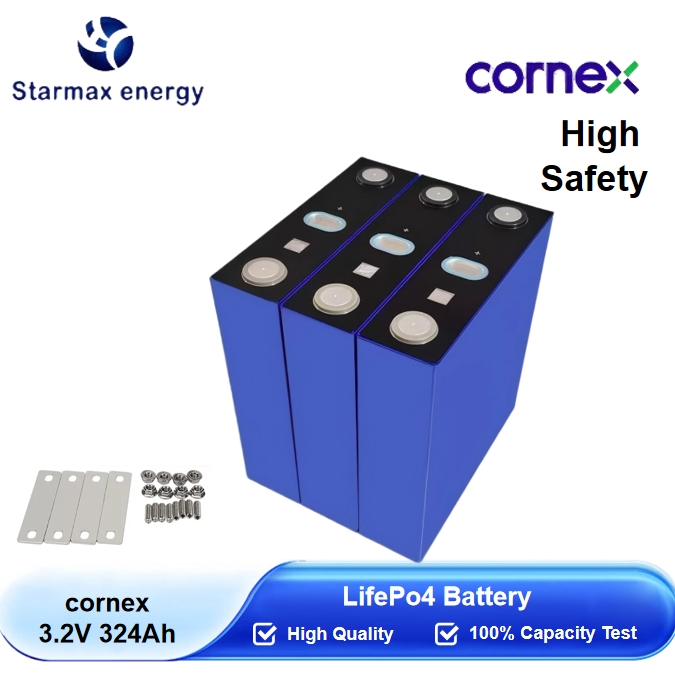

| Brand Name： | cornex |
| Battery Type： | Lifepo4 Prismatic Battery Cells |
| Nominal Capacity(Ah)： | 324AH |
| Nominal Voltage(V)： | 3.2V |
| Max Charge Voltage(V)： | 3.65V |
| Discharge Cut-off Voltage(V)： | 2.5V |
| Max Charge rate： | 1C |
| Max Discharge rate： | 1C |
| Internal Resistance： | ≤0.4mΩ |
| Charge Temperature(℃)： | 0°C~60°C |
| Discharge Temperature(℃)： | -20°C~60°C |
| Cycle life： | More than 6000 times |
| Weight: |
5.55 kg |
| Size(mm)： | T71.7*W174.4*H207.2(mm) |
| Certification： |
CE,UL,UN38.3,MSDS |
3. Extended Cycle Life
Boasting a cycle life of at least 6000 cycles, the battery can endure repeated charging and discharging over a long period. This feature reduces the need for frequent replacements, making it a cost - effective choice for applications like renewable energy storage (solar, wind) and long - term home energy storage.

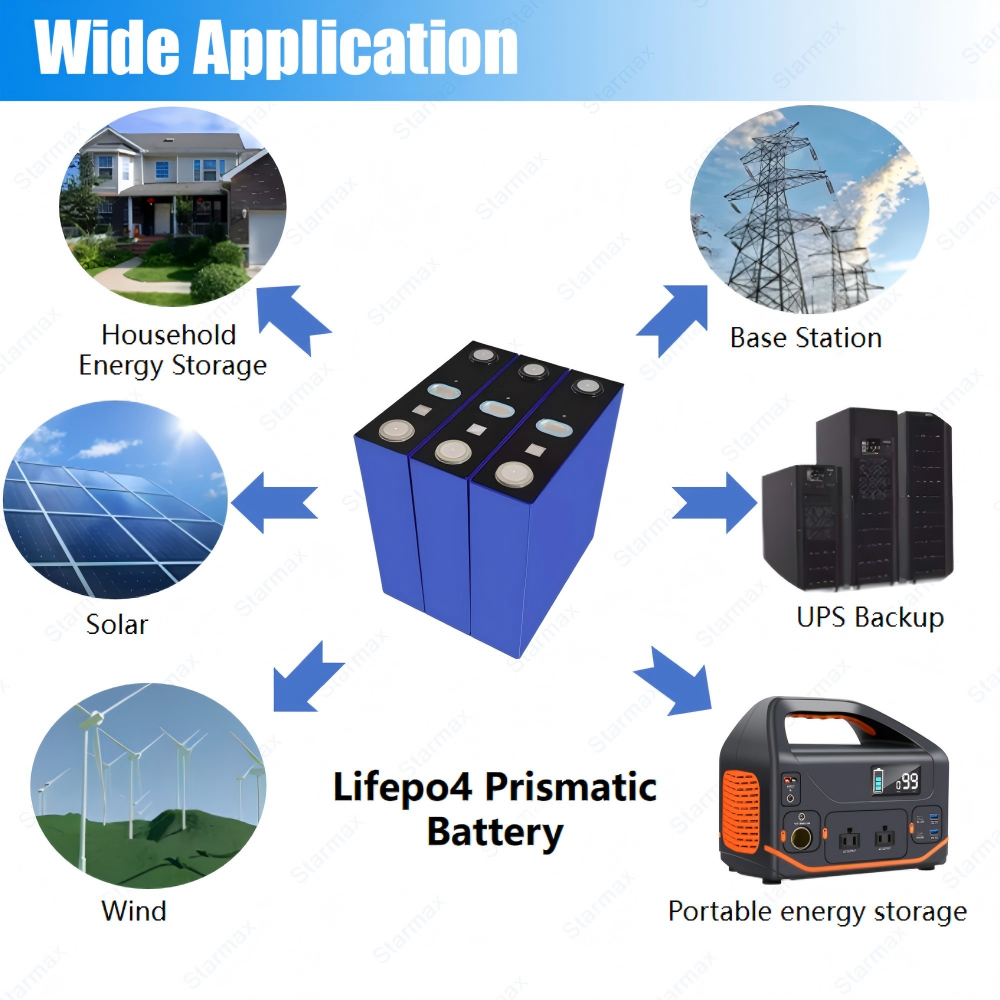

1. Household Energy Storage
The Cornex 3.2V 324Ah LiFePO₄ prismatic battery is an excellent fit for home energy storage systems. It can store excess energy from the grid or renewable sources (like solar panels installed at home) and provide power during outages or peak consumption periods, ensuring a stable and reliable energy supply for households.
2. Base Station Power Supply
Communication base stations require a stable and long - lasting power source. The Cornex 3.2V 324Ah LiFePO₄ prismatic battery, with its high capacity and long cycle life, can provide uninterrupted power to base stations,suring en smooth communication services even in remote areas or during power failures.
3. Solar Energy Storage
In solar power systems, this battery can effectively store the electricity generated by solar panels. It allows users to utilize solar energy even when the sun is not shining, such as at night or on cloudy days, maximizing the use of solar resources and reducing reliance on the traditional power grid.
4. UPS Backup
For uninterruptible power supply (UPS) systems, this battery can act as a backup power source. It can quickly take over the power supply when the main power fails, protecting critical equipment (such as servers, data centers, and medical devices) from damage caused by power outages and ensuring continuous operation.
• Our Services: OEM/ODM and Customized Solutions
• We provide customized lithium ion battery solutions to meet your specific application needs
Q:Can I have samples to test? And what is lead time for sample order?
A:Yes, we can supply samples, the lead time for samples is 7-10 days. And buyers pay for sample cost and shipping cost.
Q:Do you provide after-sales serive?
A:Yes, We offer 5 years warranty for lifepo4 battery, and 1 years for Nmc battery, increase the cost to 5-10 years. For damaged due to non-human factors, we will refund or send new battery for replacement after providing pictures or videos for evidence.
Q:What is your company's advantage?
A:We only supply high level quality of lithium battery and we gurantee on-time shipment, we also provide excellent after-sales service.
Q:Do you accept OEM/ODM?
A:Yes, it is avaliable.
Q:Are the batteries come with bus bars + nuts?
A:This price includes busbars and nuts. Each cell will be provided with one set of busbars and nuts (e.g., if you purchase 4 cells, we will deliver 4 cells with 4 busbars and 8 nuts). Should you require further details, please feel free to contact us directly.
Q:Are you battery real capacity?
A:All of our battery cells with Grade A, 100% new and real capacity.
Q:Are you a factory or a trading company?
A:We are a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer, welcome to visit.
Q:What kind of certificates do you have?
A:We can provide CE, ROHS, UL, FCC, IEC, MSDS, UN38.3 & etc. if your need.
1.Please read the instructions carefully and pay attention to the marks on the surface of battery before use.
2.During operation, please keep the cell away from heat source, fire source. Never beat, drop or shock the cell.
3.Do not directly solder the cell or pierce it with a nail or other sharp object.
4.Do not turn over battery. Keep it from strike, throw, tread or bending.
5.Do not make battery short-circuited, in order to avoid from danger incurring or battery damage.
6.Discarded battery should be well disposed. Do not throw it into the fire or water.
