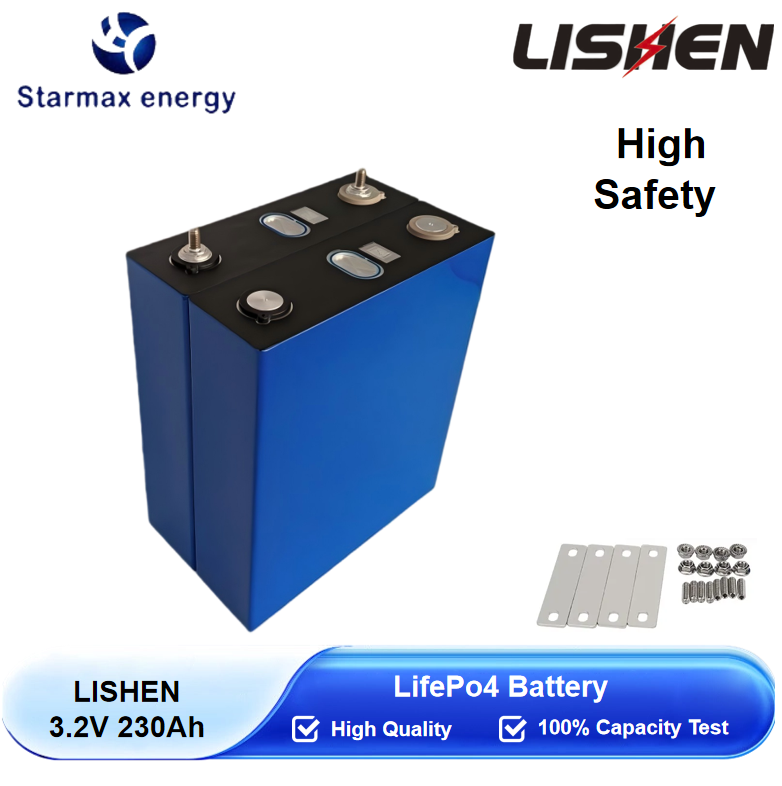

| Brand Name： | LISHEN |
| Battery Type： | Lifepo4 Prismatic Battery Cells |
| Nominal Capacity(Ah)： | 230AH |
| Nominal Voltage(V)： | 3.2V |
| Max Charge Voltage(V)： | 3.65V |
| Discharge Cut-off Voltage(V)： | 2.5V |
| Max Charge rate： | 1C |
| Max Discharge rate： | 2C |
| Internal Resistance： | ≤0.25mΩ |
| Charge Temperature(℃)： | 0°C~60°C |
| Discharge Temperature(℃)： | -20°C~60°C |
| Cycle life： | More than3000 times |
| Weight: |
4.14 kg |

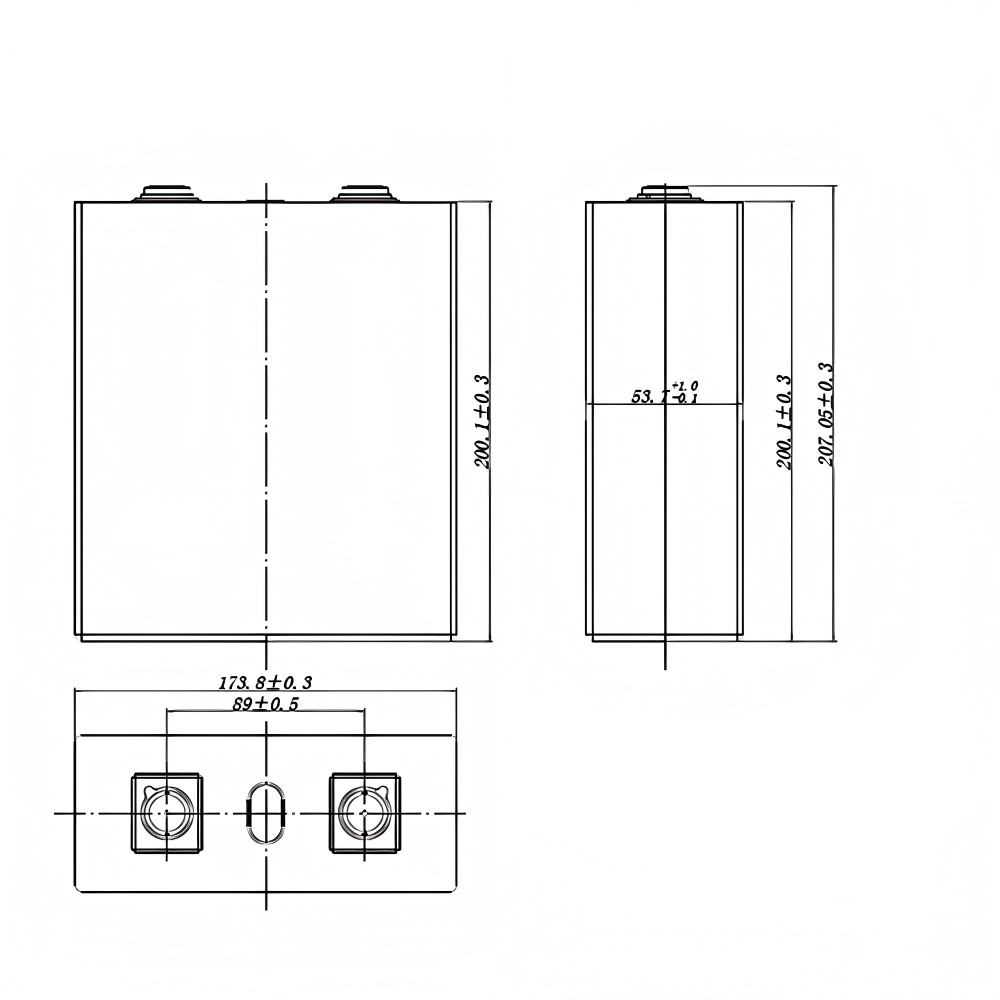

| Size(mm)： | T54*W173*H210(mm) |
| Certification： |
CE,UL,UN38.3,MSDS |
3. Flexible Charge/Discharge Rates
It supports a standard charge/discharge current of 0.5C, a maximum continuous charge/discharge current of 1C, and a maximum pulse charge/discharge current of 2C (for 60s), catering to various load requirements.
1. Household Energy Storage
The LISHEN 3.2V 230AH LiFePO₄ prismatic battery is perfect for home energy storage systems, storing excess electricity from the grid or renewable sources for later use.
2. Renewable Energy Systems
It can be integrated into solar and wind energy systems to store the energy generated, ensuring a stable power supply even when the sun isn't shining or the wind isn't blowing.
3. Base Station Backup
For telecommunication base stations, this battery provides reliable backup power to maintain communication services during power outages.
4. UPS Backup & Portable Energy Storage
It is also suitable for UPS (Uninterruptible Power Supply) backup systems and portable energy storage devices, offering emergency power and mobile power solutions.
• Our Services: OEM/ODM and Customized Solutions
• We provide customized lithium ion battery solutions to meet your specific application needs
Q:Can I have samples to test? And what is lead time for sample order?
A:Yes, we can supply samples, the lead time for samples is 7-10 days. And buyers pay for sample cost and shipping cost.
Q:Do you provide after-sales serive?
A:Yes, We offer 5 years warranty for lifepo4 battery, and 1 years for Nmc battery, increase the cost to 5-10 years. For damaged due to non-human factors, we will refund or send new battery for replacement after providing pictures or videos for evidence.
Q:What is your company's advantage?
A:We only supply high level quality of lithium battery and we gurantee on-time shipment, we also provide excellent after-sales service.
Q:Do you accept OEM/ODM?
A:Yes, it is avaliable.
Q:Are the batteries come with bus bars + nuts?
A:This price includes busbars and nuts. Each cell will be provided with one set of busbars and nuts (e.g., if you purchase 4 cells, we will deliver 4 cells with 4 busbars and 8 nuts). Should you require further details, please feel free to contact us directly.
Q:Are you battery real capacity?
A:All of our battery cells with Grade A, 100% new and real capacity.
Q:Are you a factory or a trading company?
A:We are a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer, welcome to visit.
Q:What kind of certificates do you have?
A:We can provide CE, ROHS, UL, FCC, IEC, MSDS, UN38.3 & etc. if your need.
1.Please read the instructions carefully and pay attention to the marks on the surface of battery before use.
2.During operation, please keep the cell away from heat source, fire source. Never beat, drop or shock the cell.
3.Do not directly solder the cell or pierce it with a nail or other sharp object.
4.Do not turn over battery. Keep it from strike, throw, tread or bending.
5.Do not make battery short-circuited, in order to avoid from danger incurring or battery damage.
6.Discarded battery should be well disposed. Do not throw it into the fire or water.
