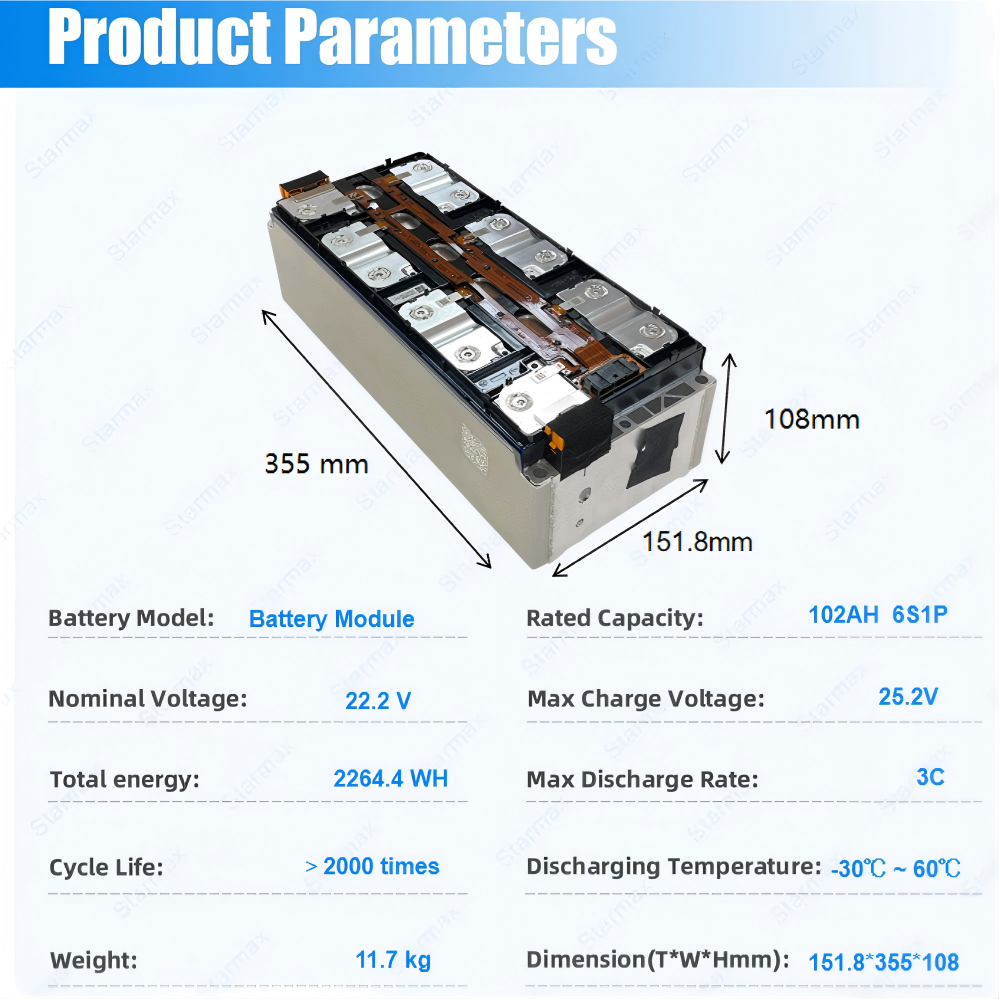

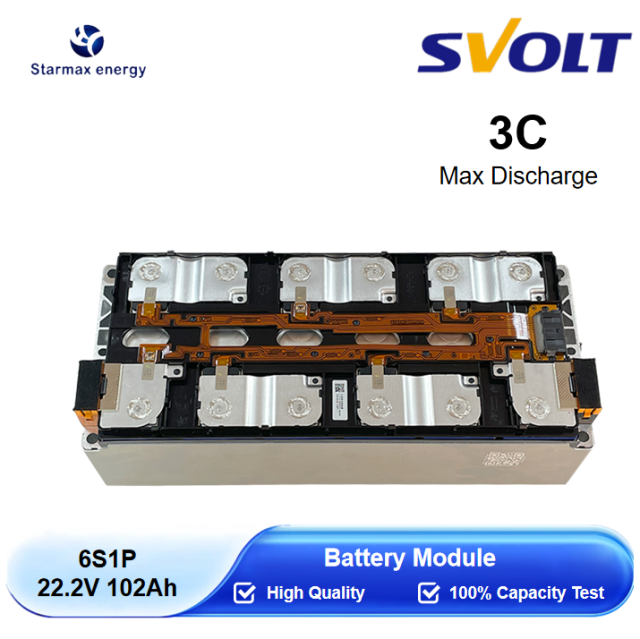

| Brand Name： | SVOLT |
| Battery Type： | Battery Moudule |
| Nominal Capacity(Ah)： | 102AH |
| Nominal Voltage(V)： | 22.2V |
| Max Charge Voltage(V)： | 25.2V |
| Discharge Cut-off Voltage(V)： | 16.5V |
| Max Charge rate： | 1C |
| Max Discharge rate： | 3C |
| Charge Temperature(℃)： | 0°C~55°C |
| Discharge Temperature(℃)： | -30°C~55°C |
| Cycle life： | More than 2000 times |
| Weight: |
11.7 kg |
| Size(mm)： | T151.8*W355*H108(mm) |
| Certification： |
CE,UL,UN38.3,MSDS |
3. Durable and Long
It has a cycle life of more than 2000 times, meaning it can withstand repeated charging and discharging cycles over an extended period, guaranteeing reliable performance for continuous use.
1. Electric Forklifts
The high capacity and 3C discharge rate of the SVOLTL 22.2V 102AH battery module make it ideal for powering electric forklifts, providing the necessary torque and endurance for material handling tasks in warehouses and logistics centers.
2. Golf Carts
Its long - lasting power and efficient energy delivery ensure smooth operation of golf carts, allowing them to run for extended periods on the golf course without frequent recharging.
3. Recreational Vehicles
The battery module’s ability to store a large amount of energy and its wide temperature adaptability make it a great choice for RVs, powering appliances, lighting, and other electrical systems during travel and camping.
4. UPS Backup Systems
With its stable power output and long cycle life, the SVOLTL 22.2V 102AH battery module can serve as a reliable backup power source for UPS systems, protecting critical equipment from power outages in data centers, offices, and industrial facilities.
• Our Services: OEM/ODM and Customized Solutions
• We provide customized lithium ion battery solutions to meet your specific application needs
1.Please read the instructions carefully and pay attention to the marks on the surface of battery before use.
2.During operation, please keep the cell away from heat source, fire source. Never beat, drop or shock the cell.
3.Do not directly solder the cell or pierce it with a nail or other sharp object.
4.Do not turn over battery. Keep it from strike, throw, tread or bending.
5.Do not make battery short-circuited, in order to avoid from danger incurring or battery damage.
6.Discarded battery should be well disposed. Do not throw it into the fire or water.
