Tafel Battery Module 4S1P 14.8V 150Ah 153Ah NCM Lithium ion Battery Module for 53KWh Leaf Power Supply Electric Vehicle

No.HY-4S1P153
Provide battery solution for electric car with high quality and competitive cost
1.Manufacturer Automated production,Prodcut consistency.
2.Low IR & Low temperature rise.
3.Excellent rate performance.
4.Explosion-proof & No leakage.
  • Tafel Battery Module 4S1P 14.8V 150Ah 153Ah NCM Lithium ion Battery Module for 53KWh Leaf Power Supply Electric Vehicle
  • Tafel Battery Module 4S1P 14.8V 150Ah 153Ah NCM Lithium ion Battery Module for 53KWh Leaf Power Supply Electric Vehicle
  • Tafel Battery Module 4S1P 14.8V 150Ah 153Ah NCM Lithium ion Battery Module for 53KWh Leaf Power Supply Electric Vehicle
  • Tafel Battery Module 4S1P 14.8V 150Ah 153Ah NCM Lithium ion Battery Module for 53KWh Leaf Power Supply Electric Vehicle
Desciption

Tafel 1P4S 14.8V 153Ah NCM Lithium ion battery module 4S1P Electric vehicle EV HEV battery module Energy storage


Brand New Grade A lithium ion battery module
Factory directly sell with high quality

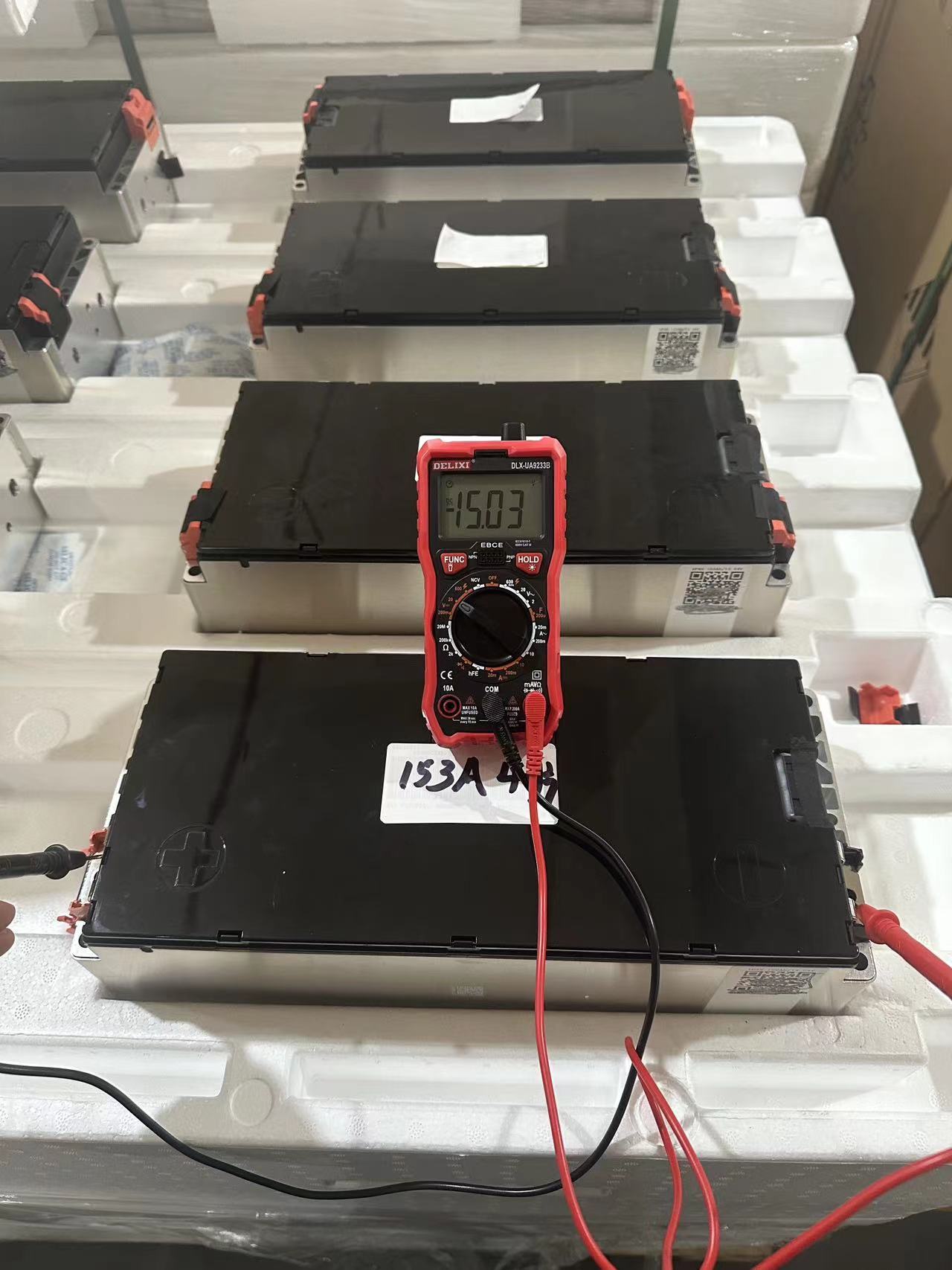

100% testing with voltage, internal resistance, isolation testing and capacity testing

Product Type:
Product Name: Lithium ion battery module

Technical Parameters:

Battery type
NMC lithium ion module
Nominal Voltage(V)
14.8V
Nominal Capacity
153Ah
Cell inside
Tafel 3.7V 153AH NMC cell
Configuration
4S1P
1Max charge current
1C
Max discharge current
3C
Standard Charge current
0.2C-0.5C
Full Charged Voltage
16.8V
Charge Cut-off Voltage
17V
Discharge Cut-off Voltage
11V
Net Weight
11.85KG

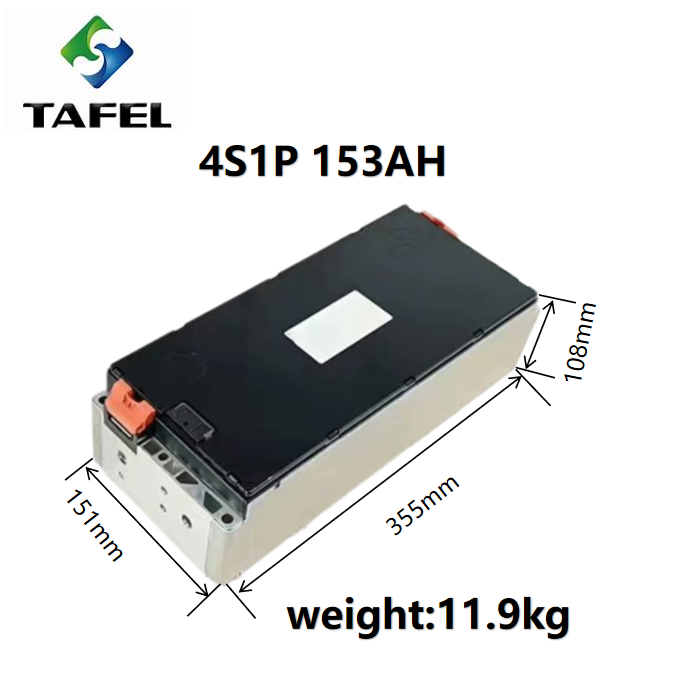

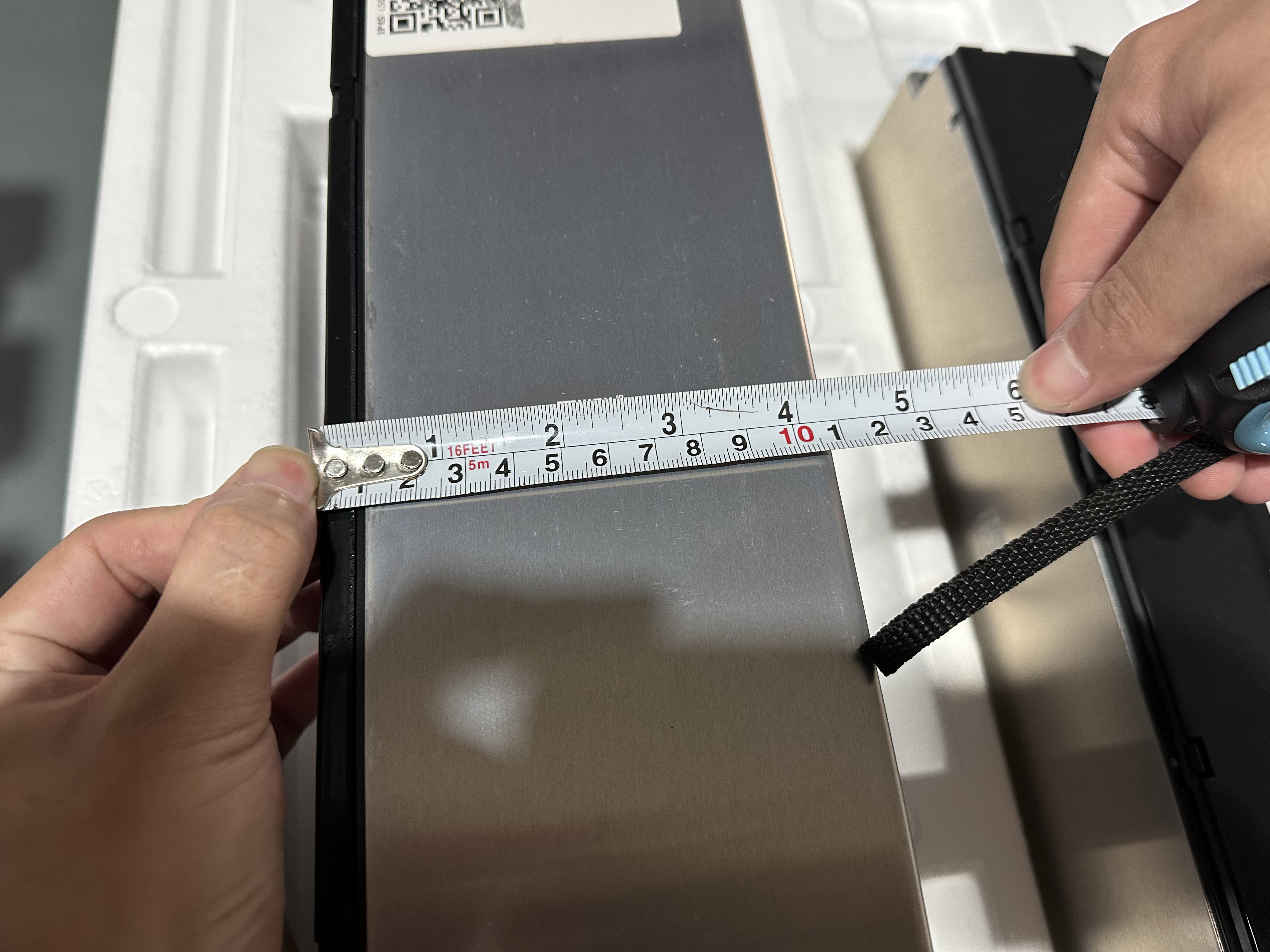

Dimensions
L354*W150*H110mm
Cycle Life
2000times(80% of initial capacity at 0.2C rate, IEC Standard)
Operating Temperature
Charging: 0~55Centigrade
Discharge Temperature(℃):
-20~55Centigrade
Storage Temperature
-20~45Centigrade
Connector
Threaded terminals



Cautions of Battery Operation:
1.Please read the instructions carefully and pay attention to the marks on the surface of battery before use.
2.During operation, please keep the cell away from heat source, fire source. Never beat, drop or shock the cell.
3.Do not directly solder the cell or pierce it with a nail or other sharp object.
4.Do not turn over battery. Keep it from strike, throw, tread or bending.
5.Do not make battery short-circuited, in order to avoid from danger incurring or battery damage.
6.Discarded battery should be well disposed. Do not throw it into the fire or water.

FAQ:

Q1.Do you have any MOQ limit for lithium battery?
A: No MOQ.
Q2. Are the batteries come with bus bars+bolts?

A: Yes, it comes with. We can Laser weld screw stud or nut stud per your needs. Normally, one battery will come with 1pc busbar and 2pcs bolts.
Q3.Do you have the used batteries?
A: Sorry, no, our batteries are all brand new.
Q4. How to proceed an order for lithium ion battery?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5. Can we sign a secrecy agreement if we wanna build a long-term business relationship?
A: Sure, we respect clients requirements, will bring more benefit to you.
Q6:Which shipping method you usually take?
A: Train/Sea DDP, Express, We can also ship with your own shipping agent.
Q7: How do I know whether you've shipped my order or not?
A: Tracking No.will be offered as soon as your order be shipped out. Before that, our sales will be there to check the packing status, photo of the order and let you know the detail shipment information.

Contact us: Wechat/WhatsApp: +8614704451321
